Agilent HDSP-H571, HDSP-H573

5 x 7 General Purpose Dot Matrix Displays

53.2 mm (2.09 Inch) Package

Data Sheet

Features

鈥?5 x 7 Dot matrix

鈥?Dot diameter 5.0 mm

鈥?Dot pitch 7.62 mm

Description

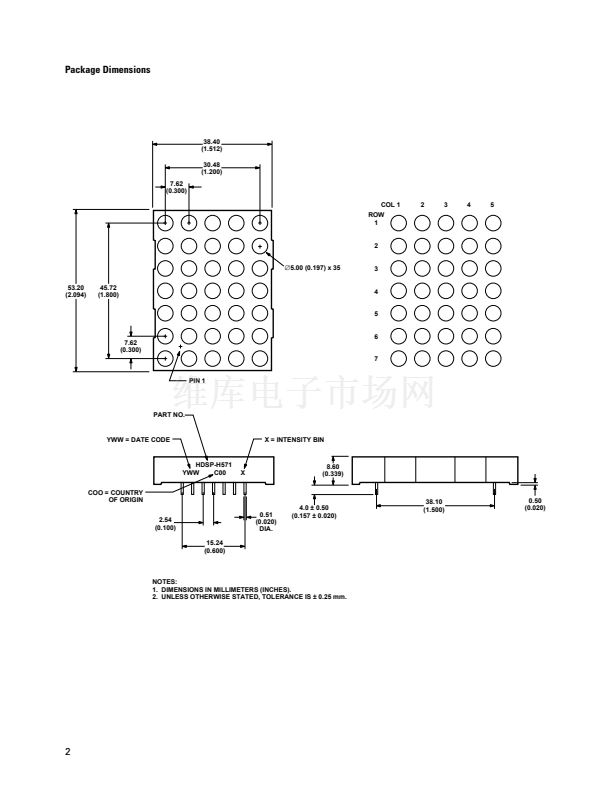

This display comprises 7 rows by 5

columns of 5.0 mm diameter dots

on a pitch of 7.62 mm. The device

is available in common row cathode

Device Selection Guide

HDSP-H571

HDSP-H573

Description

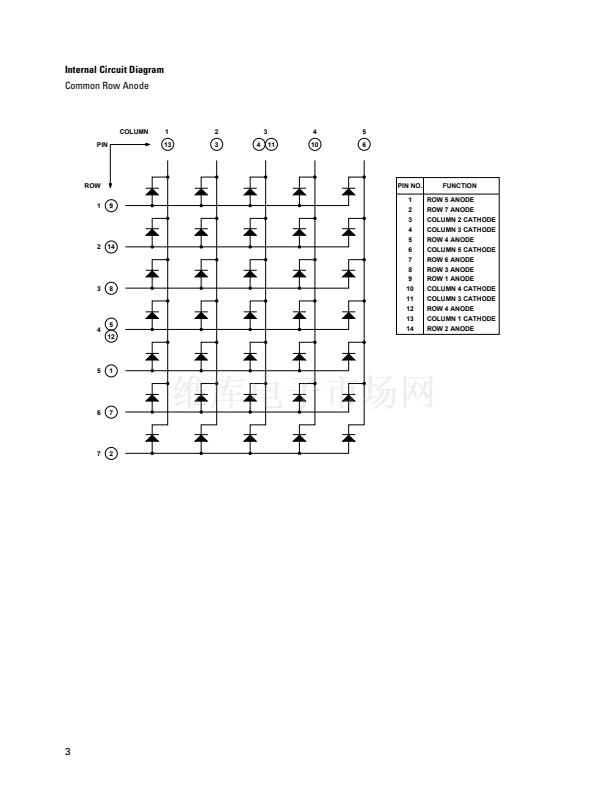

Common Row Anode

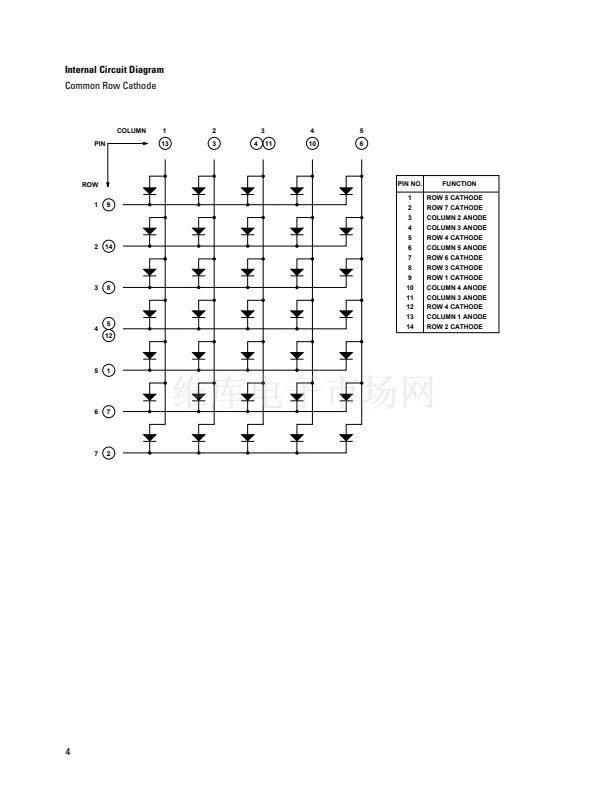

Common Row Cathode

and common row anode

configurations. The displays

come in black face paint. Each

dot has high efficiency red.

鈥?High Efficiency Red (HER)

鈥?Black face paint

Part Numbering System

HDSP - X X X X

Device Configuration/Color

[1]

1: Common Row Anode

3: Common Row Cathode

Character Height/Device Configuration

[1]

7: 2.0 to 2.99 inch Height, Common Row Cathode

(for HDSP-Sxxx and Mxxx Series only)

Package Configuration

[1]

5: 5 x 7 Dot Matrix

Package Type/Color

[1]

Refer to Respective Datasheet

Note:

1. For codes not listed in the figure above, please refer to the respective datasheet or

contact your nearest Agilent representative for details.

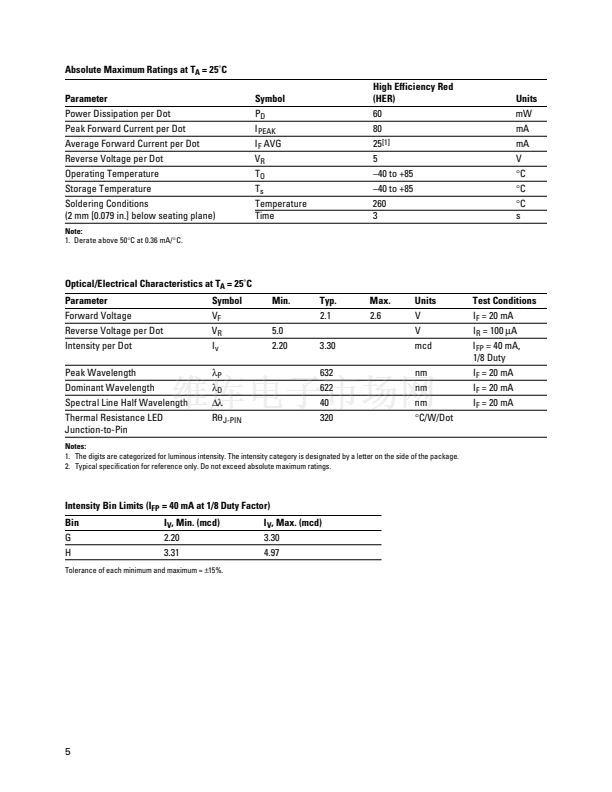

制造商
Avago Technologies
產品種類
LED 顯示器和配件
顯示器類型
5 x 7 Dot Matrix
數位數量
1
照明顏色
Red
波長
622 nm
封裝
Tube
光強度
3300 ucd
工廠包裝數量
150
