Agilent HDSP-S5xE, HDSP-S5xG,

HDSP-B5xZ Series 91.44 mm (3.6 inch)

General Purpose 5 x 7 Dot Matrix

Alphanumeric Displays

Data Sheet

Features

鈥?5 x 7 Dot matrix font

鈥?Stackable horizontally

鈥?Pin-out

鈥?76.2 mm (3.0 in.) Dual-In-Line

(DIP) leads on 5.08 mm (0.2 in.)

centers

The Bi-color display consists of

GaP Red and GaP Green colors.

These parts are subjected to Out-

going Quality Assurance (OQA)

inspection with an AQL of

0.065% for functional and visual/

cosmetic defects.

鈥?Choice of colors

鈥?Single color: red or green

鈥?Bi-color: red and green

鈥?Face paint color: black

鈥?Design flexibility

鈥?Common row anode or

Common row cathode

鈥?Categorized:

鈥?Single color: luminous intensity

鈥?Bi-Color: luminance

鈥?Green categorized for color

Applications

鈥?Suitable for indoor use

鈥?Not recommended for industrial

applications, i.e. operating

temperature requirements

exceeding 85擄C or below 鈥?5擄C

鈥?Extreme temperature cycling not

recommended

[1]

Description

These displays have a 91.44 mm

(3.6 inch) character height. The

devices are available in either

common row anode or common row

cathode configurations. The

displays come in only black face

paint and are available in a choice

of GaP Red or GaP Green colors.

Devices

GaP Red GaP Green

HDSP-

S53E

S53G

S58E

S58G

B53Z

B58Z

Description

91.44 mm Black Surface Common Row Anode

91.44 mm Black Surface Common Row Cathode

91.44 mm Black Surface Bi-Color Common Row Anode

91.44 mm Black Surface Bi-Color Common Row Cathode

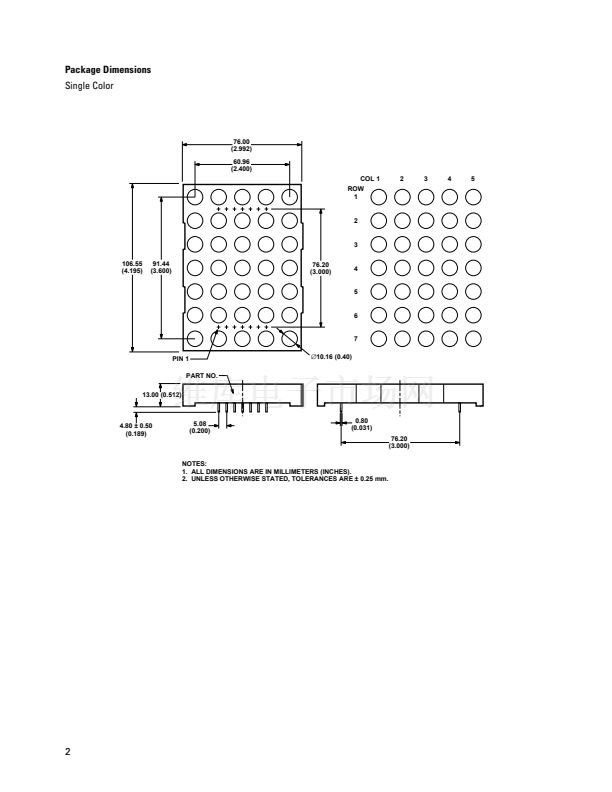

Note:

1. For details, please contact your local Agilent components sales office or an authorized distributor.
