5082-7623 Datasheet

  • 5082-7623

  • 7.6 mm (0.3 inch) Seven Segment Displays

  • 321.61KB

  • 8頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

7.6 mm (0.3 inch)/10.9 mm
(0.43 inch) Seven Segment
Displays
Technical Data
5082-761X Series
5082-762X Series
5082-765X Series
5082-766X Series
5082-773X Series
5082-7740
5082-775X Series
5082-7760
HDSP-360X Series
HDSP-460X Series
HDSP-E15X Series
Features
鈥?Industry Standard Size
鈥?Industry Standard Pinout
7.62 mm (0.300 inch) DIP
Leads on 2.54 mm
(0.100 inch) Centers
鈥?/div>
Choice of Colors
Red, AlGaAs Red, High
Efficiency Red, Yellow, Green
鈥?Excellent Appearance
Evenly Lighted Segments
Gray Package Gives Optimum
Contrast
鹵
50擄 Viewing Angle
鈥?/div>
Design Flexibility
Common Anode or
Common Cathode
Single Digits
Left or Right Hand Decimal
Point
鹵
1. Overflow Character
鈥?Categorized for Luminous
Intensity
Yellow and Green Categorized
for Color
Use of Like Categories Yields a
Uniform Display
鈥?High Light Output
鈥?High Peak Current
鈥?Excellent for Long Digit
String Multiplexing
鈥?Intensity and Color
Selection Available
See Intensity and Color
Selected Displays Data Sheet
鈥?Sunlight Viewable AlGaAs
Description
The 7.6 mm (0.3 inch) and 10.9
mm (0.43 inch) LED seven
segment displays are designed for
viewing distances up to 3 metres
(10 feet) and 5 metres (16 feet).
These devices use an industry
standard size package and
pinouts. All devices are available
as either common anode or
common cathode.
Devices
Red
5082-
7730
7731
7740
7736
7750
7751
7760
7756
E150
E151
E153
E156
AlGaAs
[1]
Red HDSP-
HER
[1]
5082-
7610
7611
7613
7616
7650
7651
7653
7656
Yellow
5082-
7620
7621
7623
7626
7660
7661
7663
7666
Green
HDSP-
3600
3601
3603
3606
4600
4601
4603
4606
Description
7.6 mm Common Anode Left Hand Decimal
7.6 mm Common Anode Right Hand Decimal
7.6 mm Common Cathode Right Hand Decimal
7.6 mm Universal
鹵
1. Overflow Right Hand Decimal
[2]
10.9 mm Common Anode Left Hand Decimal
10.9 mm Common Anode Right Hand Decimal
10.9 mm Common Cathode Right Hand Decimal
10.9 mm Universal
鹵
1. Overflow Right Hand Decimal
[2]

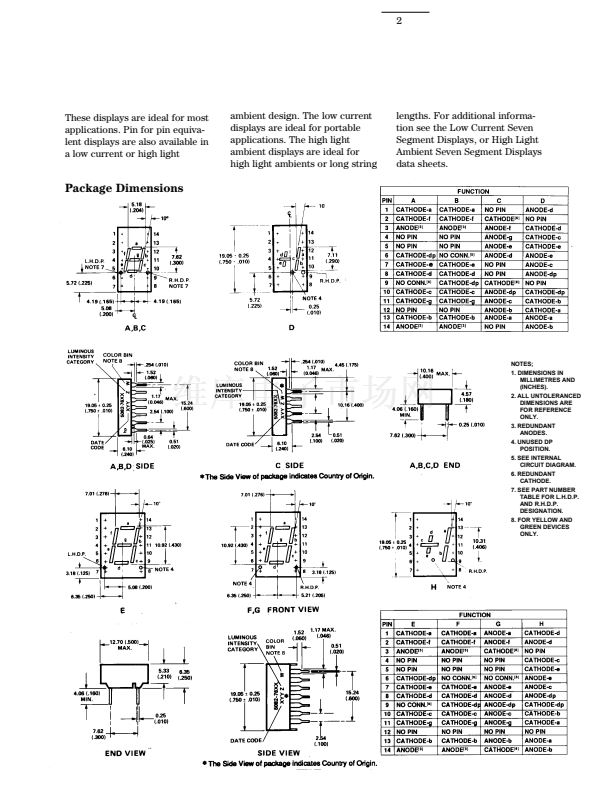

Package
Drawing
A
B
C
D
E
F
G
H

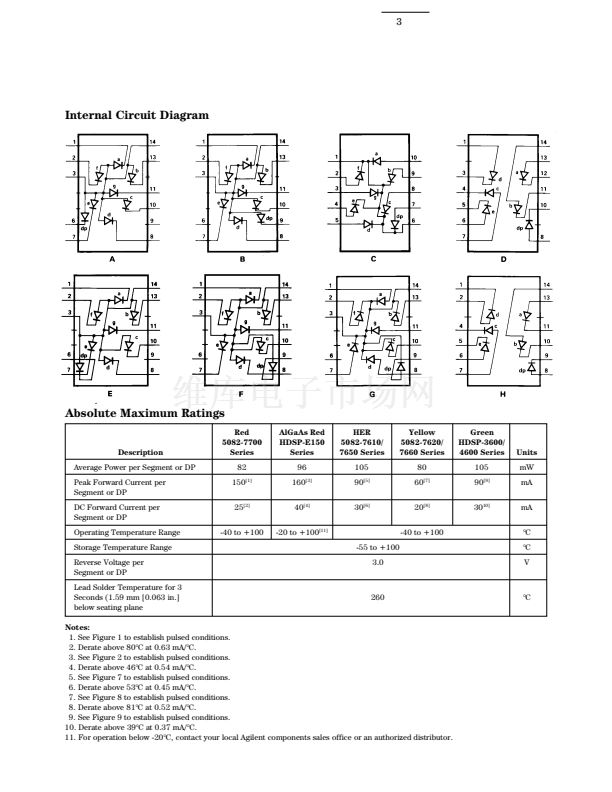

Notes:
1. These displays are recommended for high ambient light operation. Please refer to the HDSP-E10X AlGaAs and HDSP-335X HER data
sheet for low current operation.
2. Universal pinout brings the anode and cathode of each segment鈥檚 LED out to separate pins. See internal diagram D.
3. Universal pinout brings the anode and cathode of each segment鈥檚 LED out to separate pins. See internal diagram H.

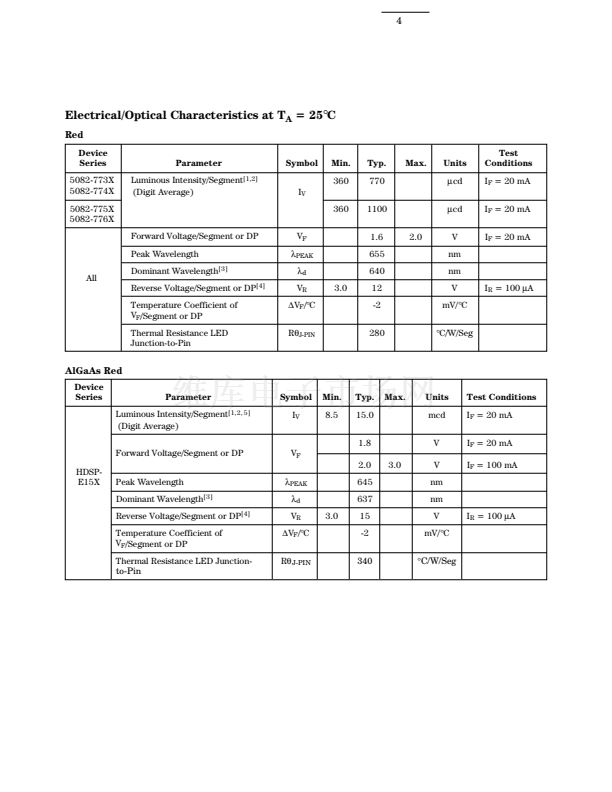

5082-7623 產品屬性

  • 5082-76xx, HDSP-360x/460x/E15x

  • 200

  • 光電元件

  • 顯示器模塊 - LED 字符與數字

  • -

  • 1

  • 0.75" L x 0.40" W x 0.18" H（19.1mm x 10.2mm x 4.6mm）

  • 0.30"（7.62mm）

  • 7 段顯示

  • 共陰極

  • 黃

  • 2.2V

  • 5mA

  • 0.62mcd

  • 583nm

  • 80mW

  • 14-DIP（0.300"，7.62mm），10 引線
