HD74LV393ARP Datasheet

  • HD74LV393ARP

  • COUNTER|UP|4-BIT BINARY|LV-CMOS|SOP|14PIN|PLASTIC

  • 15頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

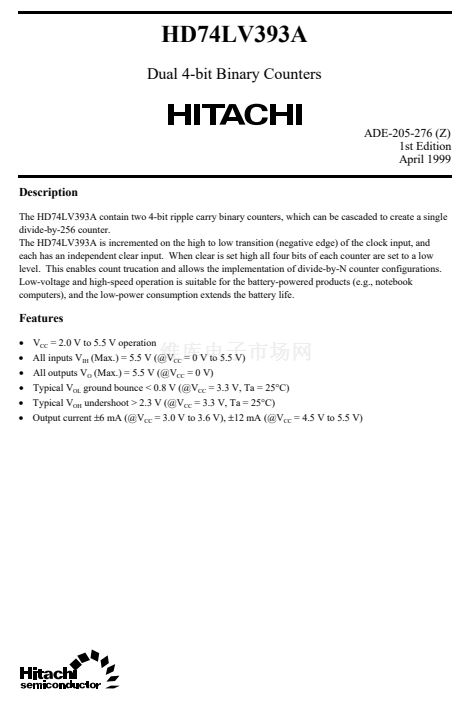

HD74LV393A
Dual 4-bit Binary Counters
ADE-205-276 (Z)
1st Edition
April 1999
Description
The HD74LV393A contain two 4-bit ripple carry binary counters, which can be cascaded to create a single
divide-by-256 counter.
The HD74LV393A is incremented on the high to low transition (negative edge) of the clock input, and
each has an independent clear input. When clear is set high all four bits of each counter are set to a low
level. This enables count trucation and allows the implementation of divide-by-N counter configurations.
Low-voltage and high-speed operation is suitable for the battery-powered products (e.g., notebook
computers), and the low-power consumption extends the battery life.
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
V
CC
= 2.0 V to 5.5 V operation
All inputs V
IH
(Max.) = 5.5 V (@V
CC
= 0 V to 5.5 V)
All outputs V
O
(Max.) = 5.5 V (@V
CC
= 0 V)
Typical V
OL
ground bounce < 0.8 V (@V
CC
= 3.3 V, Ta = 25擄C)
Typical V
OH
undershoot > 2.3 V (@V
CC
= 3.3 V, Ta = 25擄C)
Output current
鹵6
mA (@V
CC
= 3.0 V to 3.6 V),
鹵12
mA (@V
CC
= 4.5 V to 5.5 V)
