HD74HC77RP Datasheet

  • HD74HC77RP

  • LATCH|SINGLE|4-BIT|HC-CMOS|SOP|14PIN|PLASTIC

  • 9頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

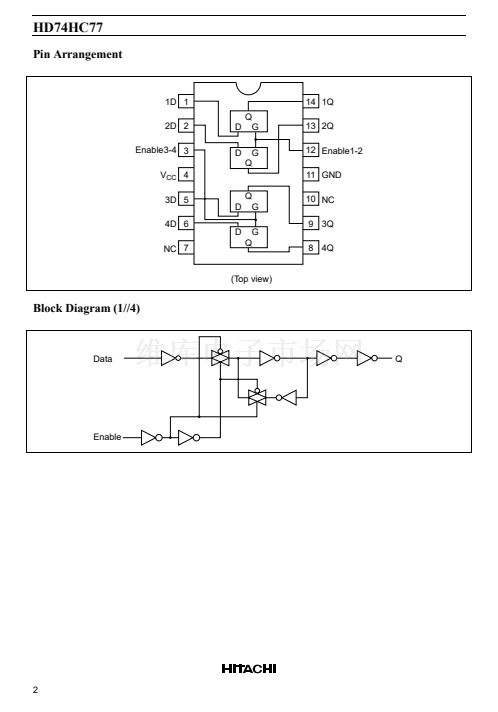

HD74HC77
4-bit Bistable Latch
Description
The HD74HC77 is ideally suited for use as temporary storage for binary information between processing
units and input/output or indicator units. Information present at a data (D) input is transferred to the Q
output when the enable (G) is high and the Q output will follow the data input as long as the enable remains
high. When the enable goes low the information (that was present at the data input at the time the transition
occurred) is retained at the Q output until the enable is permitted to go high.
Features
鈥?/div>
High Speed Operation: t
pd
(D to Q) = 12 ns typ (C
L
= 50 pF)
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
High Output Current: Fanout of 10 LSTTL Loads
Wide Operating Voltage: V
CC
= 2 to 6 V
Low Input Current: 1 碌A(chǔ) max
Low Quiescent Supply Current: I
CC
(static) = 2 碌A(chǔ) max (Ta = 25擄C)
Function Table
Inputs
D
L
H
X
G
H
H
L
Output
Q
L
H
No change
