HD74HC646/HD74HC648

Octal Bus Transceivers/Registers with Multiplexed 3-state outputs

Description

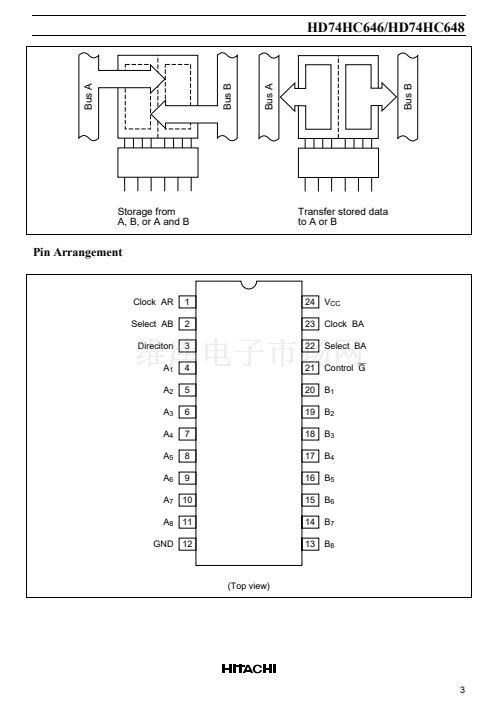

Six control inputs enable this device to be used as a latched transceiver, unlatched transceiver or a

combination of both. As a latched transceiver, data from one bus is stored for later retrieval by the other

bus. Alternately real time bus data (unlatched) may be directly transferred from one bus to another.

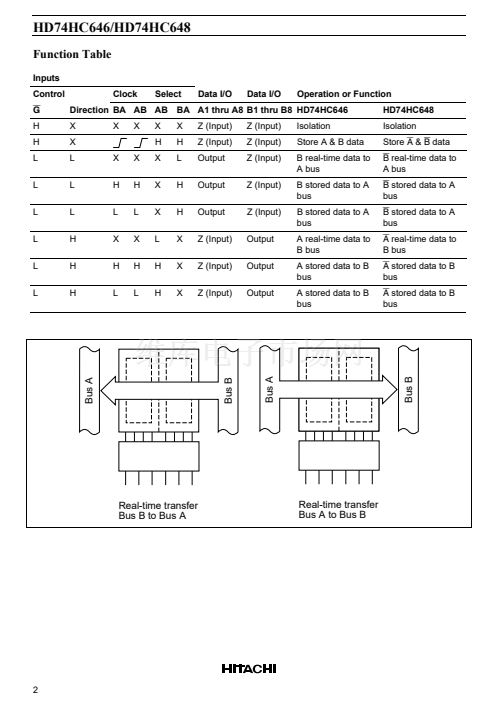

Circuit operation is determined by the Control

Direction, Clock AB, Clock BA, Select AB, Select BA

control inputs. The enable input, Contorl

controls whether any bus outputs are enabled. The direction

control Direction (DIR), determines which bus is enabled, and hence the direction data flows: The Select

AB, Select BA inputs cotrol whether the latched data (stored in D type flip-flops), or the bus data (from

other bus input pins) is transferred. Each set of flip-flops has its own clock Clock AB and Clock BA, for

storing data. Data is latched on the rising edge of the clock.

Features

鈥?/div>

High Speed Operation: t

(Bus to Bus) = 14 ns typ (C

= 50 pF)

High Output Current: Fanout of 15 LSTTL Loads

Wide Operating Voltage: V

= 2 to 6 V

Low Input Current: 1 碌A(chǔ) max

Low Quiescent Supply Current: I

(static) = 4 碌A(chǔ) max (Ta = 25擄C)
