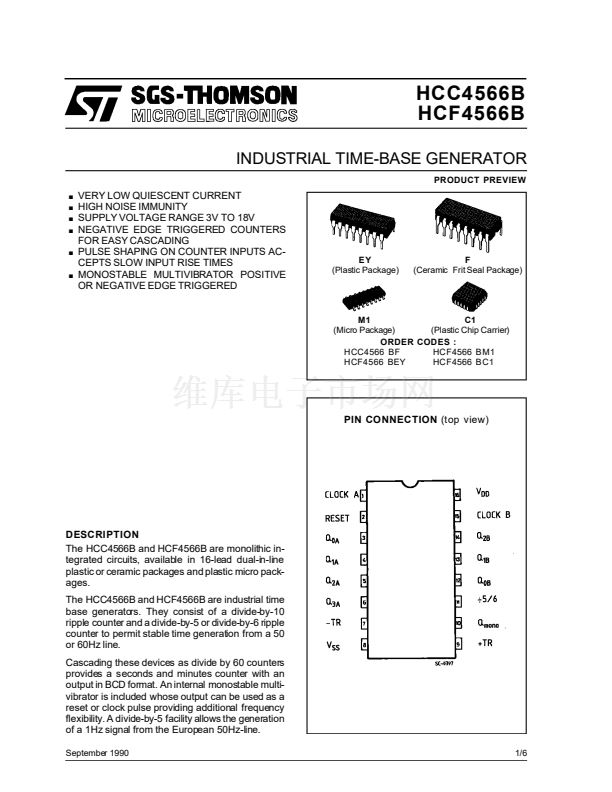

HCC4566B
HCF4566B
INDUSTRIAL TIME-BASE GENERATOR
.
.
.
.
.
.
PRODUCT PREVIEW
VERY LOW QUIESCENT CURRENT
HIGH NOISE IMMUNITY
SUPPLY VOLTAGE RANGE 3V TO 18V
NEGATIVE EDGE TRIGGERED COUNTERS
FOR EASY CASCADING
PULSE SHAPING ON COUNTER INPUTS AC-
CEPTS SLOW INPUT RISE TIMES
MONOSTABLE MULTIVIBRATOR POSITIVE
OR NEGATIVE EDGE TRIGGERED

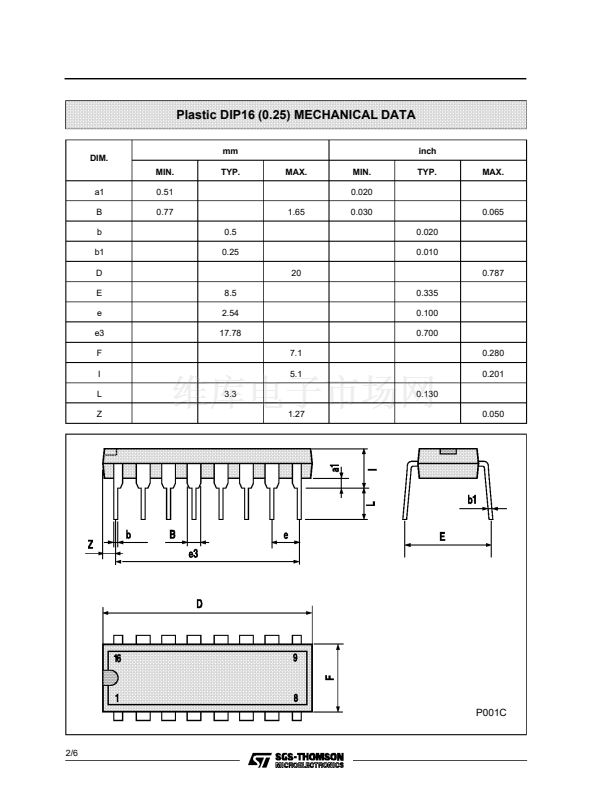

EY
(Plastic Package)

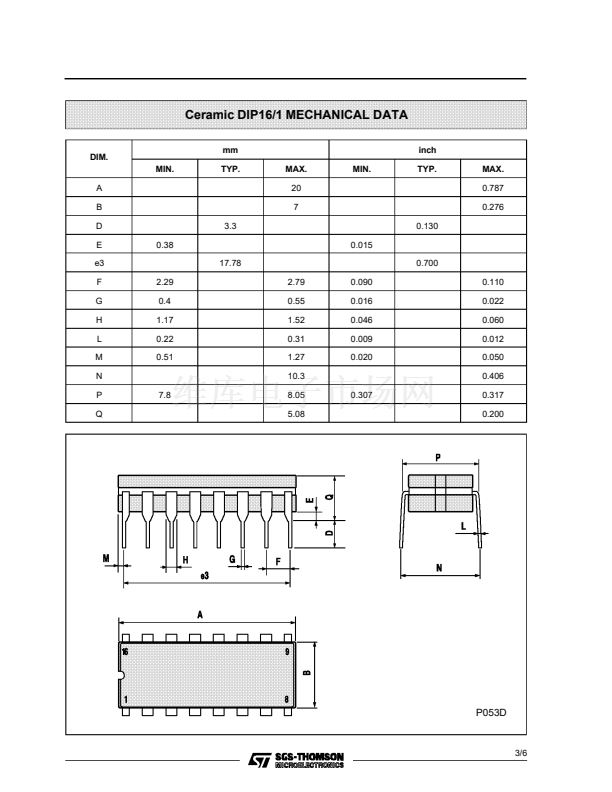

F
(Ceramic Frit Seal Package)

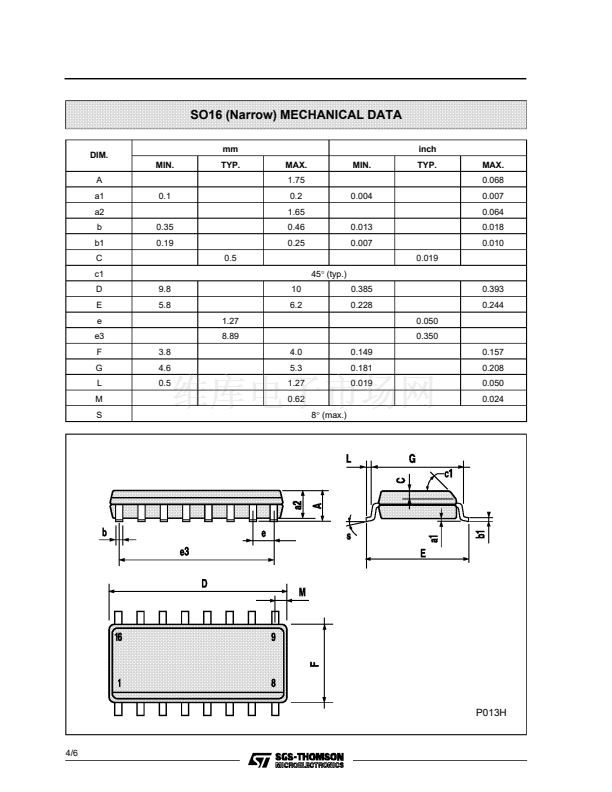

M1

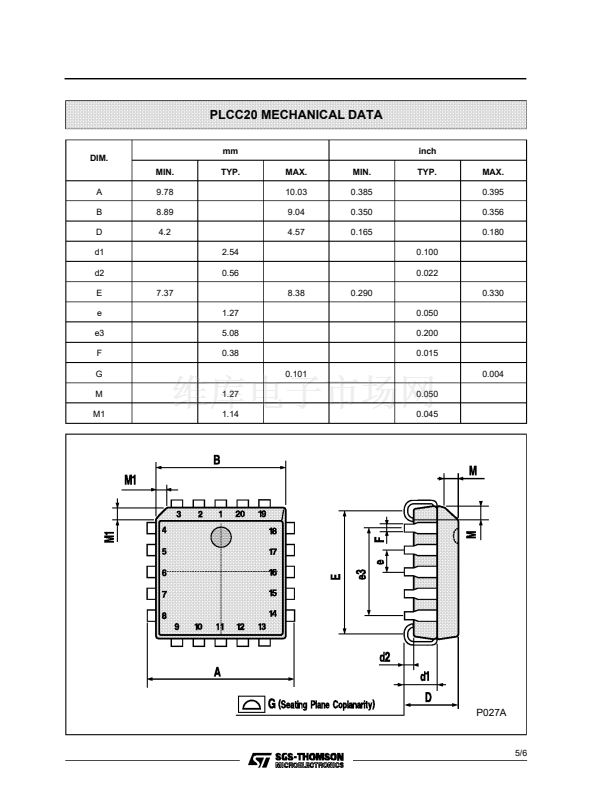

C1
(Micro Package)
(Plastic Chip Carrier)
ORDER CODES :
HCC4566 BF
HCF4566 BM1
HCF4566 BEY
HCF4566 BC1
PIN CONNECTION
(top view)
DESCRIPTION
The HCC4566B and HCF4566B are monolithic in-
tegrated circuits, available in 16-lead dual-in-line
plastic or ceramic packages and plastic micro pack-
ages.
The HCC4566B and HCF4566B are industrial time
base generators. They consist of a divide-by-10
ripple counter and a divide-by-5 or divide-by-6 ripple
counter to permit stable time generation from a 50
or 60Hz line.
Cascading these devices as divide by 60 counters
provides a seconds and minutes counter with an
output in BCD format. An internal monostable multi-
vibrator is included whose output can be used as a
reset or clock pulse providing additional frequency
flexibility. A divide-by-5 facility allows the generation
of a 1Hz signal from the European 50Hz-line.
September 1990
1/6
