HCC4098BF Datasheet

  • HCC4098BF

  • DUAL MONOSTABLE MULTIVIBRATOR

  • 325.84KB

  • 14頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

HCC/HCF4098B
DUAL MONOSTABLE MULTIVIBRATOR
.
.
.
.
.
.
.
.
.
.
.
RETRIGGERABLE/RESETTABLE CAPABILITY
TRIGGER AND RESET PROPAGATION DE-
LAYS INDEPENDENT OF R
X
, C
X
TRIGGERING FROM LEADING OR TRAILING
EDGE
Q AND Q BUFFERED OUTPUTS AVAILABLE
SEPARATE RESETS
WIDE RANGE OF OUTPUT-PULSE WIDTHS
QUIESCENT CURRENT SPECIFIED TO 20V
FOR HCC DEVICE
5V, 10V, AND 15V PARAMETRIC RATINGS
INPUT CURRENT OF 100nA AT 18V AND
25擄C FOR HCC DEVICE
100% TESTED FOR QUIESCENT CURRENT
MEETS ALL REQUIREMENTS OF JEDEC TEN-
TATIVE STANDARD N擄 13A, 鈥漇TANDARD
SPECIFICATIONS FOR DESCRIPTION OF 鈥滲鈥?/div>
SERIES CMOS DEVICES鈥?/div>
EY
(Plastic Package)
F
(Ceramic Frit Seal Package)
M1
(Micro Package)
C1
(Plastic Chip Carrier)
ORDER CODES :
HCC4098BF
HCF4098BM1
HCF4098BEY
HCF4098BC1
DESCRIPTION
The
HCC4098B
(extended temperature range) and
HCF4098B
(intermediate temperature range) are
monolithic integrated circuit, available in 16-lead
dual in-line dual in-line plastic or ceramic package
and plastic micropackage. The
HCC/HCF4098B
dual monostable multivibrator provides stable retrig-
gerable/resettable one-shot operation for any fixed-
voltage timing application. An external resistor (R
X
)
and an external capacitor (C
X
) control the timing for
the circuit. Adjustment of R
X
and C
X
provides a wide
range of output pulse widths from the Q and Q ter-
minals. The time delay from trigger input to output
transition (trigger propagation delay) and the time
delay from reset input to output transition (reset pro-
pagation delay) are independent of R
X
and C
X
.
Leading-edge-triggering (+ TR) and trailing-edge-
triggering (鈥?TR) inputs are provided for triggering
from either edge of an input pulse. An unused + TR
input should be tied to V
SS
. An unused 鈥?TR input
should be tied to V
DD
. A RESET (on low level) is pro-
vided for immediate termination of the output pulse
or to prevent output pulses when power is turned on.
An unused RESET input should be tied to V
DD
. How-
ever, if an entire section of the
4098B
is not used,
its RESET should be tied to V
SS

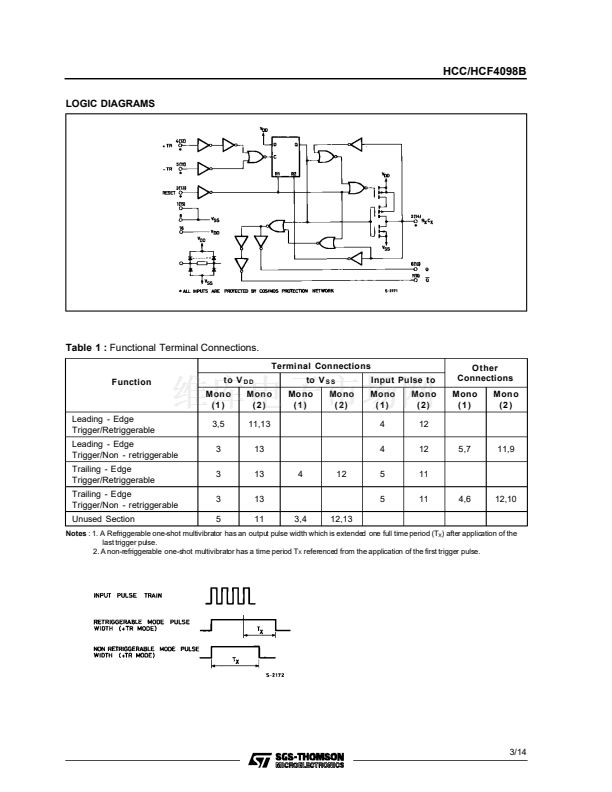

. See table I. In nor-
mal operation the circuit triggers (extends the output
June 1989
PIN CONNECTIONS
1/14
