HCC4007UB Datasheet

  • HCC4007UB

  • DUAL COMPLEMENTARY PAIR PLUS INVERTER

  • 14頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

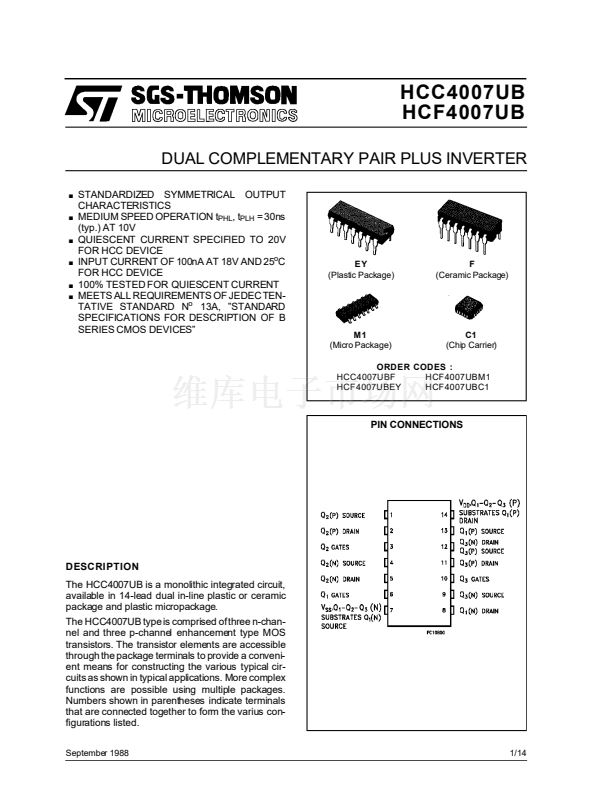

HCC4007UB
HCF4007UB
DUAL COMPLEMENTARY PAIR PLUS INVERTER
.
.
.
.
.
.
STANDARDIZED SYMMETRICAL OUTPUT
CHARACTERISTICS
MEDIUM SPEED OPERATION t
PHL
, t
PLH
= 30ns
(typ.) AT 10V
QUIESCENT CURRENT SPECIFIED TO 20V
FOR HCC DEVICE
INPUT CURRENT OF 100nA AT 18V AND 25
o
C
FOR HCC DEVICE
100% TESTED FOR QUIESCENT CURRENT
MEETS ALL REQUIREMENTS OF JEDEC TEN-
TATIVE STANDARD N
o
13A, 鈥漇TANDARD
SPECIFICATIONS FOR DESCRIPTION OF B
SERIES CMOS DEVICES鈥?/div>
EY
(Plastic Package)
F
(Ceramic Package)
M1
(Micro Package)
C1
(Chip Carrier)
ORDER CODES :
HCC4007UBF
HCF4007UBM1
HCF4007UBEY
HCF4007UBC1
PIN CONNECTIONS
DESCRIPTION
The HCC4007UB is a monolithic integrated circuit,
available in 14-lead dual in-line plastic or ceramic
package and plastic micropackage.
The HCC4007UB type is comprised of three n-chan-
nel and three p-channel enhancement type MOS
transistors. The transistor elements are accessible
through the package terminals to provide a conveni-

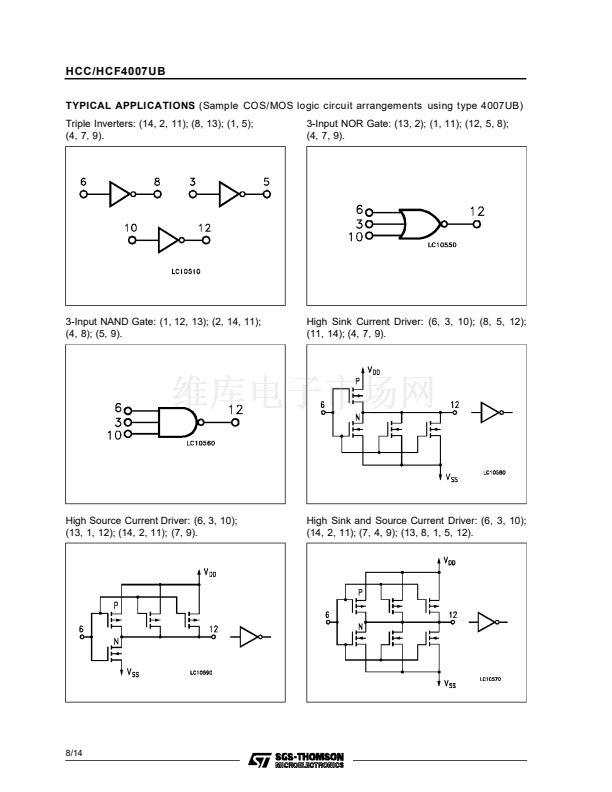

ent means for constructing the various typical cir-
cuits as shown in typical applications. More complex
functions are possible using multiple packages.
Numbers shown in parentheses indicate terminals
that are connected together to form the varius con-
figurations listed.
September 1988
1/14
