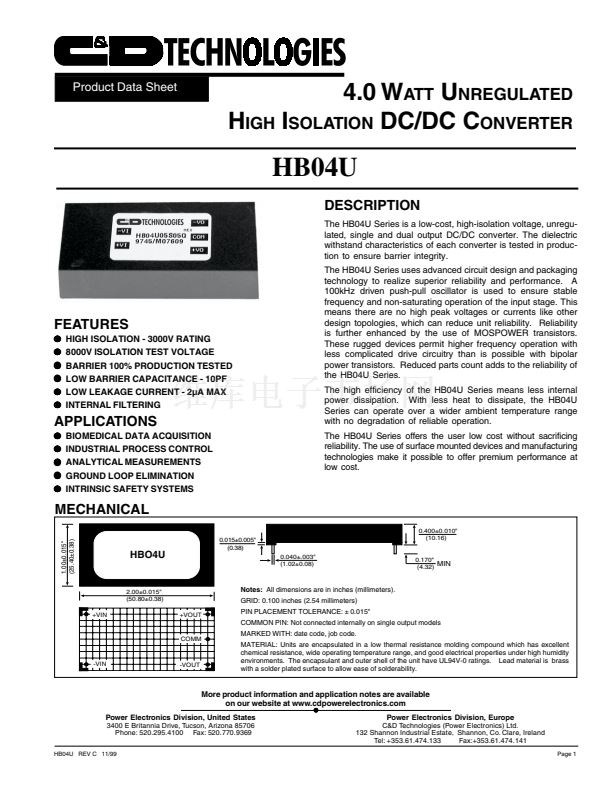

Product Data Sheet
4.0 W
ATT
U
NREGULATED
H
IGH
I
SOLATION
DC/DC C
ONVERTER
HB04U
DESCRIPTION
The HB04U Series is a low-cost, high-isolation voltage, unregu-
lated, single and dual output DC/DC converter. The dielectric
withstand characteristics of each converter is tested in produc-
tion to ensure barrier integrity.
The HB04U Series uses advanced circuit design and packaging
technology to realize superior reliability and performance. A
100kHz driven push-pull oscillator is used to ensure stable
frequency and non-saturating operation of the input stage. This
means there are no high peak voltages or currents like other
design topologies, which can reduce unit reliability. Reliability
is further enhanced by the use of MOSPOWER transistors.
These rugged devices permit higher frequency operation with
less complicated drive circuitry than is possible with bipolar
power transistors. Reduced parts count adds to the reliability of
the HB04U Series.
The high efficiency of the HB04U Series means less internal
power dissipation. With less heat to dissipate, the HB04U
Series can operate over a wider ambient temperature range
with no degradation of reliable operation.
The HB04U Series offers the user low cost without sacrificing
reliability. The use of surface mounted devices and manufacturing
technologies make it possible to offer premium performance at
low cost.
FEATURES
G
G
G
G
G
G
G
G
G
G
G
HIGH ISOLATION - 3000V RATING
8000V ISOLATION TEST VOLTAGE
BARRIER 100% PRODUCTION TESTED
LOW BARRIER CAPACITANCE - 10PF
LOW LEAKAGE CURRENT - 2碌A(chǔ) MAX
INTERNAL FILTERING
APPLICATIONS
BIOMEDICAL DATA ACQUISITION
INDUSTRIAL PROCESS CONTROL
ANALYTICAL MEASUREMENTS
GROUND LOOP ELIMINATION
INTRINSIC SAFETY SYSTEMS

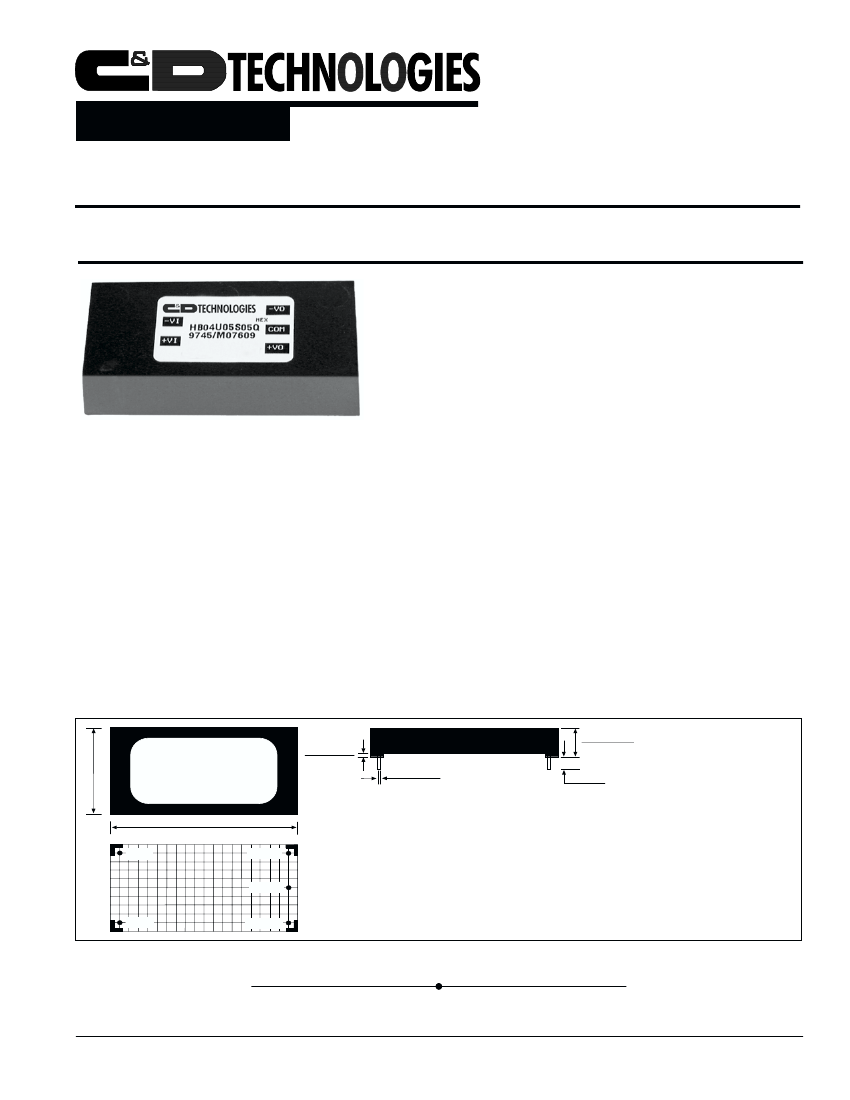

MECHANICAL
1.00鹵0.015"
(25.40鹵0.38)
0.015鹵0.005"
(0.38)
0.400鹵0.010"
(10.16)
0.040鹵.003"
(1.02鹵0.08)
HBO4U
0.170"
MIN
(4.32)
2.00鹵0.015"
(50.80鹵0.38)
+VIN
+VOUT
Notes:
All dimensions are in inches (millimeters).
GRID: 0.100 inches (2.54 millimeters)
PIN PLACEMENT TOLERANCE: 鹵 0.015"
COMMON PIN: Not connected internally on single output models
COMM
MARKED WITH: date code, job code.
MATERIAL: Units are encapsulated in a low thermal resistance molding compound which has excellent
chemical resistance, wide operating temperature range, and good electrical properties under high humidity
environments. The encapsulant and outer shell of the unit have UL94V-0 ratings. Lead material is brass
with a solder plated surface to allow ease of solderability.
-VIN
-VOUT
More product information and application notes are available
on our website at www.cdpowerelectronics.com
Power Electronics Division, United States
3400 E Britannia Drive, Tucson, Arizona 85706
Phone: 520.295.4100 Fax: 520.770.9369
HB04U REV C 11/99
Power Electronics Division, Europe
C&D Technologies (Power Electronics) Ltd.
132 Shannon Industrial Estate, Shannon, Co. Clare, Ireland
Tel: +353.61.474.133
Fax:+353.61.474.141
Page 1
