High Collector-emitter Voltage Type
Photocoupler
H11D1 Series
Features
Current transfer ratio
( CTR : MIN. 20% at I
F
= 10mA, V
CE
= 10V )
High isolation voltage between input and output
( V
ISO
= 5,000 Vrms )
High collector-emitter breakdown voltage
( BV
CER
= 300V)
UL approved ( No. E113898 )
VDE approved ( No. 094722 )
CSA approve in progress
Options Available :
- Leads with 0.4" (10.16mm) Spacing (M Type)
- Lead Bends for Surface Mounting (S Type)
- Tape and Reel of Type I for SMD (Add "-TA" Suffix)
- Tape and Reel of Type II for SMD (Add "-TA1" Suffix)
- VDE 0884 Approvals (Add "-V" Suffix)
Package Dimensions
Applications
1. Copy Machines
2. Interfacing and coupling systems of different potentials
and impedances
3. Monitor and detection circuits
4. Solid state relays
NOTES :
1. Year date code.
2. 2-digit work week.
3. Factory code shall be marked (Z Taiwan, Y Thailand).
4. All dimensions are in millimeters (inches).
5. Tolerance is 0.25mm (.010") unless otherwise noted.
6. Specifications are subject to change without notice.
Ordering Information
Part Number
H11D1
H11D1M
H11D1S
H11D1S-TA
H11D1S-TA1
H11D1-V
H11D1M-V
H11D1S-V
H11D1STA-V
H11D1STA1-V
Package
6-pin DIP
6-pin (leads with 0.4" spacing)
6-pin (lead bends for surface mount)
6-pin (tape and reel packaging of type I)
6-pin (tape and reel packaging of type II)
6-pin DIP
6-pin (leads with 0.4" spacing)
6-pin (lead bends for surface mount)
6-pin (tape and reel packaging of type I)
6-pin (tape and reel packaging of type II)
Safety Standard Approval
UL approved
CSA approve in progress
Application part
number
H11D1
VDE approved
H11D1
12-162

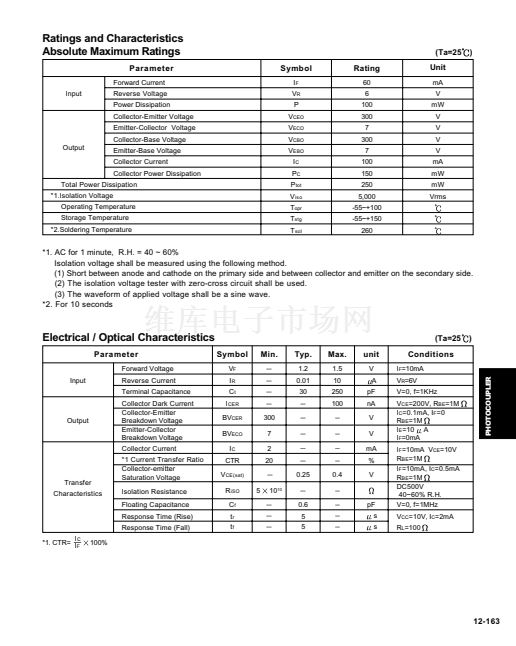

1
2
3
4
