GP2W2003YK Datasheet

  • GP2W2003YK

  • INFRARED DATA COMMUNICATION DEVICE

  • 9頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

GP2W2003YK/GP2W2004YK
GP2W2003YK/
GP2W2004YK
s
Features
1. Compliant with IrDA control
GP2W2003YK
: for peripheral Type 1
GP2W2004YK
: for peripheral Type 2
2. Low dissipation current
(Dissipation current at shut-down:MAX.1碌A(chǔ))
3. 4 Range of LED power control
4. Long distance (approx. 8m (Min. 5m)) wireless
communication at 75kbps data rate (Radiant
intensity=100mW/sr) (GP2W2003YK)
5. Wide viewing angle (Min. 1.5m,
鹵40藲)
wireless
communication at 75kbps data rate (GP2W2004YK)
6. Low power operation : 3.3V
7. Built-in envelope detector
8. By using assistance LED (SHARP
GL710),
able to use for
Host Type. (GP2W2003YK)
9. RESET function to recover the receiver sensitivity
10. Optimized interface to sharp peripheral engine, an
embedded communication controller for IrDA Control
IrDA Transceiver Module
Compliant with IrDA Control
s
Outline Dimensions
(Unit : mm)
17.5
14.0
(3.0)
7.0
6.55
(
蠁
5
6.05 (GP2W2003YK)
5.35 (GP2W2004YK)
(3.7)
3.1
.0)
(8.2)
4.5
1
2 3 4 5 6 7 8 9 10
11
0.45
P1.27
0.89
(2.08)
0.25
(1.25)
0.9
2.0
3.35
1
2
3
4
5
6
s
Applications
1. Personal Computers
2. Input devices for PC (mouse, keyboard, joy stick)
3. Amusement equipment
4. AV equipment
5. Universal controllers
AV
CC
SD
RESET
GND
V
CC
V
O
TXD
T
X
CNT1
9
T
X
CNT2
10
T
Xbias
11
LEDA
7
8
鉂圲nspecified
tolerance :
鹵0.3mm
鉂?
) : Reference dimensions
s
Absolute Maximum Ratings
Parameter
Supply voltage
Operating temperature
Storage temperature
*1
Peak forward LED current
Receiver data output current
*2
Soldering temperature
Symbol
V
CC
T
op
T
stg
I
FM
V
O
T
SOL
Rating
0 to 6.0
鈭?0
to 70
鈭?0
to 85
600
V
CC
260
(Ta=25擄C)
Unit
V
擄C
擄C
mA
V
擄C

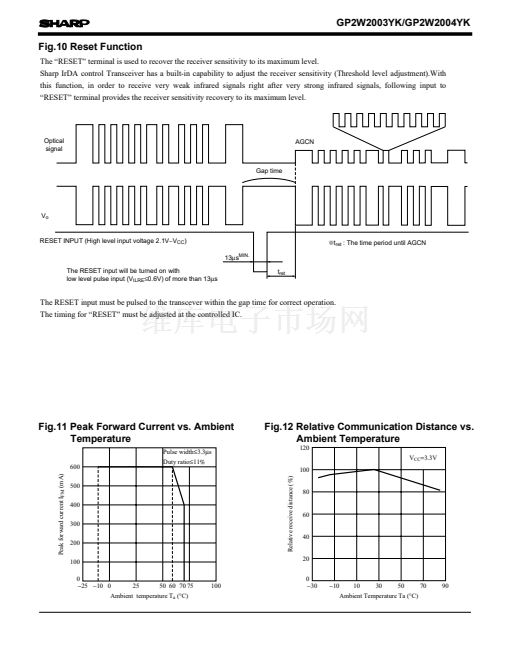

*1 Refer to Fig.11
*2 For MAX. 5s at the position of 1.3mm from the resin edge.
Notice
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
Internet Internet address for Electronic Components Group http://www.sharp.co.jp/ecg/
2.5
1.3
