GM71C(S)16400C/CL

4,194,304 WORDS x 4 BIT

CMOS DYNAMIC RAM

Description

The GM71C(S)16400C/CL is the new

generation dynamic RAM organized 4,194,304

words x 4 bit. GM71C(S)16400C/CL has

realized higher density, higher performance and

various functions by utilizing advanced CMOS

process technology. The GM71C(S)16400C/CL

offers Fast Page Mode as a high speed access

mode. Multiplexed address inputs permit the

GM71C(S)16400C/CL to be packaged in a

standard 300 mil 24(26) pin SOJ, and a standard

300 mil 24(26) pin plastic TSOP II. The package

size provides high system bit densities and is

compatible with widely available automated

testing and insertion equipment. System oriented

features include single power supply 5V+/-10%

tolerance, direct interfacing capability with high

performance logic families such as Schottky

TTL.

Features

* 4,194,304 Words x 4 Bit Organization

* Fast Page Mode Capability

* Single Power Supply (5V+/-10%)

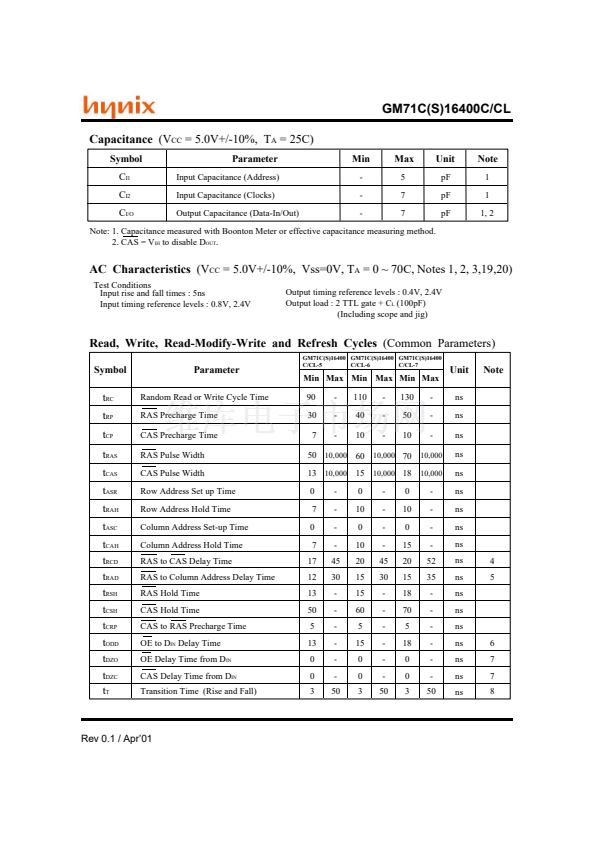

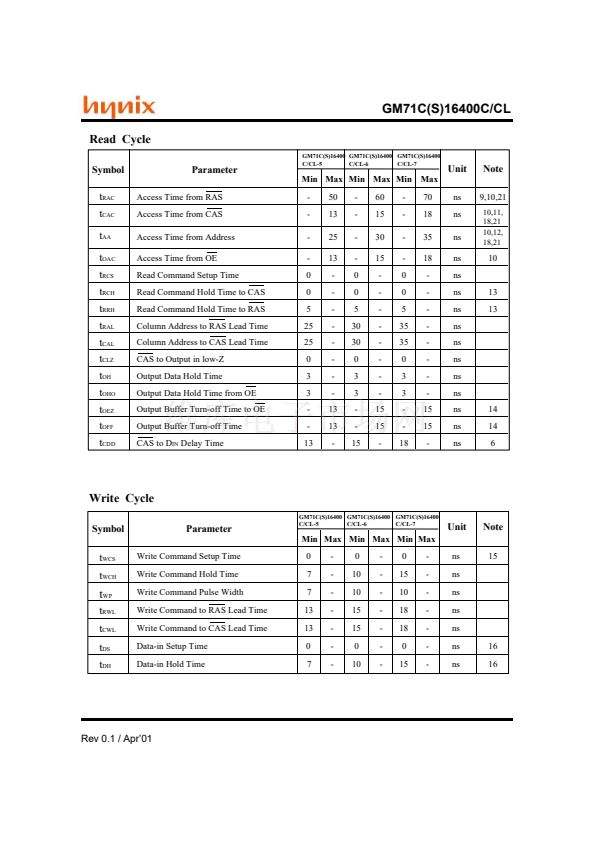

* Fast Access Time & Cycle Time

(Unit: ns)

t

RAC

t

CAC

GM71C(S)16400C/CL-5

GM71C(S)16400C/CL-6

GM71C(S)16400C/CL-7

50

60

70

13

15

18

t

RC

90

110

130

t

PC

35

40

45

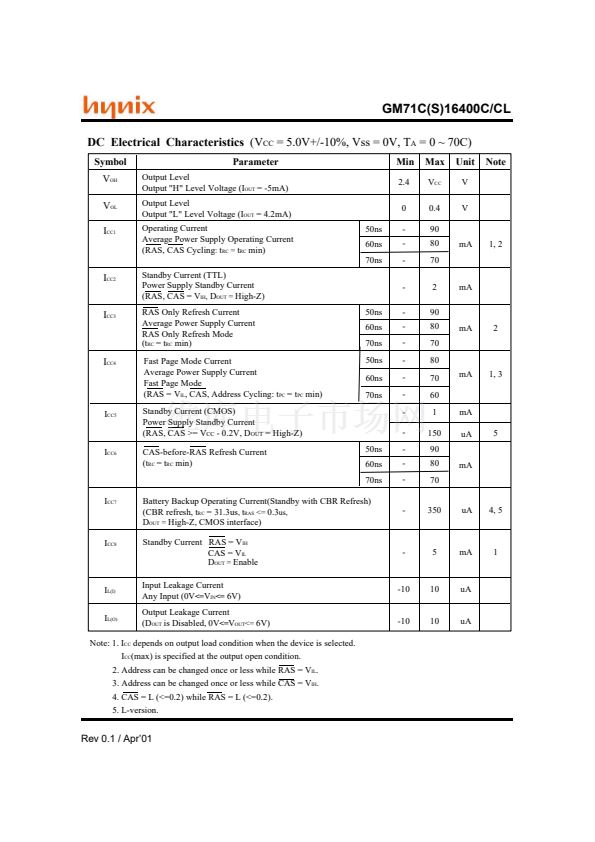

* Low Power

Active : 495/440/385mW (MAX)

Standby : 11mW (CMOS level : MAX)

: 0.83mW (L-version : MAX)

* RAS Only Refresh, CAS before RAS Refresh,

Hidden Refresh Capability

* All inputs and outputs TTL Compatible

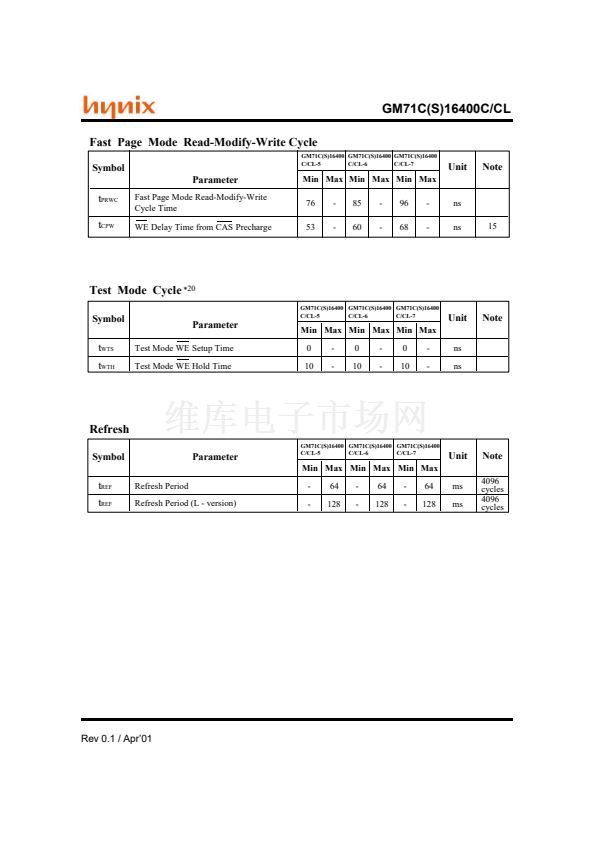

* 4096 Refresh Cycles/64ms

* 4096 Refresh Cycles/128ms(L-version)

* Battery backup operation (L-version)

* Test function : 16bit parallel test mode

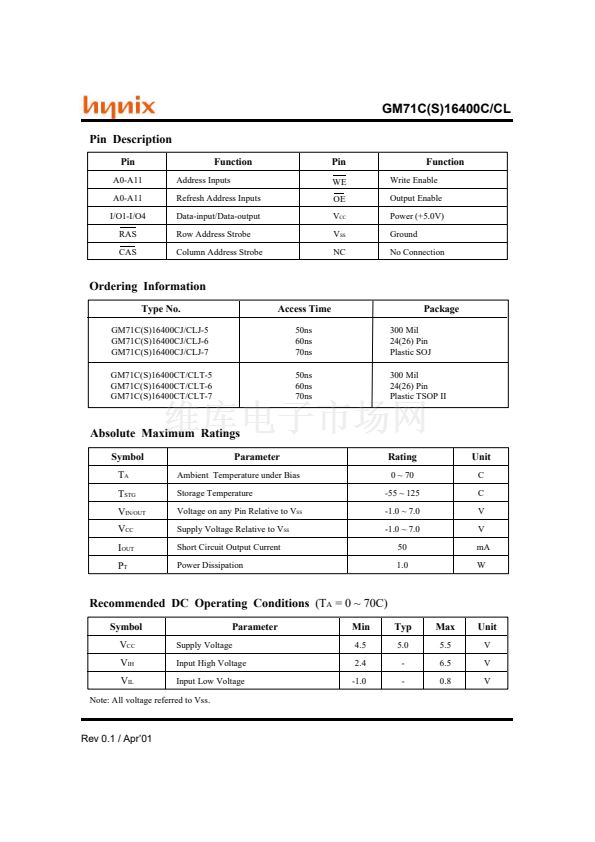

Pin Configuration

24(26) SOJ

V

CC

I/O1

I/O2

WE

RAS

A11

A10

A0

A1

A2

A3

V

CC

1

2

3

4

5

6

26

25

24

23

22

21

24(26) TSOP II

V

SS

I/O4

I/O3

CAS

OE

A9

A8

A7

A6

A5

A4

V

SS

V

CC

I/O1

I/O2

WE

RAS

A11

A10

A0

A1

A2

A3

V

CC

1

2

3

4

5

6

26

25

24

23

22

21

V

SS

I/O4

I/O3

CAS

OE

A9

A8

A7

A6

A5

A4

V

SS

8

9

10

11

12

13

19

18

17

16

15

14

8

9

10

11

12

13

19

18

17

16

15

14

(Top View)

Rev 0.1 / Apr鈥?1
