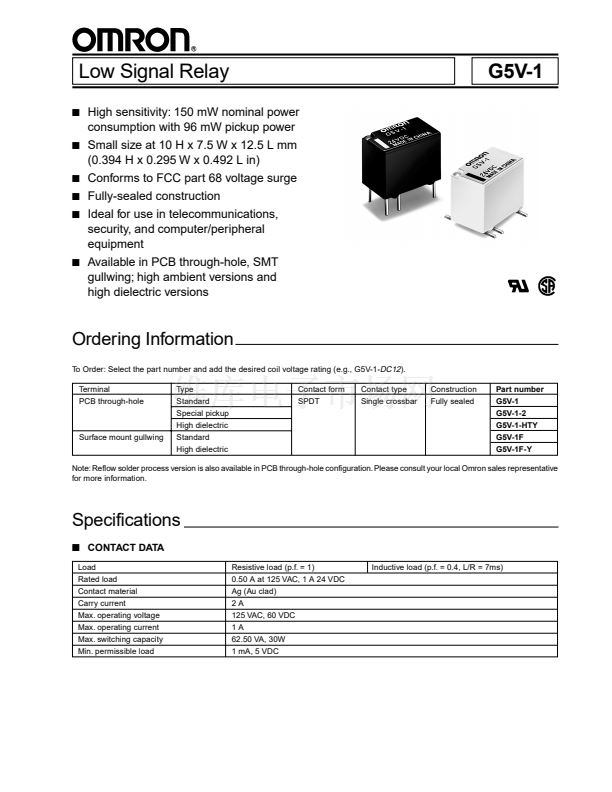

Low Signal Relay

s

High sensitivity: 150 mW nominal power

s

s

s

s

G5V-1

consumption with 96 mW pickup power

Small size at 10 H x 7.5 W x 12.5 L mm

(0.394 H x 0.295 W x 0.492 L in)

Conforms to FCC part 68 voltage surge

Fully-sealed construction

Ideal for use in telecommunications,

security, and computer/peripheral

equipment

gullwing; high ambient versions and

high dielectric versions

s

Available in PCB through-hole, SMT

Ordering Information

To Order: Select the part number and add the desired coil voltage rating (e.g., G5V-1-

DC12

).

Terminal

PCB through-hole

Type

Standard

Special pickup

High dielectric

Standard

High dielectric

Contact form

SPDT

Contact type

Single crossbar

Construction

Fully sealed

Part number

G5V-1

G5V-1-2

G5V-1-HTY

G5V-1F

G5V-1F-Y

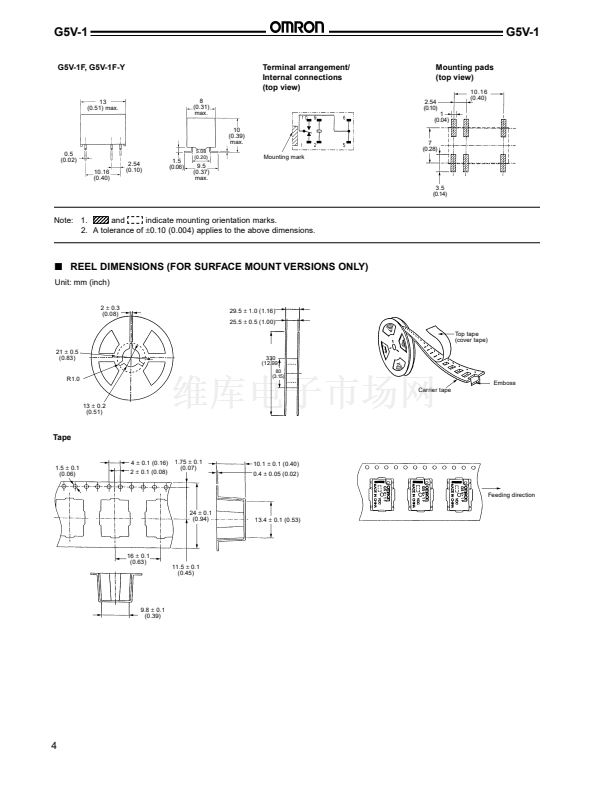

Surface mount gullwing

Note: Reflow solder process version is also available in PCB through-hole configuration. Please consult your local Omron sales representative

for more information.

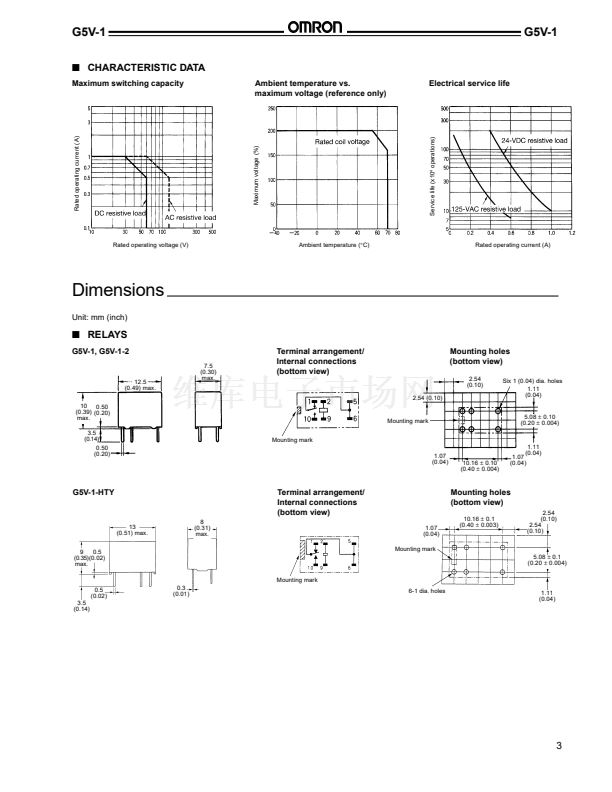

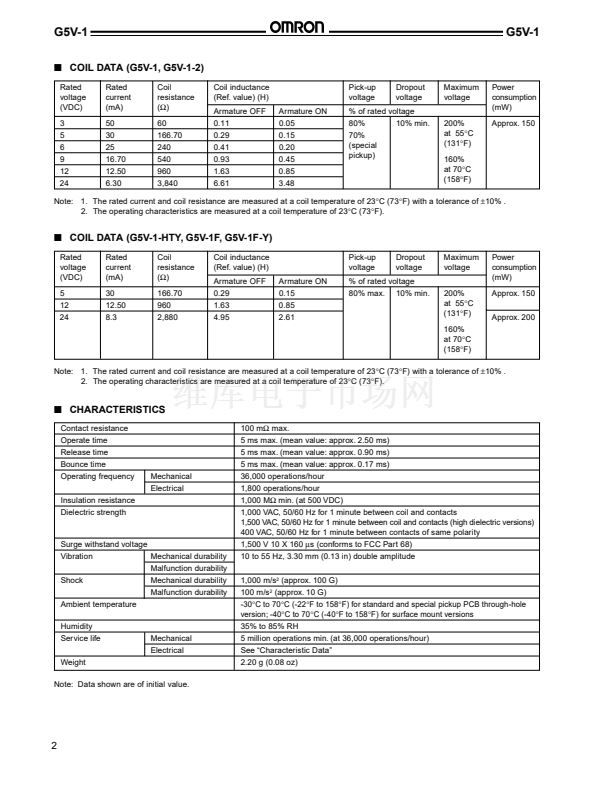

Specifications

s

CONTACT DATA

Load

Rated load

Contact material

Carry current

Max. operating voltage

Max. operating current

Max. switching capacity

Min. permissible load

Resistive load (p.f. = 1)

0.50 A at 125 VAC, 1 A 24 VDC

Ag (Au clad)

2A

125 VAC, 60 VDC

1A

62.50 VA, 30W

1 mA, 5 VDC

Inductive load (p.f. = 0.4, L/R = 7ms)
