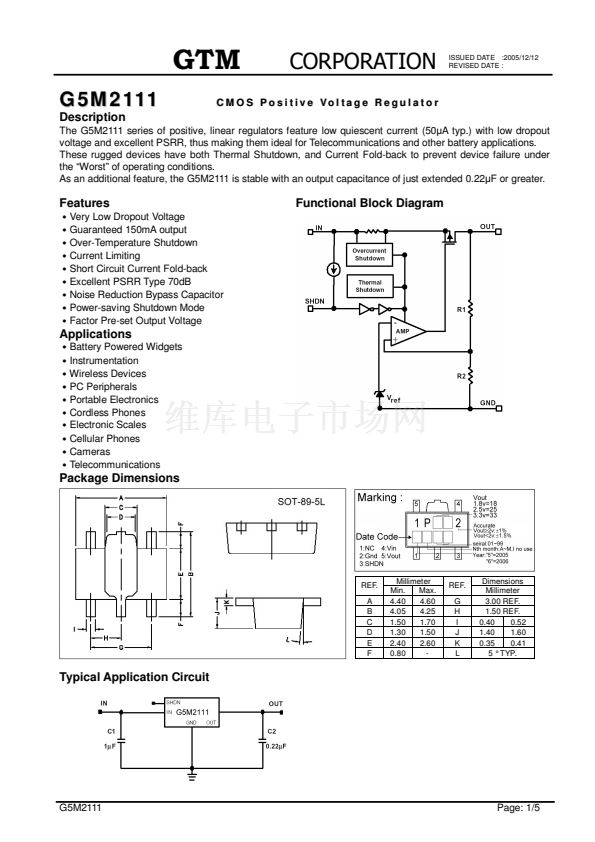

ISSUED DATE :2005/12/12

REVISED DATE :

G 5 M 2 111

Description

C M O S P o s i t i v e Vo l t a g e R e g u l a t o r

The G5M2111 series of positive, linear regulators feature low quiescent current (50 A typ.) with low dropout

voltage and excellent PSRR, thus making them ideal for Telecommunications and other battery applications.

These rugged devices have both Thermal Shutdown, and Current Fold-back to prevent device failure under

the 鈥淲orst鈥?of operating conditions.

As an additional feature, the G5M2111 is stable with an output capacitance of just extended 0.22 F or greater.

Features

&

Low Dropout Voltage

Very

Functional Block Diagram

Applications

&

Battery Powered Widgets

&Instrumentation

&Wireless Devices

&PC Peripherals

&Portable Electronics

&Cordless Phones

&Electronic Scales

&Cellular Phones

&Cameras

&Telecommunications

&Guaranteed 150mA output

&Over-Temperature Shutdown

&Current Limiting

&Short Circuit Current Fold-back

&Excellent PSRR Type 70dB

&Noise Reduction Bypass Capacitor

&Power-saving Shutdown Mode

&Factor Pre-set Output Voltage

Package Dimensions

REF.

A

B

C

D

E

F

Millimeter

Min.

Max.

4.40

4.60

4.05

4.25

1.50

1.70

1.30

1.50

2.40

2.60

0.80

-

REF.

G

H

I

J

K

L

Dimensions

Millimeter

3.00 REF.

1.50 REF.

0.40

0.52

1.40

1.60

0.35

0.41

5 擄 TYP.

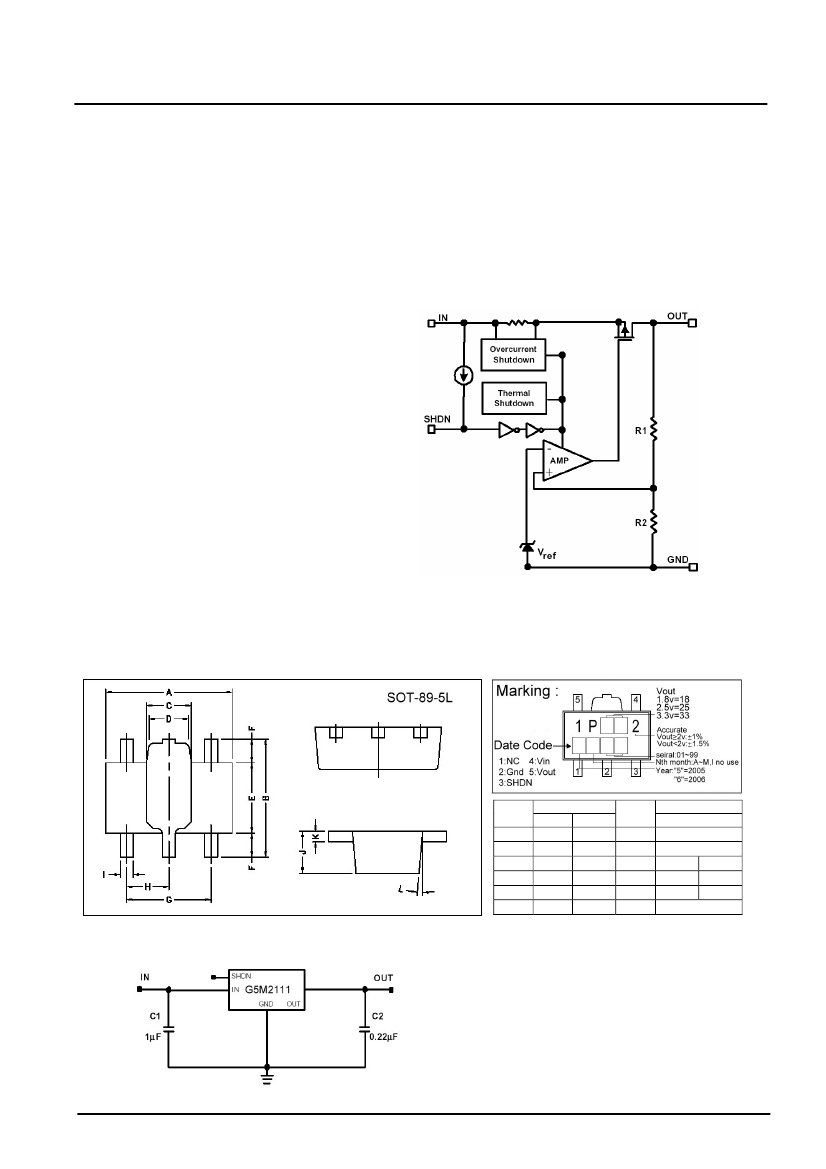

Typical Application Circuit

G5M2111

Page: 1/5
