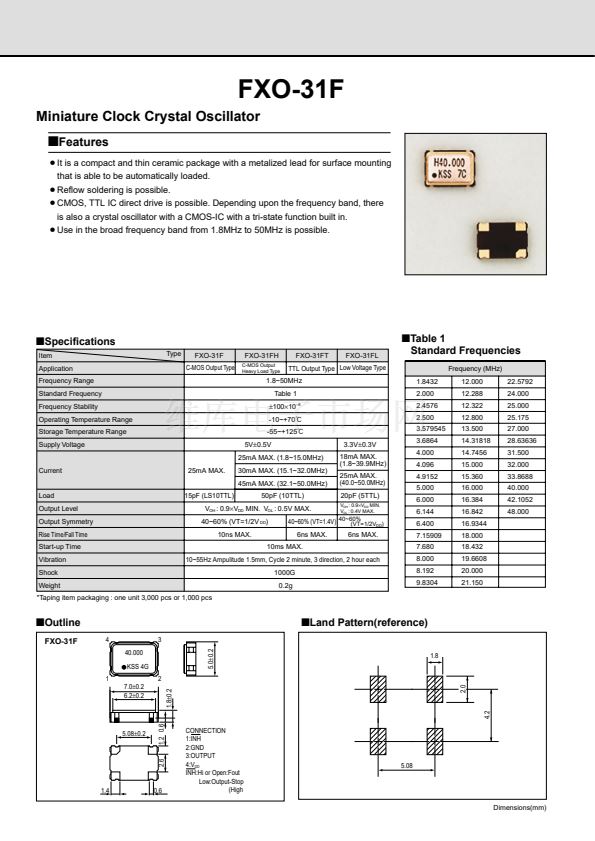

FXO-31F
Miniature Clock Crystal Oscillator
s
Features
隆It
is a compact and thin ceramic package with a metalized lead for surface mounting
that is able to be automatically loaded.
隆Reflow
soldering is possible.
隆CMOS,
TTL IC direct drive is possible. Depending upon the frequency band, there
is also a crystal oscillator with a CMOS-IC with a tri-state function built in.
隆Use
in the broad frequency band from 1.8MHz to 50MHz is possible.
s
Specifications
Item
Application
Frequency Range
Standard Frequency
Frequency Stability
Operating Temperature Range
Storage Temperature Range
Supply Voltage
Type
FXO-31F
C-MOS Output Type
FXO-31FH
C-MOS Output
Heavy Load Type
FXO-31FT
FXO-31FL
s
Table 1
Standard Frequencies
Frequency (MHz)
1.8432
2.000
2.4576
2.500
3.579545
3.6864
4.000
4.096
4.9152
5.000
6.000
6.144
6.400
7.15909
7.680
8.000
8.192
9.8304
12.000
12.288
12.322
12.800
13.500
14.31818
14.7456
15.000
15.360
16.000
16.384
16.842
16.9344
18.000
18.432
19.6608
20.000
21.150
22.5792
24.000
25.000
25.175
27.000
28.63636
31.500
32.000
33.8688
40.000
42.1052
48.000
TTL Output Type Low Voltage Type
1.8~50MHz
Table 1
鹵100脳10
鈥?
-10~+70:
-55~+125:
5V鹵0.5V
25mA MAX. (1.8~15.0MHz)
3.3V鹵0.3V
18mA MAX.
(1.8~39.9MHz)
25mA MAX.
(40.0~50.0MHz)
20pF (5TTL)
V
OH
: 0.9脳V
DD
MIN.
V
OL
: 0.4V MAX.
Current
25mA MAX.
30mA MAX. (15.1~32.0MHz)
45mA MAX. (32.1~50.0MHz)
Load
Output Level
Output Symmetry
Rise Time/Fall Time
Start-up Time
Vibration
Shock
Weight
15pF (LS10TTL)
50pF (10TTL)
V
OH
: 0.9脳V
DD
MIN. V
OL
: 0.5V MAX.
40~60% (VT=1/2V
DD
)
10ns MAX.
40~60% (VT=1.4V)
40~60%
(VT=1/2V
DD
)
6ns MAX.
6ns MAX.
10ms MAX.
10~55Hz Ampulitude 1.5mm, Cycle 2 minute, 3 direction, 2 hour each
1000G
0.2g
*Taping item packaging : one unit 3,000 pcs or 1,000 pcs
s
Outline
FXO-31F
4
40.000
KSS 4G
1
7.0鹵0.2
6.2鹵0.2
2
1.8鹵0.2
3
5.0鹵0.2
s
Land Pattern(reference)
1.8
2.0
CONNECTION
1:INH
2:GND
3:OUTPUT
4:V
DD
INH:Hi or Open:Fout
Low:Output-Stop
(High
5.08
4.2
5.08鹵0.2
1.4
0.6
2.6
1.2 0.6
Dimensions(mm)
1
