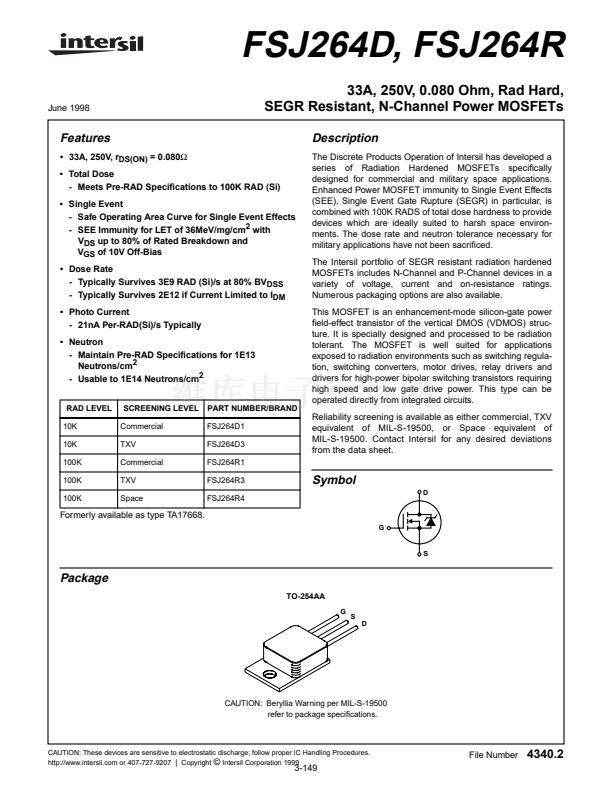

FSJ264D, FSJ264R
June 1998
33A, 250V, 0.080 Ohm, Rad Hard,
SEGR Resistant, N-Channel Power MOSFETs
Description
The Discrete Products Operation of Intersil has developed a
series of Radiation Hardened MOSFETs speci鏗乧ally
designed for commercial and military space applications.
Enhanced Power MOSFET immunity to Single Event Effects
(SEE), Single Event Gate Rupture (SEGR) in particular, is
combined with 100K RADS of total dose hardness to provide
devices which are ideally suited to harsh space environ-
ments. The dose rate and neutron tolerance necessary for
military applications have not been sacri鏗乧ed.
The Intersil portfolio of SEGR resistant radiation hardened
MOSFETs includes N-Channel and P-Channel devices in a
variety of voltage, current and on-resistance ratings.
Numerous packaging options are also available.
This MOSFET is an enhancement-mode silicon-gate power
鏗乪ld-effect transistor of the vertical DMOS (VDMOS) struc-
ture. It is specially designed and processed to be radiation
tolerant. The MOSFET is well suited for applications
exposed to radiation environments such as switching regula-
tion, switching converters, motor drives, relay drivers and
drivers for high-power bipolar switching transistors requiring
high speed and low gate drive power. This type can be
operated directly from integrated circuits.
Reliability screening is available as either commercial, TXV
equivalent of MIL-S-19500, or Space equivalent of
MIL-S-19500. Contact Intersil for any desired deviations
from the data sheet.
Features
鈥?33A, 250V, r
DS(ON)
= 0.080鈩?/div>
鈥?Total Dose
- Meets Pre-RAD Speci鏗乧ations to 100K RAD (Si)
鈥?Single Event
- Safe Operating Area Curve for Single Event Effects
- SEE Immunity for LET of 36MeV/mg/cm
2
with
V
DS
up to 80% of Rated Breakdown and
V
GS
of 10V Off-Bias
鈥?Dose Rate
- Typically Survives 3E9 RAD (Si)/s at 80% BV
DSS
- Typically Survives 2E12 if Current Limited to I
DM
鈥?Photo Current
- 21nA Per-RAD(Si)/s Typically
鈥?Neutron
- Maintain Pre-RAD Speci鏗乧ations for 1E13
Neutrons/cm
2
- Usable to 1E14 Neutrons/cm
2
RAD LEVEL
10K
10K
100K
100K
100K
SCREENING LEVEL
Commercial
TXV
Commercial
TXV
Space
PART NUMBER/BRAND
FSJ264D1
FSJ264D3
FSJ264R1
FSJ264R3
FSJ264R4
Symbol
D
Formerly available as type TA17668.
G
S
Package
TO-254AA
G
S
D
CAUTION: Beryllia Warning per MIL-S-19500
refer to package speci鏗乧ations.
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
http://www.intersil.com or 407-727-9207
|
Copyright
漏
Intersil Corporation 1999
File Number
4340.2
3-149
