鈩?/div>
AC-coupled loads
Dual multiplexed inputs
0.3% differential gain with 0.1擄 differential phase
5V only
Lead free (Pb-free) packaging
Description
The FMS6366 Filter Driver offers comprehensive 鏗乴tering
for set top box or DVD applications. This part consists of
triple 6th order 鏗乴ters with selectable cutoffs for SD or HD.
The 鏗乴ters are in a 4:2:2 con鏗乬uration such that Y1 switches
between 8MHz (SD) and 30MHz (HD). The Pb and Pr
channels switch between 4MHz (SD) and 15MHz (HD).
The required delay compensation must be performed in the
digital domain prior to 鏗乴tering by the FMS6366.
An additional S-video path is provided for SD signals. The
Y2 and C signals are both 鏗乴tered at 8MHz. A composite
summer is included to provide a composite output based on
Y2 and C.
A 2:1 multiplexer is provided on each 鏗乴ter channel with
separate select lines for the YPbPr and YC signals.
All inputs accept DC-coupled ground referenced 1Vpp input
signals. The 鏗乴ter outputs include +6dB of gain resulting in a
2Vpp signal into an AC-coupled dual video load (75
鈩?/div>
).
Applications
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Cable Set top boxes
Satellite Set top boxes
DVD players
HDTV
Personal Video Recorders (PVR)
Video On Demand (VOD)
Functional Block Diagram
Y1INA
Y1INB
8MHz, 30MHz
6dB
Y1OUT
PbINA
PbINB
4MHz, 15MHz
6dB
PbOUT
PrINA
PrINB
INA/N_INB
HD/N_SD
Y2IN
AUXIN
8MHz
6dB
4MHz, 15MHz
6dB
PrOUT
Y2OUT
CVOUT
CIN
0.5V
(Internal)
YC/N_AUX
8MHz
6dB
COUT

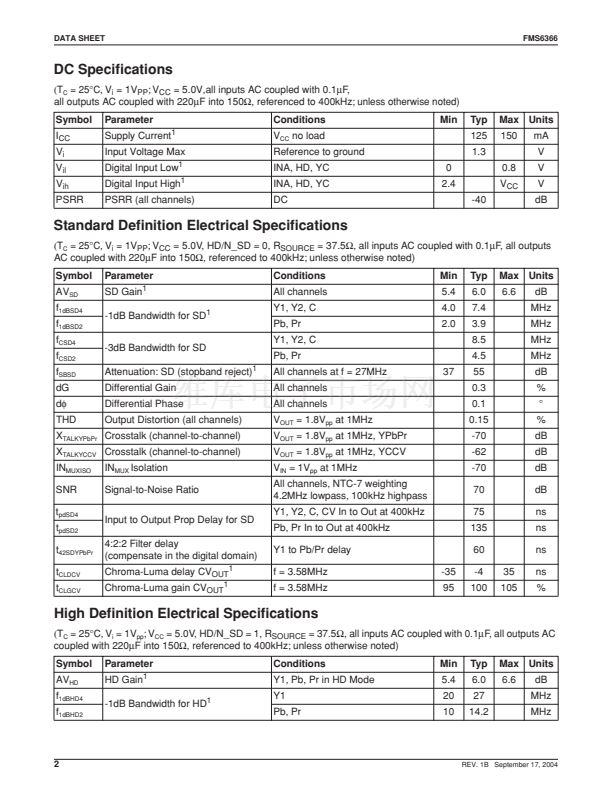

REV. 1B September 17, 2004
FMS6366MSA28X 產品屬性
1
集成電路 (IC)
線性 - 視頻處理
-
驅動器
錄音機，機頂盒
表面貼裝
28-SSOP（0.209"，5.30mm 寬）
28-SSOP
Digi-Reel®
FMS6366MSA28XDKR
