4Gb/s GaAs

Standard Logic IC

FEATURES

鈥?Ultra high speed operation up to 5 GHz from DC

鈥?Fast rise and fall time less than 80 ps

鈥?High input sensitivity: typ. 150mVp-p at 4 GHz (FMM362HG/HE)

鈥?High phase margin: typ. 200 deg. at 4 GHz (FMM362HG/HE)

鈥?Internal 50鈩?input termination resistor for direct series connection

鈥?ECL compatible input and output

鈥?Single-5.2V power supply

鈥?Stable operation at wide temperature range between 0 and 85擄C

鈥?Advanced packaging technology for ultra-fast application

FMM362HG/HE,

FMM363HG/HE

DESCRIPTION

FMM362HG/HE and FMM363HG/HE are ultra high speed GaAs standard

logic ICs designed for multi-gigabit optical communication systems and

digital test instruments.

鈥?FMM362HG/HE: Master-slave D-type Flip Flop (D-F/F) : Typ. 5 GHz

鈥?FMM363HG/HE: 2-Input OR/NOR Gate (OR/NOR)

: Typ. 5 Gbps

These logic ICs are capable of minimizing output rise and fall time of less

than 80 ps. FMM362HG/HE has a high input sensitivity of typ. 150mVp-p

and phase margin of typ. 200 deg. at 4 GHz. FMM360 series is provided

with internal 50鈩?input termination resistor for direct series connection to

eliminate the need of additional external biasing network. The GaAs die is

attached into advanced 14-pin metal/ceramic flat package designed for

ultra high speed application.

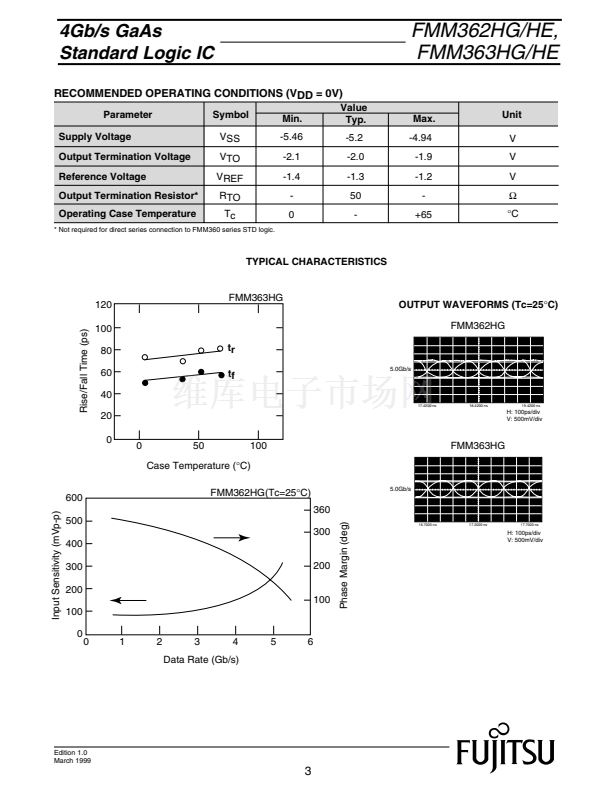

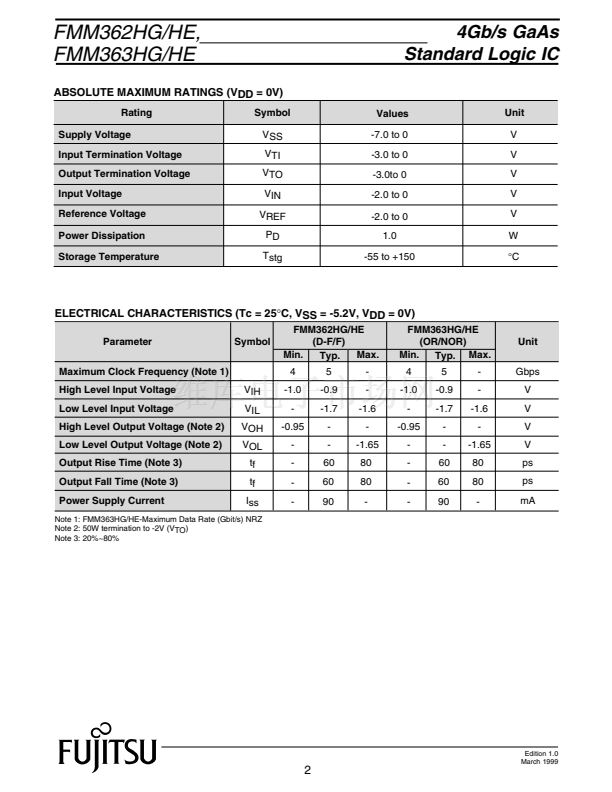

Edition 1.0

March 1999
