FIN3383MTD Datasheet

  • FIN3383MTD

  • Low Voltage 28-Bit Flat Panel Display Link Serializers

  • 284.15KB

  • 9頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

FIN3385 鈥?FIN3383 Low Voltage 28-Bit Flat Panel Display Link Serializers
October 2003
Revised January 2004
FIN3385 鈥?FIN3383
Low Voltage 28-Bit Flat Panel Display Link Serializers
General Description
The FIN3385 and FIN3383 transform 28 bit wide parallel
LVTTL (Low Voltage TTL) data into 4 serial LVDS (Low
Voltage Differential Signaling) data streams. A phase-
locked transmit clock is transmitted in parallel with the data
steam over a separate LVDS link. Every cycle of transmit
clock 28 bits of input LVTTL data are sampled and trans-
mitted.
These chipsets are an ideal solution to solve EMI and
cable size problems associated with wide and high-speed
TTL interfaces.
Features
s
Low power consumption
s
20 MHz to 85 MHz shift clock support
s
鹵
1V common-mode range around 1.2V
s
Narrow bus reduces cable size and cost
s
High throughput (up to 2.38 Gbps throughput)
s
Internal PLL with no external component
s
Compatible with TIA/EIA-644 specification
s
Devices are offered in 48- and 56-lead TSSOP
packages
Ordering Code:
Order Number
FIN3383MTD
FIN3385MTD
Package Number
MTD56
MTD56
Package Description
56-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide
56-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide
Devices also available in Tape and Reel. Specify by appending suffix letter 鈥淴鈥?to the ordering code.
TABLE 1. Display Panel Link Serializers/De-Serializers Chip Matrix
Part
FIN3385
FIN3383
CLK Frequency
85
66
LVTTL IN
28
28
LVDS OUT
4
4
Package
56 TSSOP
56 TSSOP
Block Diagram
Functional Diagram for FIN3385 and FIN3383
漏 2004 Fairchild Semiconductor Corporation
DS500864
www.fairchildsemi.com

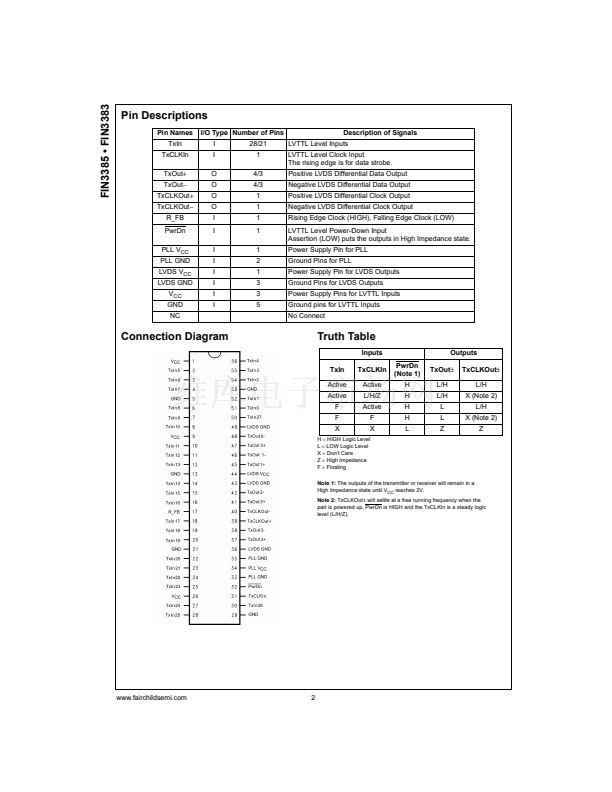

FIN3383MTD 產品屬性

  • Fairchild Semiconductor

  • LVDS 接口集成電路

  • 4

  • 28

  • 2.38 Gbps

  • 3.3 V

  • + 150 C

  • TSSOP-56

  • Tube

  • - 65 C

  • SMD/SMT

  • 34

  • 41.8 mA

  • 3.6 V

  • 3 V

  • Low Voltage 28-Bit Flat Panel Display Link
