FCX705
120V NPN SILICON HIGH VOLTAGE DARLINGTON TRANSISTOR
SUMMARY
V
CEO
=120V; V
CE(sat)
= 1.3V; I
C
= 1A
DESCRIPTION
This new NPN Darlington transistor provides users with very efficeint
performance combining low V
CE
(sat) and very high Hfe to give extremely low
on state losses at 120V operation. This makes it deal for use in a variety of
efficient driving functions including motors, lamps relays and solenoids and
will also benefit circuits requiring high output current switching.
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Low Saturation Voltage
Hfe
min 3K @ 1A
I
C
= -2A Continuous
SOT89 package with Ptot - 1W
Specification is also available in Eline and SOT223 package outlines
E
B
C
SOT 89
APPLICATIONS
鈥?/div>
Various driving functions
- Lamps
- Motors
- Relays and solenoids
High output current switches
鈥?/div>
E
C
TAPE WIDTH
(mm)
12mm embossed
QUANTITY
PER REEL
1000 units
Top View
ORDERING INFORMATION
DEVICE
FCX705TA
DEVICE MARKING
705
REEL SIZE
(inches)
7
C
B
ISSUE 2 - AUGUST 2001
1

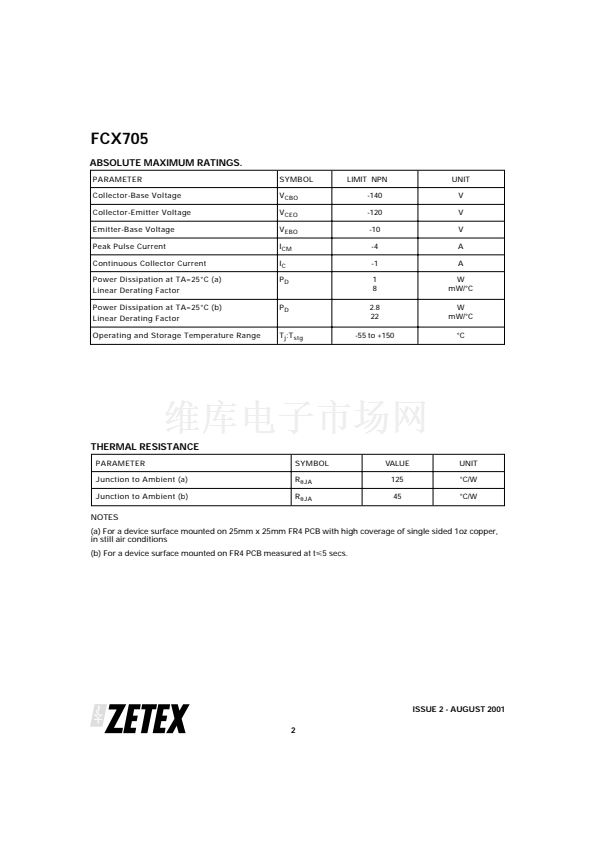

FCX705TA 產品屬性
1,000
分離式半導體產品
晶體管(BJT) - 單路
-
PNP - 達林頓
1A
120V
2.5V @ 2mA，2A
10µA
3000 @ 1A，5V
1W
160MHz
表面貼裝
TO-243AA
SOT-89-3
帶卷 (TR)
FCX705TA-NDFCX705TR
