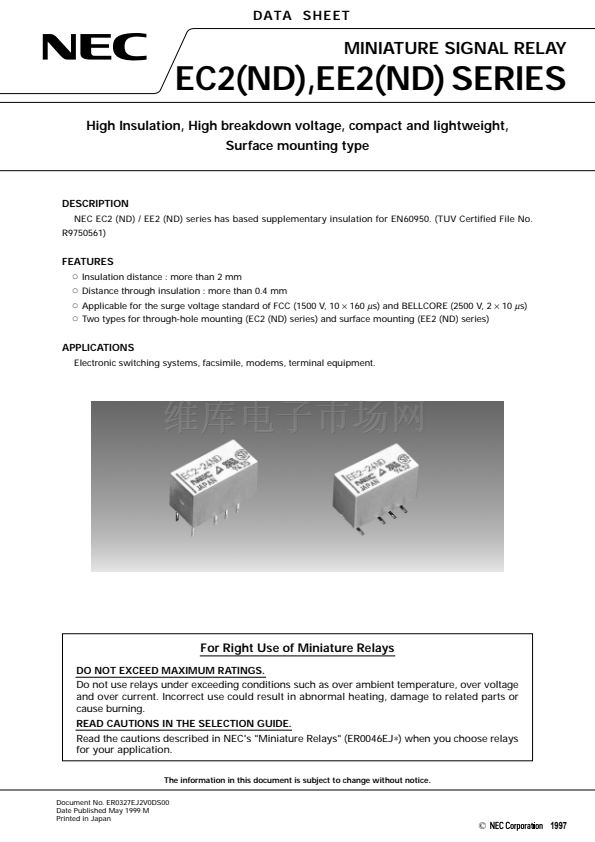

DATA S H E E T

MINIATURE SIGNAL RELAY

EC2(ND),EE2(ND) SERIES

High Insulation, High breakdown voltage, compact and lightweight,

Surface mounting type

DESCRIPTION

NEC EC2 (ND) / EE2 (ND) series has based supplementary insulation for EN60950. (TUV Certified File No.

R9750561)

FEATURES

鈩?/div>

Insulation distance : more than 2 mm

鈩?/div>

Distance through insulation : more than 0.4 mm

鈩?/div>

Applicable for the surge voltage standard of FCC (1500 V, 10

脳

160

碌

s) and BELLCORE (2500 V, 2

脳

碌

鈩?/div>

Two types for through-hole mounting (EC2 (ND) series) and surface mounting (EE2 (ND) series)

APPLICATIONS

Electronic switching systems, facsimile, modems, terminal equipment.

For Right Use of Miniature Relays

DO NOT EXCEED MAXIMUM RATINGS.

Do not use relays under exceeding conditions such as over ambient temperature, over voltage

and over current. Incorrect use could result in abnormal heating, damage to related parts or

cause burning.

READ CAUTIONS IN THE SELECTION GUIDE.

Read the cautions described in NEC's "Miniature Relays" (ER0046EJ鈭? when you choose relays

for your application.

The information in this document is subject to change without notice.

Document No. ER0327EJ2V0DS00

Date Published May 1999 M

Printed in Japan

漏

1997
