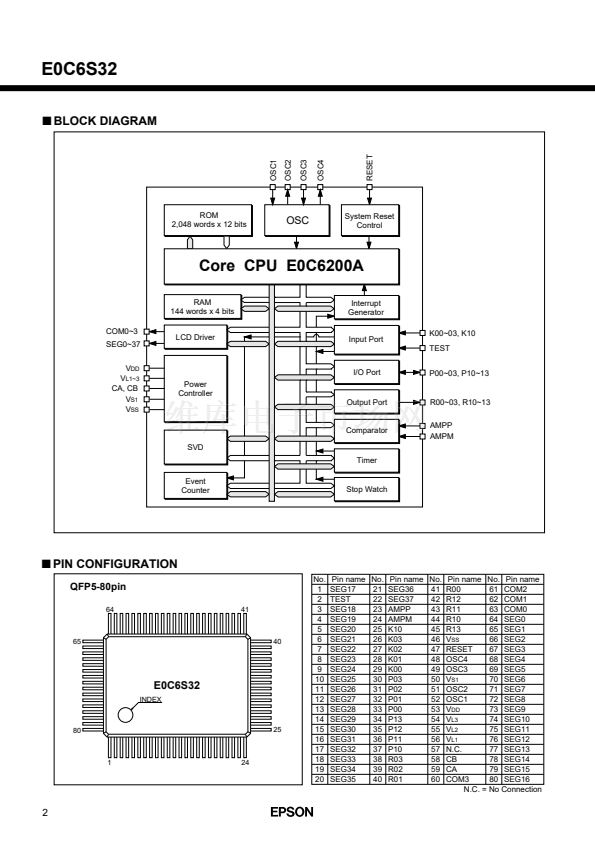

PF761-04
E0C6S32
4-bit Single Chip Microcomputer
ge
oltan
V
ow ratio s
L e
t
Op oduc
Pr
q
Core CPU Architecture
q
SVD Circuit/Comparator
q
Event Counter
s
DESCRIPTION
The E0C6S32 is an advanced single-chip CMOS 4-bit microcomputer consisting of the E0C6200A 4-bit core
CPU. It also contains the ROM, RAM, LCD driver, event counter, SVD circuit, stopwatch counter, and time base
counter. With wide voltage range and low power consumption, the E0C6S32 provides an excellent solution for
the low-power consumption systems with manganese dry cell.
s
FEATURES
q
CMOS LSI 4-bit parallel processing
q
Clock ..................................................... 32.768kHz (Typ.)/1MHz (Typ.) (selectable by software)
q
Instruction set ........................................ 100 instructions
q
Instruction cycle time ............................ 153碌sec, 214碌sec or 366碌sec at 32kHz
(depending on instruction)
5碌sec, 7碌sec or 12碌sec at 1MHz
(depending on instruction)
q
ROM capacity ....................................... 2,048
脳
12 bits
q
RAM capacity ........................................ 144
脳
4 bits
q
Input port ............................................... 5 bits (pull-down resistors are available by mask option)
q
Output port ............................................ 4 bits (general purpose)
2 bits (buzzer output): BZ, BZ
1 bit (lamp output)
1 bit (clock output)
q
I/O port .................................................. 8 bits
q
LCD driver ............................................. 38 segments
脳
2, 3 or 4 commons
(1/2, 1/3 or 1/4 duty is selectable by mask option)
q
Built-in time base counter
q
Built-in stopwatch counter
q
Built-in watchdog timer
q
Event counter ........................................ 8 lines
q
Built-in AMP .......................................... Operational AMP for MOS input analog comparator
q
Built-in SVD ........................................... 1.2 鹵 0.1V/2.4 鹵 0.1V (supply voltage detector)
q
Interrupts ............................................... External : Input interrupt
2 lines
Internal : Timer interrupt
1 line
Stopwatch interrupt
1 line
q
Current consumption ............................ E0C6SL32/6SB32
HALT mode (32kHz)
: 1.0碌A(chǔ) (Typ.)
E0C6S32
HALT mode (32kHz)
: 1.2碌A(chǔ) (Typ.)
E0C6SA32
HALT mode (32kHz)
: 1.5碌A(chǔ) (Typ.)
OPERATING mode (1MHz) : 300碌A(chǔ) (Typ.)
q
Package ................................................ QFP5-80pin (plastic), QFP14-80pin (plastic)
Die form
s
LINE UP
Model
E0C6SL32
E0C6S32
E0C6SA32
E0C6SB32
Supply voltage
1.5V (0.9V to 1.8V)
3.0V (1.8V to 3.6V)
3.0V (2.2V to 3.6V)
Wide voltage (0.9V to 3.6V)
Clock
32kHz (Crystal oscillation)
32kHz (Crystal oscillation)
32kHz (Crystal oscillation) & 1MHz (Ceramic or CR oscillation)
32kHz (Crystal oscillation)
SEIKO EPSON CORPORATION
1
