DZ23C2V7 - DZ23C51
300mW DUAL SURFACE MOUNT ZENER DIODE
Features
路
路
路
路
路
Dual Zeners in Common Cathode Configuration
300 mW Power Dissipation
Ideally Suited for Automatic Insertion
D
V
Z
For Both Diodes in One Case is
攏
5%
Common Anode Style Available
See AZ Series
TOP VIEW
SOT-23
Dim
A
Min
0.37
1.20
2.30
0.89
0.45
1.78
2.80
0.013
0.903
0.45
0.085
0擄
Max
0.51
1.40
2.50
1.03
0.60
2.05
3.00
0.10
1.10
0.61
0.180
8擄
A
B
B
C
Mechanical Data
路
路
路
路
路
路
路
Case: SOT-23, Molded Plastic
Case material - UL Flammability Rating 94V-0
Moisture sensitivity: Level 1 per J-STD-020A
Terminals: Solderable per MIL-STD-202,
Method 208
Polarity: See Diagram

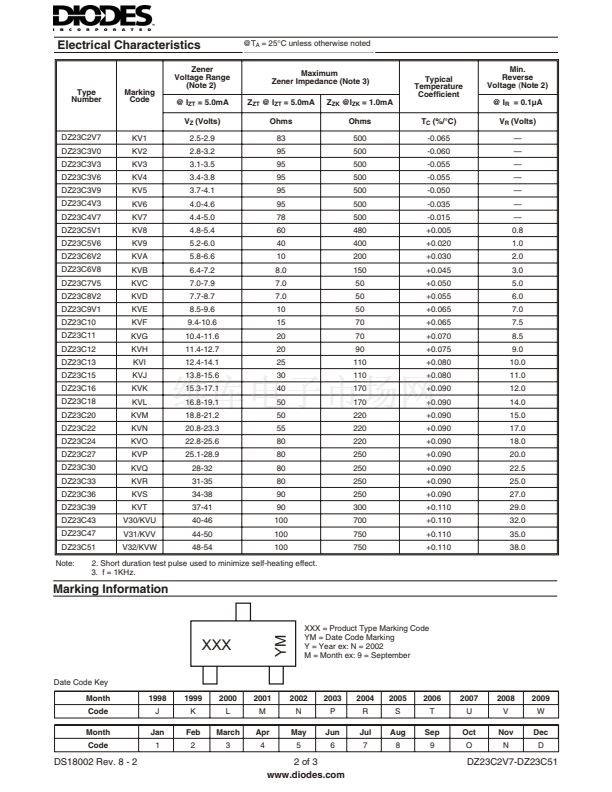

Marking: Marking Code (See Page 2)
Approx. Weight: 0.008 grams
E
D
G
H
C
D
E
G
H
J
L
K
J
M
K
L
M
a
All Dimensions in mm
Maximum Ratings
@T
A
= 25擄C unless otherwise specified
Characteristic
Symbol
P
d
R
qJA
T
j
,T
STG
Value
300
417
鈥?5 to +150
Unit
mW
擄C/W
擄C
Power Dissipation (Note 1)
Thermal Resistance, Junction to Ambient Air (Note 1)
Operating and Storage Temperature Range
Ordering Information
Device
(Note 4)
Packaging
SOT-23
Shipping
3000/Tape & Reel
(Type Number)-7*
* Add 鈥?7鈥?to the appropriate type number in Table on Page 2 example: 6.2V Zener = DZ23C6V2-7.
Note:
1. Mounted on FR4 PC Board with recommended pad layout which can be found on our website
at http://www.diodes.com/datasheets/ap02001.pdf.
2. Short duration test pulse used to minimize self-heating effect.
3. f = 1KHz.
4. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
DS18002 Rev. 8 - 2
1 of 3
www.diodes.com
DZ23C2V7-DZ23C51
1
2
3
