DS92LV1260TUJB Datasheet

  • DS92LV1260TUJB

  • Six Channel 10 Bit BLVDS Deserializer

  • 17頁

  • NSC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

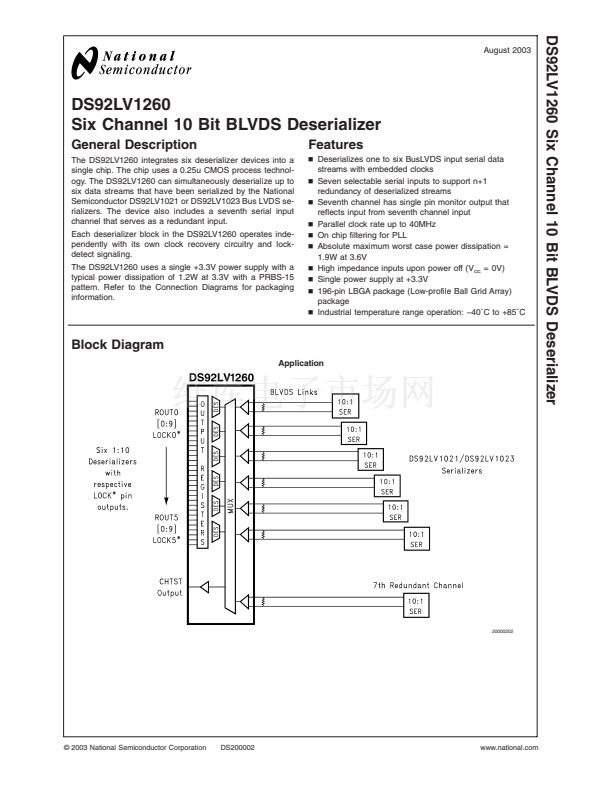

DS92LV1260 Six Channel 10 Bit BLVDS Deserializer
August 2003
DS92LV1260
Six Channel 10 Bit BLVDS Deserializer
General Description
The DS92LV1260 integrates six deserializer devices into a
single chip. The chip uses a 0.25u CMOS process technol-
ogy. The DS92LV1260 can simultaneously deserialize up to
six data streams that have been serialized by the National
Semiconductor DS92LV1021 or DS92LV1023 Bus LVDS se-
rializers. The device also includes a seventh serial input
channel that serves as a redundant input.
Each deserializer block in the DS92LV1260 operates inde-
pendently with its own clock recovery circuitry and lock-
detect signaling.
The DS92LV1260 uses a single +3.3V power supply with a
typical power dissipation of 1.2W at 3.3V with a PRBS-15
pattern. Refer to the Connection Diagrams for packaging
information.
Features
n
Deserializes one to six BusLVDS input serial data
streams with embedded clocks
n
Seven selectable serial inputs to support n+1
redundancy of deserialized streams
n
Seventh channel has single pin monitor output that
reflects input from seventh channel input
n
Parallel clock rate up to 40MHz
n
On chip filtering for PLL
n
Absolute maximum worst case power dissipation =
1.9W at 3.6V
n
High impedance inputs upon power off (V
cc
= 0V)
n
Single power supply at +3.3V
n

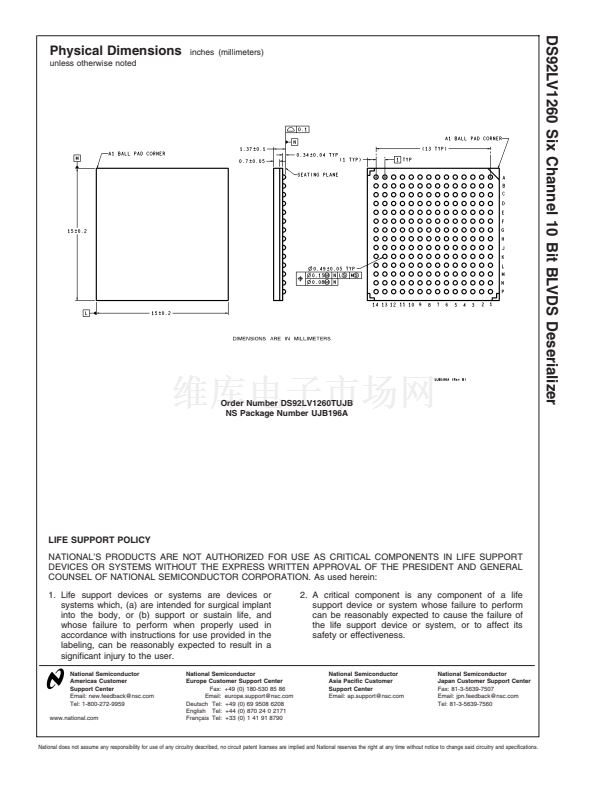

196-pin LBGA package (Low-profile Ball Grid Array)
package
n
Industrial temperature range operation: 鈭?0藲C to +85藲C

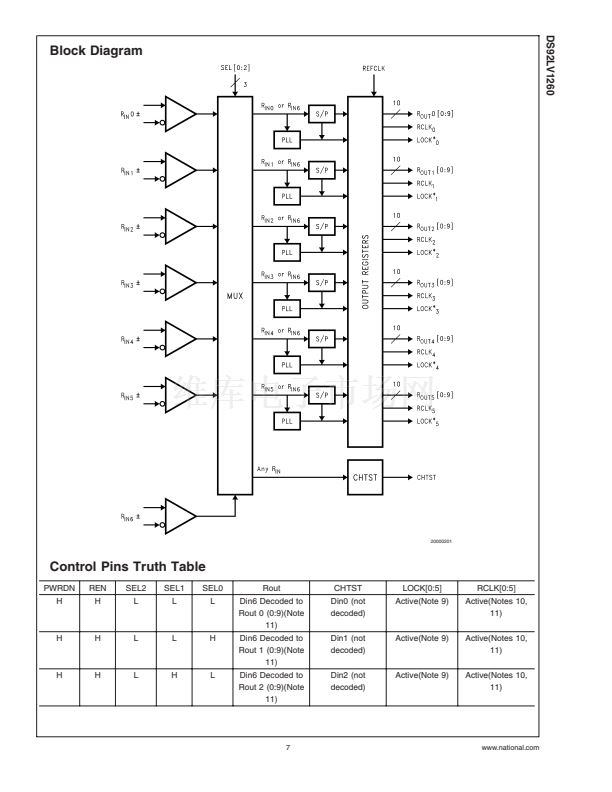

Block Diagram

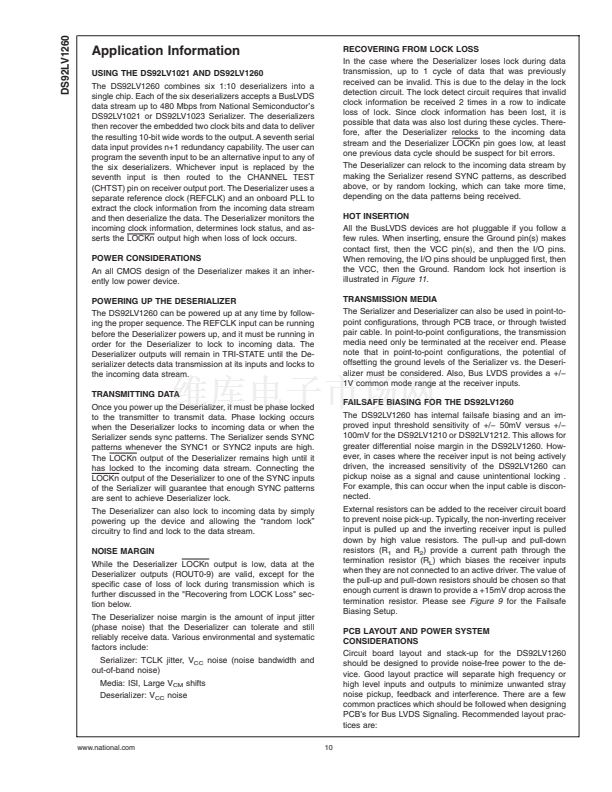

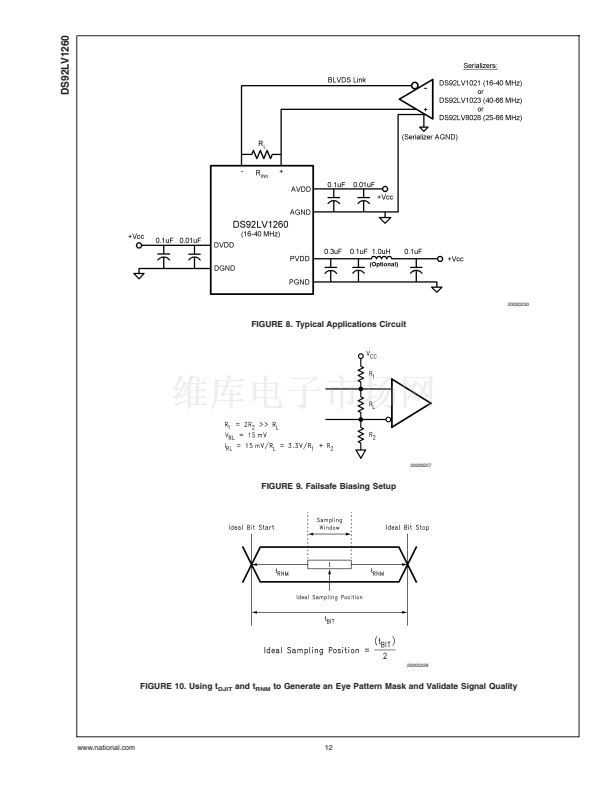

Application
20000202
漏 2003 National Semiconductor Corporation
DS200002
www.national.com

DS92LV1260TUJB 產品屬性

  • National Semiconductor (TI)

  • 10

  • 1

  • 400 Mbps

  • 3.3 V

  • 3700 mW

  • + 85 C

  • LBGA

  • Tray

  • - 40 C

  • SMD/SMT

  • 119

  • 3.6 V

  • 3 V

  • LVTTL
