DS92LV090A9 Channel Bus LVDS Transceiver
April 2000
DS92LV090A
9 Channel Bus LVDS Transceiver
General Description
The DS92LV090A is one in a series of Bus LVDS transceiv-
ers designed specifically for the high speed, low power pro-
prietary backplane or cable interfaces. The device operates
from a single 3.3V power supply and includes nine differen-
tial line drivers and nine receivers. To minimize bus loading,
the driver outputs and receiver inputs are internally con-
nected. The separate I/O of the logic side allows for loop
back support. The device also features a flow through pin out
which allows easy PCB routing for short stubs between its
pins and the connector.
The driver translates 3V TTL levels (single-ended) to differ-
ential Bus LVDS (BLVDS) output levels. This allows for high
speed operation, while consuming minimal power with re-
duced EMI. In addition, the differential signaling provides
common mode noise rejection of
鹵
1V.
The receiver threshold is less than
鹵
100 mV over a
鹵
1V
common mode range and translates the differential Bus
LVDS to standard (TTL/CMOS) levels. (See Applications In-
formation Section for more details.)
Features
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
Bus LVDS Signaling
3.2 nanosecond propagation delay max
Chip to Chip skew
鹵
800ps
Low power CMOS design
High Signaling Rate Capability (above 100 Mbps)
0.1V to 2.3V Common Mode Range for V
ID
= 200mV
鹵
100 mV Receiver Sensitivity
Supports open and terminated failsafe on port pins
3.3V operation
Glitch free power up/down (Driver & Receiver disabled)
Light Bus Loading (5 pF typical) per Bus LVDS load
Designed for Double Termination Applications
Balanced Output Impedance
Product offered in 64 pin TQFP package
High impedance Bus pins on power off (V
CC
= 0V)
Driver Channel to Channel skew (same device) 230ps
typical
n
Receiver Channel to Channel skew (same device)
370ps typical

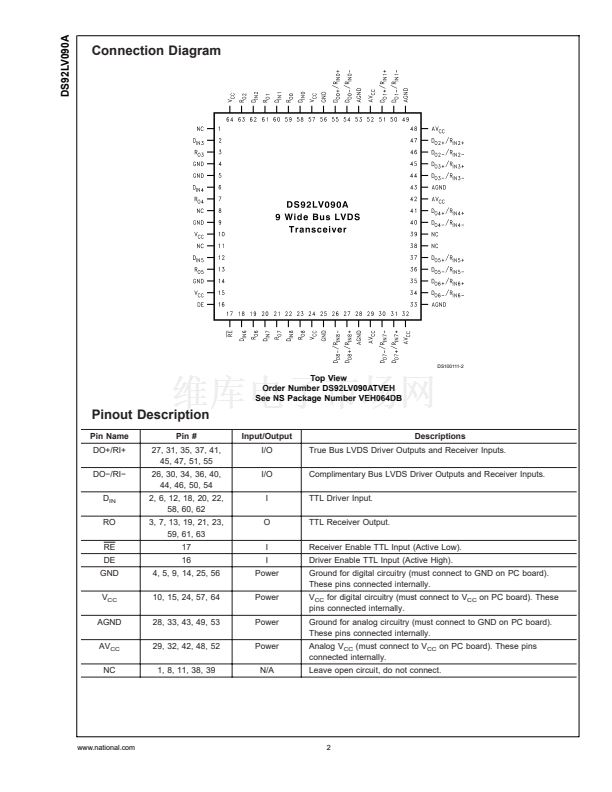

Simplified Functional Diagram
DS100111-1
TRI-STATE
廬
is a registered trademark of National Semiconductor Corporation.
漏 2000 National Semiconductor Corporation
DS100111
www.national.com
