Small Size and Low Profile
Industry Standard SOT-26 SMT Plastic Package
Typical Isertion Loss 0.6dB
Typical Amplitude Balance 0.2dB
1 Watt Power Handling
SOT-26
Description
M/A-COM鈥檚 DS52-0014 is an IC-based monolithic power divider
using M/A-COM鈥檚 GMIC technology in a low cost SOT-26
plastic package. This 2-way power divider is ideally suited for
applications where small size, low insertion loss, superior phase/
amplitude tracking and low cost are required.
Typical
applications include handsets, base station switching networks
and other communication applications where size and PCB real
estate are at a premium. Available in Tape and Reel.
The DS52-0014 is fabricated using a passive-integrated circuit
process. The process features full-chip passivation for increased
performance and reliability.
Absolute Maximum Ratings
1
Parameter
Input Power
2
Ordering Information
Part Number
DS52-0014
DS52-0014-TR
DS52-0014-RTR
Package
SOT-26 Lead Plastic Package
Forward Tape and Reel
1
Reverse Tape and Reel
1
1 W CW
Absolute Maximum
-40擄C to +85擄C
-65擄C to +150擄C
Operating Temperature
Storage Temperature
1. Exceeding these limits may cause permanent damage.
2. With internal load dissipation of 0.125 W Maximum.
1. If specific reel size is required, consult factory for part number
assignment.
Typical Electrical Specifications
1
, T
A
= +25擄C
Parameter
Insertion Loss above 3.0dB
Isolation
VSWR
Input
RF1, RF2 Outputs
Units
dB
dB
鈥?/div>
鈥?/div>
dB
擄
Min
鈥?/div>
16
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Typ
0.6
20
1.2 : 1
1.1 : 1
0.2
1.5
Max
0.8
鈥?/div>
1.4 : 1
1.3 : 1
0.4
3.0
Amplitude Balance
Phase Balance
1. All specifications apply with a 50-Ohm source and load impedance.

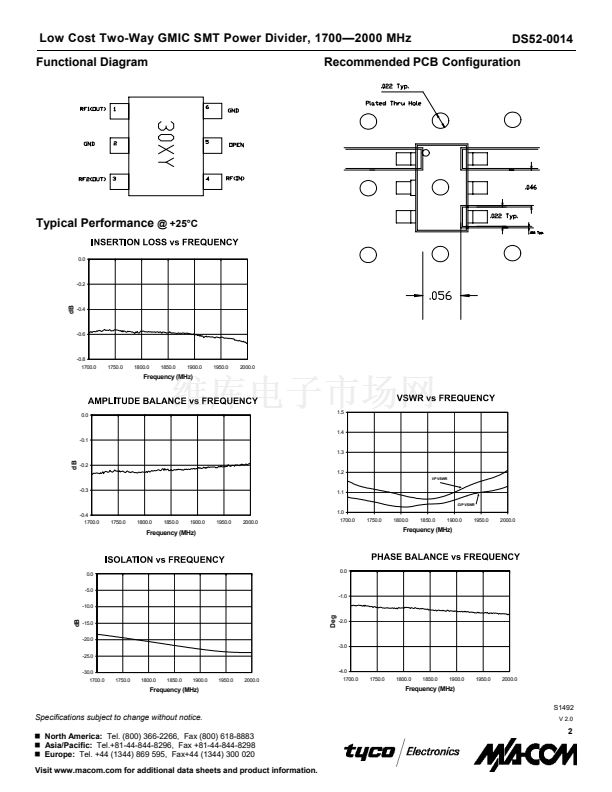

S1492
Specifications subject to change without notice.
North America:
Tel. (800) 366-2266, Fax (800) 618-8883
Asia/Pacific:
Tel.+81-44-844-8296, Fax +81-44-844-8298
Europe:
Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020
Visit www.macom.com for additional data sheets and product information.
V 2.0
