DS1402D-0XX

iButton Probe Component Parts

www.maxim-ic.com

Features

摟

摟

摟

Spring-Mounted iButton Reader

Momentary Contact for Both F3 and F5 Style

iButtons or Dwelled Contact for F5 Only

Convenient Tactile Feedback System for Dwelled

iButton Contact

廬

Mounting Pad Layout

.82in

Ground

.080in

Data

.46in

General Description

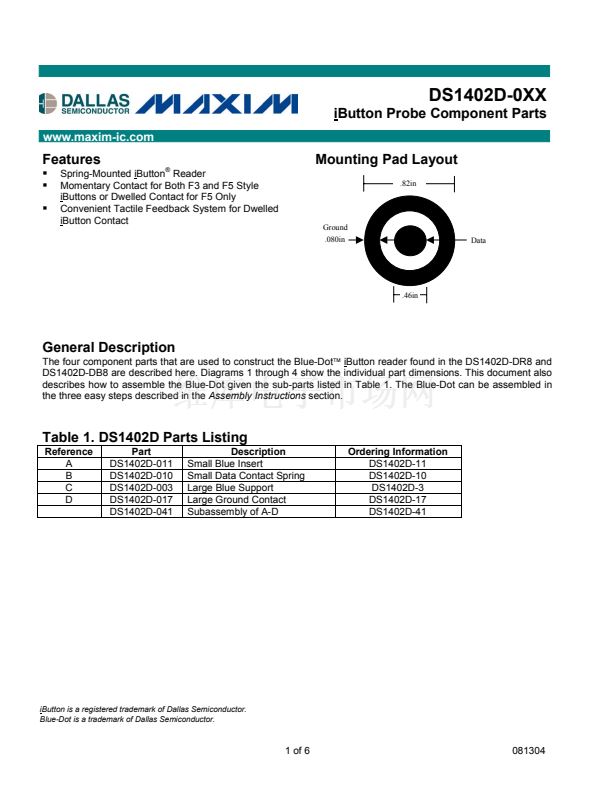

The four component parts that are used to construct the Blue-Dot盲 iButton reader found in the DS1402D-DR8 and

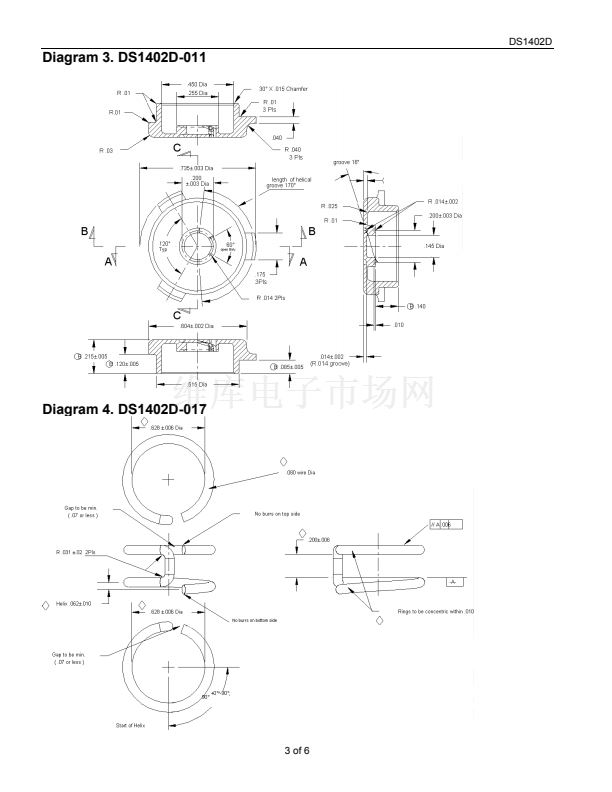

DS1402D-DB8 are described here. Diagrams 1 through 4 show the individual part dimensions. This document also

describes how to assemble the Blue-Dot given the sub-parts listed in Table 1. The Blue-Dot can be assembled in

the three easy steps described in the

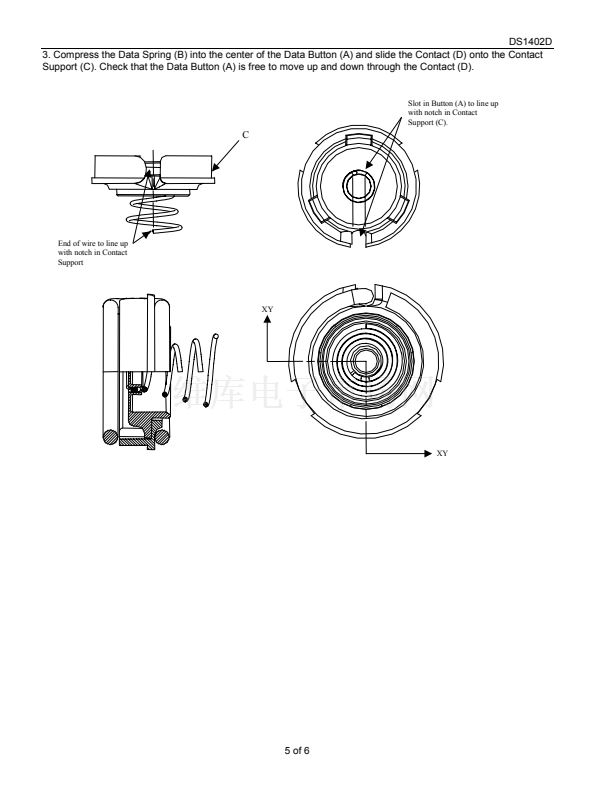

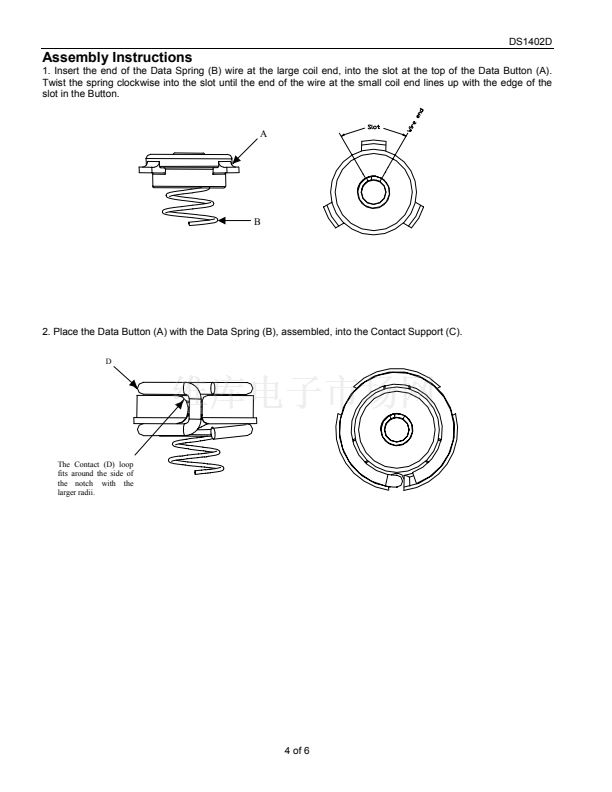

Assembly Instructions

section.

Table 1. DS1402D Parts Listing

Reference

A

B

C

D

Part

DS1402D-011

DS1402D-010

DS1402D-003

DS1402D-017

DS1402D-041

Description

Small Blue Insert

Small Data Contact Spring

Large Blue Support

Large Ground Contact

Subassembly of A-D

Ordering Information

DS1402D-11

DS1402D-10

DS1402D-3

DS1402D-17

DS1402D-41

iButton is a registered trademark of Dallas Semiconductor.

Blue-Dot is a trademark of Dallas Semiconductor.

1 of 6

081304

next
