WIDE OUTPUT SWING: 17Vrms into 600鈩?/div>
HIGH CAPACITIVE LOAD DRIVE
HIGH SLEW RATE: 15V/
碌
s
WIDE SUPPLY RANGE:
鹵
4.5V to
鹵
18V
LOW QUIESCENT CURRENT:
鹵
5.2mA
8-PIN DIP, SO-8, AND SOL-16 PACKAGES
COMPANION TO AUDIO DIFFERENTIAL
LINE RECEIVERS: INA134 and INA137
q
IMPROVED REPLACEMENT FOR SSM2142
DESCRIPTION

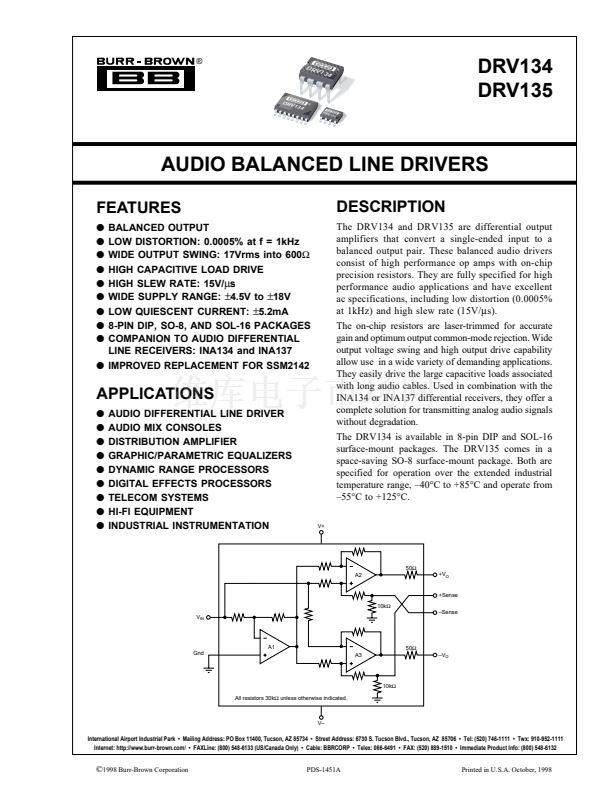

The DRV134 and DRV135 are differential output
amplifiers that convert a single-ended input to a
balanced output pair. These balanced audio drivers
consist of high performance op amps with on-chip
precision resistors. They are fully specified for high
performance audio applications and have excellent
ac specifications, including low distortion (0.0005%
at 1kHz) and high slew rate (15V/碌s).
The on-chip resistors are laser-trimmed for accurate
gain and optimum output common-mode rejection. Wide
output voltage swing and high output drive capability
allow use in a wide variety of demanding applications.
They easily drive the large capacitive loads associated
with long audio cables. Used in combination with the
INA134 or INA137 differential receivers, they offer a
complete solution for transmitting analog audio signals
without degradation.
The DRV134 is available in 8-pin DIP and SOL-16
surface-mount packages. The DRV135 comes in a
space-saving SO-8 surface-mount package. Both are
specified for operation over the extended industrial
temperature range, 鈥?0擄C to +85擄C and operate from
鈥?5擄C to +125擄C.
V+
APPLICATIONS
q
q
q
q
q
q
q
q
q
AUDIO DIFFERENTIAL LINE DRIVER
AUDIO MIX CONSOLES
DISTRIBUTION AMPLIFIER
GRAPHIC/PARAMETRIC EQUALIZERS
DYNAMIC RANGE PROCESSORS
DIGITAL EFFECTS PROCESSORS
TELECOM SYSTEMS
HI-FI EQUIPMENT
INDUSTRIAL INSTRUMENTATION
50鈩?/div>
A2
+V
O
+Sense
10k鈩?/div>
V
IN
鈥揝ense
A1
Gnd
A3
50鈩?/div>
鈥揤
O
10k鈩?/div>
All resistors 30k鈩?unless otherwise indicated.
V鈥?/div>
International Airport Industrial Park 鈥?Mailing Address: PO Box 11400, Tucson, AZ 85734 鈥?Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 鈥?Tel: (520) 746-1111 鈥?Twx: 910-952-1111
Internet: http://www.burr-brown.com/ 鈥?FAXLine: (800) 548-6133 (US/Canada Only) 鈥?Cable: BBRCORP 鈥?Telex: 066-6491 鈥?FAX: (520) 889-1510 鈥?Immediate Product Info: (800) 548-6132
漏
1998 Burr-Brown Corporation
PDS-1451A
Printed in U.S.A. October, 1998
