鈥?1dBc at 6Vp-p, 100kHz, 100鈩?/div>
q
FIXED DIFFERENTIAL GAIN: 3V/V
DESCRIPTION
The DRV1101 is fixed gain differential line driver
designed for very low distortion operation when driv-
ing DSL line transformers. It is designed for use as the
upstream line driver for ADSL G.Lite, and as both
upstream and downstream line drivers in CAP sys-
tems. Operating on a single 5V supply, the DRV1101
can supply up to 230mA peak output current. The
output voltage can swing up to 9.5Vp-p on a single 5V
supply. In ADSL G.Lite applications, DRV1101 can
supply up to 10dBm average
line
power with a crest
factor of 5.3 for a peak line power delivered of
approximately 25dBm. It is packaged in a 8-lead
SOIC.
APPLICATIONS
q
DSL TWISTED PAIR LINE DRIVER
q
COMMUNICATIONS LINE DRIVER
q
TWISTED-PAIR CABLE DRIVER

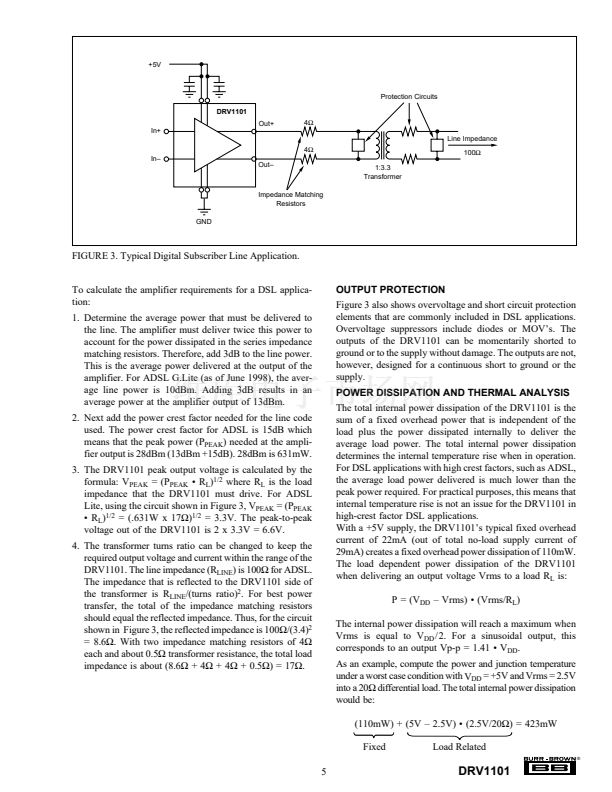

+5V
DRV1101
Out+
In+
G = 3V/V
In鈥?/div>
Patent
Pending
GND
Out鈥?/div>
4鈩?/div>
Protection
1:3.3
Transformer
100鈩?/div>
4鈩?/div>
International Airport Industrial Park 鈥?Mailing Address: PO Box 11400, Tucson, AZ 85734 鈥?Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 鈥?Tel: (520) 746-1111 鈥?Twx: 910-952-1111
Internet: http://www.burr-brown.com/ 鈥?FAXLine: (800) 548-6133 (US/Canada Only) 鈥?Cable: BBRCORP 鈥?Telex: 066-6491 鈥?FAX: (520) 889-1510 鈥?Immediate Product Info: (800) 548-6132
漏
1998 Burr-Brown Corporation
PDS-1462A
Printed in U.S.A. July, 1998
SBWS009
