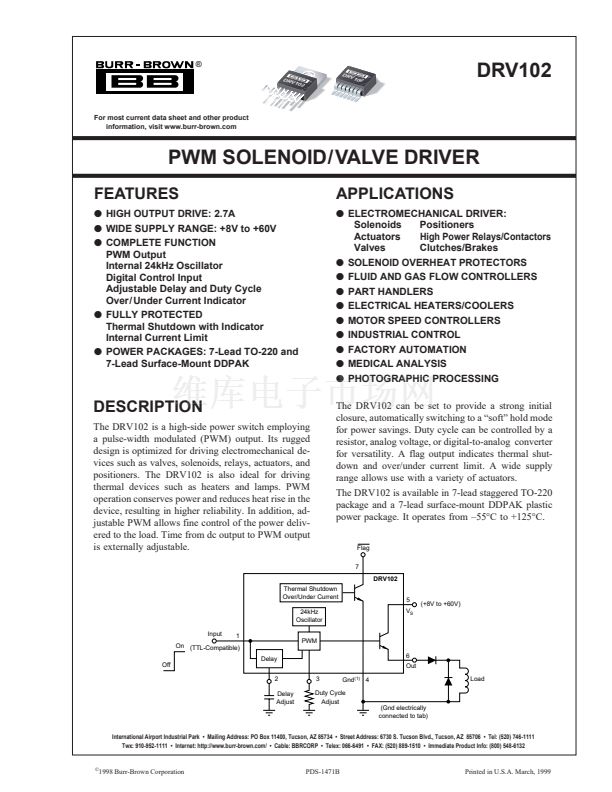

DRV102F Datasheet

  • DRV102F

  • PWM SOLENOID/VALVE DRIVER

  • 19頁

  • BB

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬
DRV
DRV
102
102
DRV102
For most current data sheet and other product
information, visit www.burr-brown.com
PWM SOLENOID/VALVE DRIVER

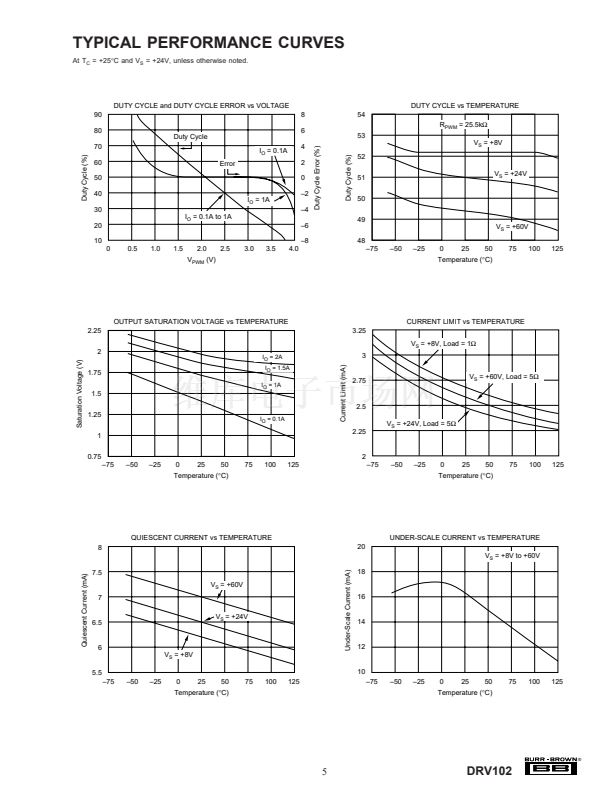

FEATURES
q
HIGH OUTPUT DRIVE: 2.7A
q
WIDE SUPPLY RANGE: +8V to +60V
q
COMPLETE FUNCTION
PWM Output
Internal 24kHz Oscillator
Digital Control Input
Adjustable Delay and Duty Cycle
Over/ Under Current Indicator
q
FULLY PROTECTED
Thermal Shutdown with Indicator
Internal Current Limit
q

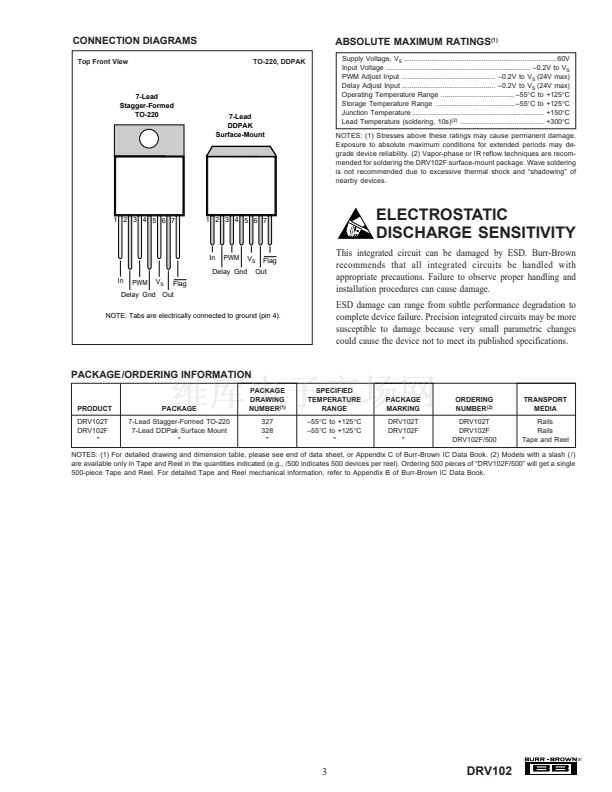

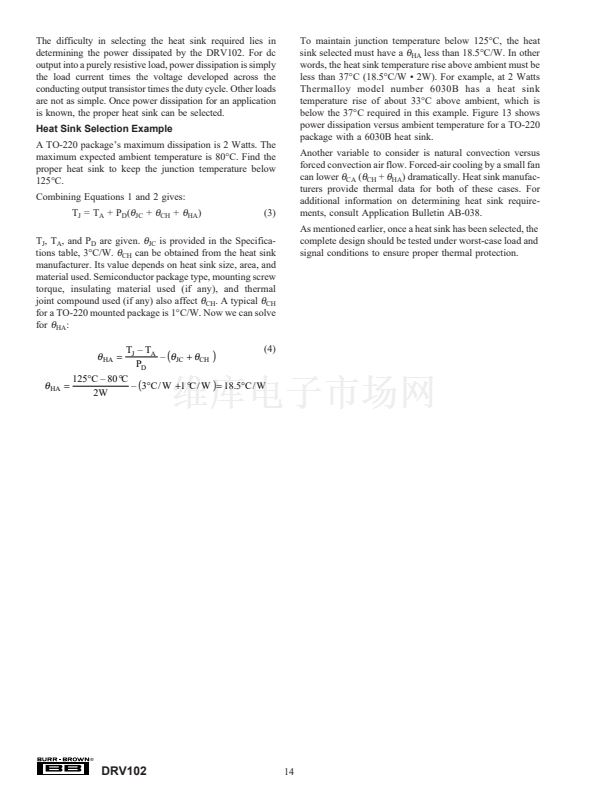

POWER PACKAGES: 7-Lead TO-220 and
7-Lead Surface-Mount DDPAK

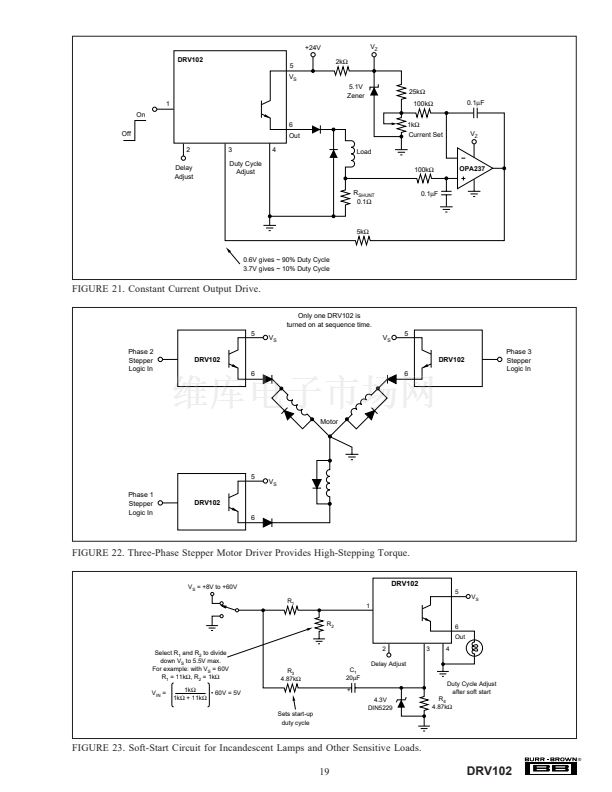

APPLICATIONS
q

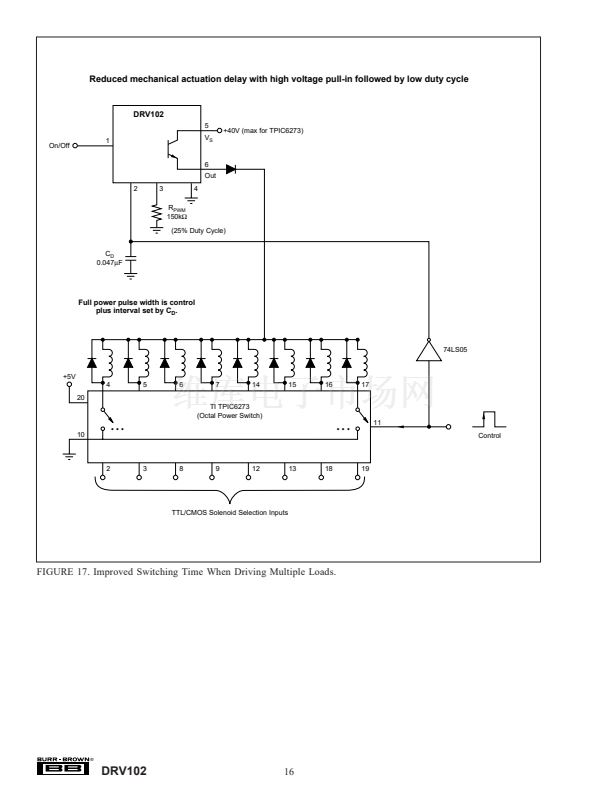

ELECTROMECHANICAL DRIVER:
Solenoids
Positioners
Actuators
High Power Relays/Contactors
Valves
Clutches/Brakes
q
SOLENOID OVERHEAT PROTECTORS
q
FLUID AND GAS FLOW CONTROLLERS
q
PART HANDLERS
q

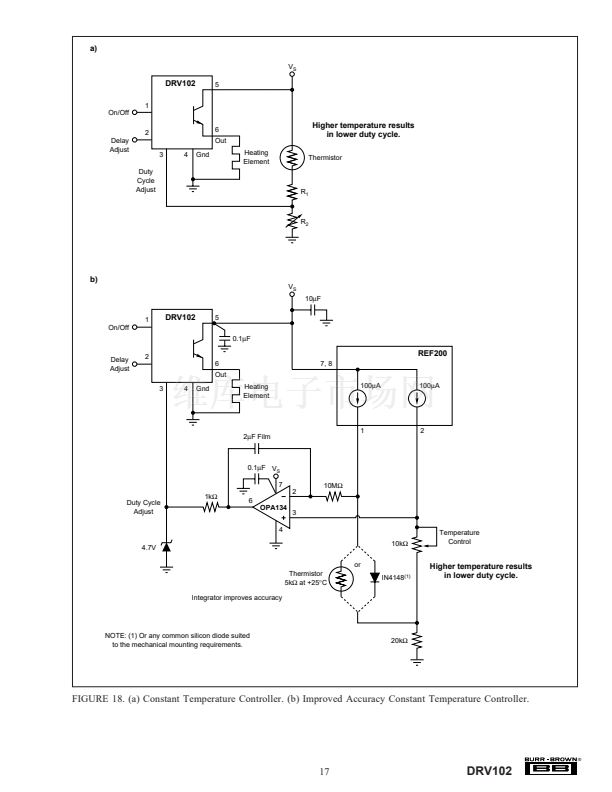

ELECTRICAL HEATERS/COOLERS
q

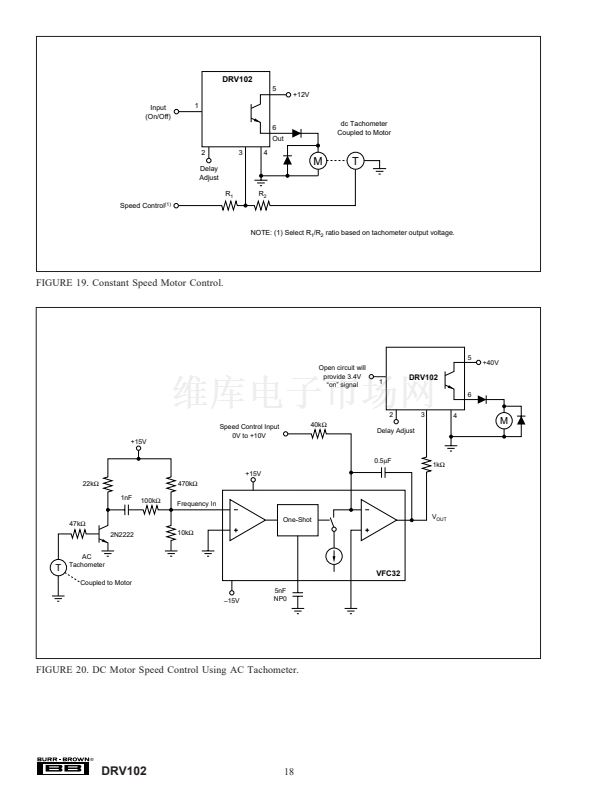

MOTOR SPEED CONTROLLERS
q
INDUSTRIAL CONTROL
q
FACTORY AUTOMATION
q
MEDICAL ANALYSIS
q
PHOTOGRAPHIC PROCESSING

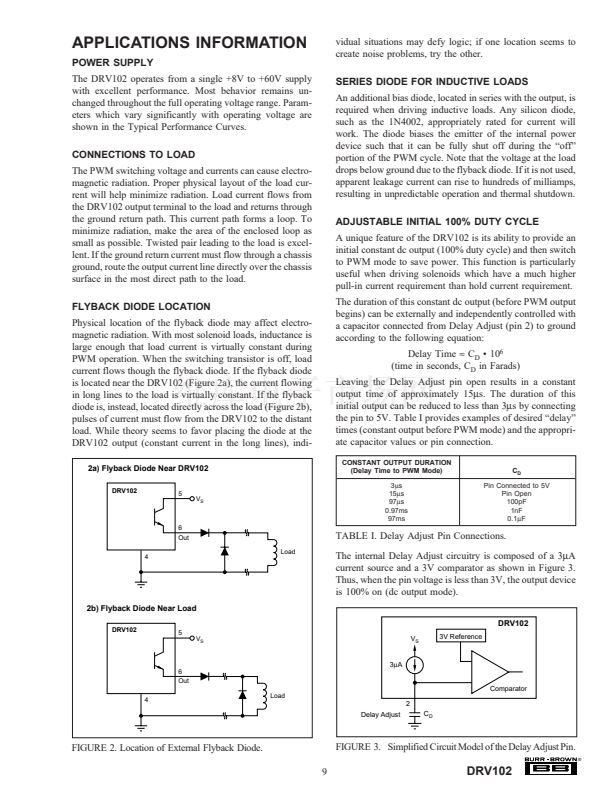

The DRV102 can be set to provide a strong initial
closure, automatically switching to a 鈥渟oft鈥?hold mode
for power savings. Duty cycle can be controlled by a
resistor, analog voltage, or digital-to-analog converter
for versatility. A flag output indicates thermal shut-
down and over/under current limit. A wide supply
range allows use with a variety of actuators.
The DRV102 is available in 7-lead staggered TO-220
package and a 7-lead surface-mount DDPAK plastic
power package. It operates from 鈥?5擄C to +125擄C.

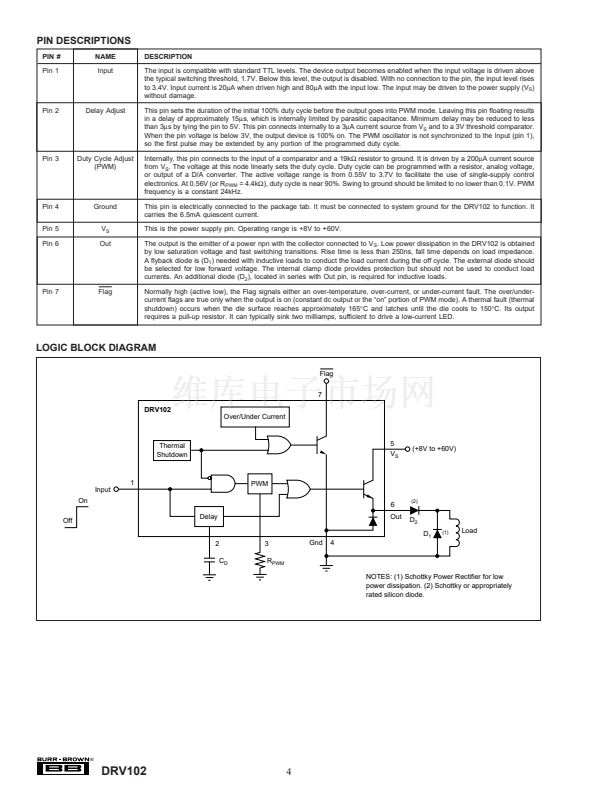

Flag
7
DRV102
Thermal Shutdown
Over/Under Current
24kHz
Oscillator
Input
1
PWM
Delay
2
Delay
Adjust
3
Gnd
(1)
4
6
Out
Load
5
V
S

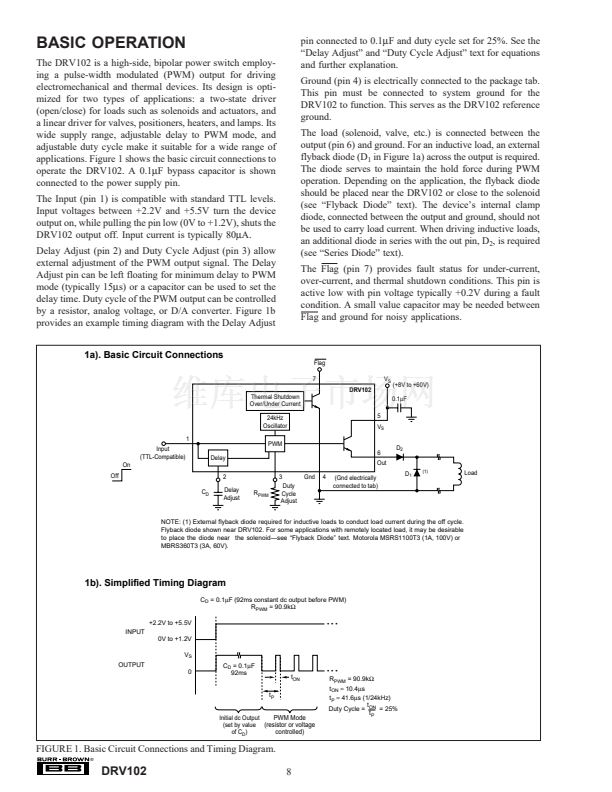

DESCRIPTION
The DRV102 is a high-side power switch employing
a pulse-width modulated (PWM) output. Its rugged
design is optimized for driving electromechanical de-
vices such as valves, solenoids, relays, actuators, and
positioners. The DRV102 is also ideal for driving
thermal devices such as heaters and lamps. PWM
operation conserves power and reduces heat rise in the
device, resulting in higher reliability. In addition, ad-
justable PWM allows fine control of the power deliv-
ered to the load. Time from dc output to PWM output
is externally adjustable.
(+8V to +60V)
On (TTL-Compatible)
Off
Duty Cycle
Adjust
(Gnd electrically
connected to tab)
International Airport Industrial Park 鈥?Mailing Address: PO Box 11400, Tucson, AZ 85734 鈥?Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 鈥?Tel: (520) 746-1111
Twx: 910-952-1111 鈥?Internet: http://www.burr-brown.com/ 鈥?Cable: BBRCORP 鈥?Telex: 066-6491 鈥?FAX: (520) 889-1510 鈥?Immediate Product Info: (800) 548-6132
漏
1998 Burr-Brown Corporation
PDS-1471B
Printed in U.S.A. March, 1999
