DM74AS640 3-STATE Octal Bus Transceiver
October 1986
Revised March 2000
DM74AS640
3-STATE Octal Bus Transceiver
General Description
This advanced Schottky device contains 8 pairs of 3-
STATE logic elements configured as octal bus transceiver.
This circuit is designed for use in memory, microprocessor
systems and in asynchronous bidirectional data buses.
This device transmits data from the A bus to the B bus, or
vice versa, depending upon the logic level of the direction
control input (DIR). The enable input (G) can be used to
disable the devices, effecting isolation of buses A and B.
The 3-STATE circuitry also contains a protection feature
that prevents these transceivers from glitching the bus dur-
ing power-up or power-down.
Features
s
Switching specifications at 50 pF
s
Switching specifications guaranteed over full tempera-
ture and V
CC
range
s
Advanced oxide-isolated, ion-implanted Schottky TTL
process
s
Functionally and pin for pin compatible with Schottky,
low power Schottky, and advanced low power Schottky
TTL counterpart
s
Improved AC performance over Schottky, low power
Schottky, and advanced low power Schottky counter-
parts
s
3-STATE outputs independently controlled on A and B
buses
s
Low output impedance drive to drive terminated trans-
mission lines to 133鈩?/div>
s
Specified to interface with CMOS at V
OH
=
V
CC
鈭?/div>
2V
Ordering Code:
Order Number
DM74AS640WM
DM74AS640N
Package Number
M20B
N20A
Package Description
20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide
20-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter 鈥淴鈥?to the ordering code.
Connection Diagram
Function Table
Control Inputs
Operation
G
L
L
H
H
=
HIGH Logic Level
L
=
LOW Logic Level
X
=
Immaterial
DIR
L
H
X
B Data to A Bus
A Data to B Bus
Isolation
Logic Diagram
Top View
漏 2000 Fairchild Semiconductor Corporation
DS006708
www.fairchildsemi.com
1

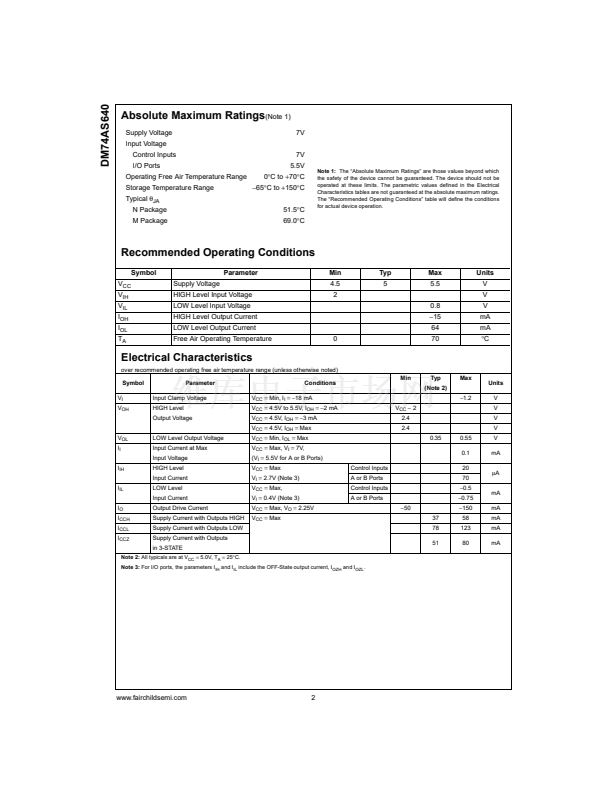

2

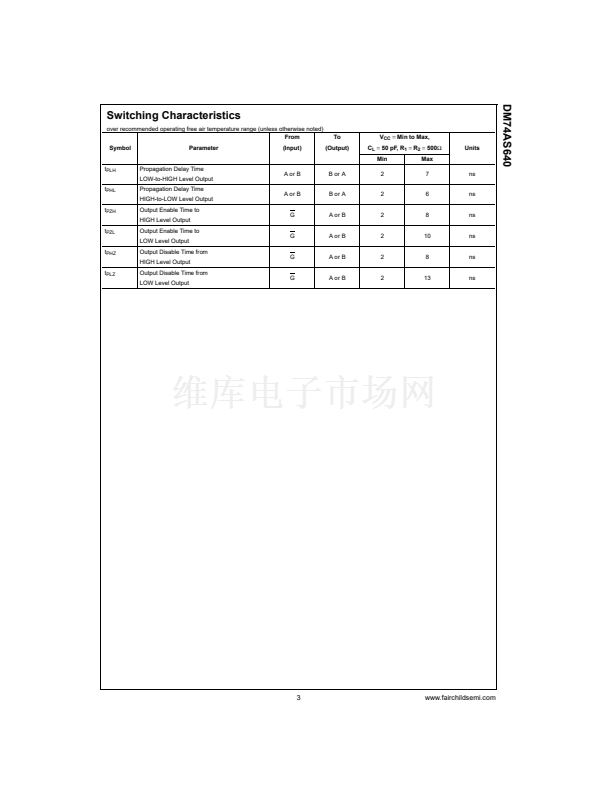

3
4
5
