DM74AS00M Datasheet

  • DM74AS00M

  • Quad 2-Input NAND Gate

  • 49.98KB

  • 4頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

DM74AS00 Quad 2-Input NAND Gate
September 1986
Revised March 2000
DM74AS00
Quad 2-Input NAND Gate
General Description
This device contains four independent gates, each of which
performs the logic NAND function.
Features
s
Switching specifications at 50 pF
s
Switching specifications guaranteed over full
temperature and V
CC
range
s
Advanced oxide-isolated, ion-implanted Schottky
TTL process
s
Functionally and pin for pin compatible with Schottky,
low power Schottky, and advanced low power Schottky
TTL counterpart
s
Improved AC performance over Schottky, low power
Schottky, and advanced low power Schottky
counterparts
Ordering Code:
Order Number
DM74AS00M
DM74AS00N
Package Number
M14A
N14A
Package Description
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter 鈥淴鈥?to the ordering code.
Connection Diagram
Function Table
Y
=
AB
Inputs
A
L
L
H
H
H
=
HIGH Logic Level
L
=
LOW Logic Level
Output
B
L
H
L
H
Y
H
H
H
L
漏 2000 Fairchild Semiconductor Corporation
DS006105
www.fairchildsemi.com

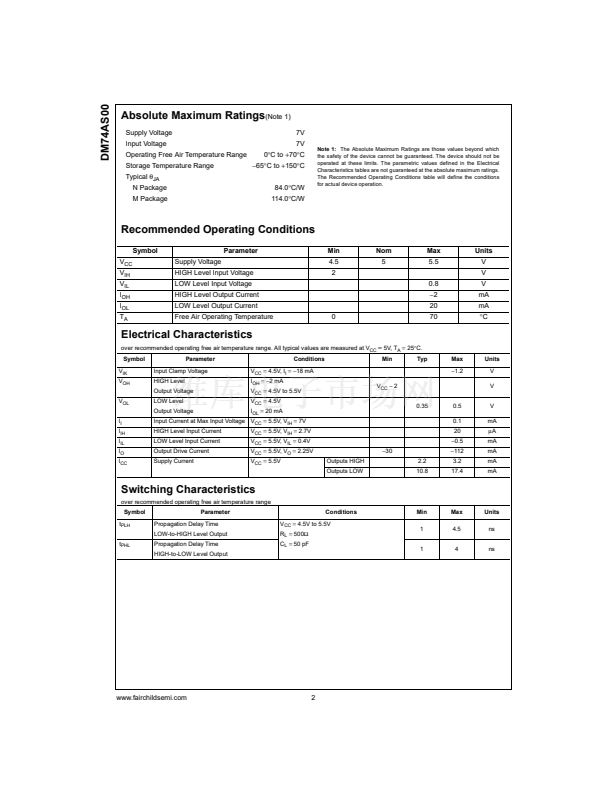

DM74AS00M 產品屬性

  • 1,100

  • 集成電路 (IC)

  • 邏輯 - 柵極和逆變器

  • 74AS

  • 與非門

  • 4

  • 2

  • -

  • 4.5 V ~ 5.5 V

  • -

  • 2mA，20mA

  • 0.8V

  • 2V

  • 4.5ns @ 4.5V ~ 5.5V，50pF

  • 0°C ~ 70°C

  • 表面貼裝

  • 14-SOIC

  • 14-SOIC（0.154"，3.90mm 寬）

  • 管件
