Description
The DD02-999 directional detector is an alternative to the
DD01-999 with improved insertion loss and directivity with slightly
lower sensitivity. It is designed for handset power monitor applica-
tions from 800 MHz to 3 GHz. It is packaged in the small footprint,
SC-88 (6 lead SC-70) package. The DD02-999 incorporates a
directional coupler and two GaAs Schottky diodes on a monolithic
GaAs chip. By applying forward DC bias to both Schottky diodes,
the DD02-999 may be conveniently temperature compensated.

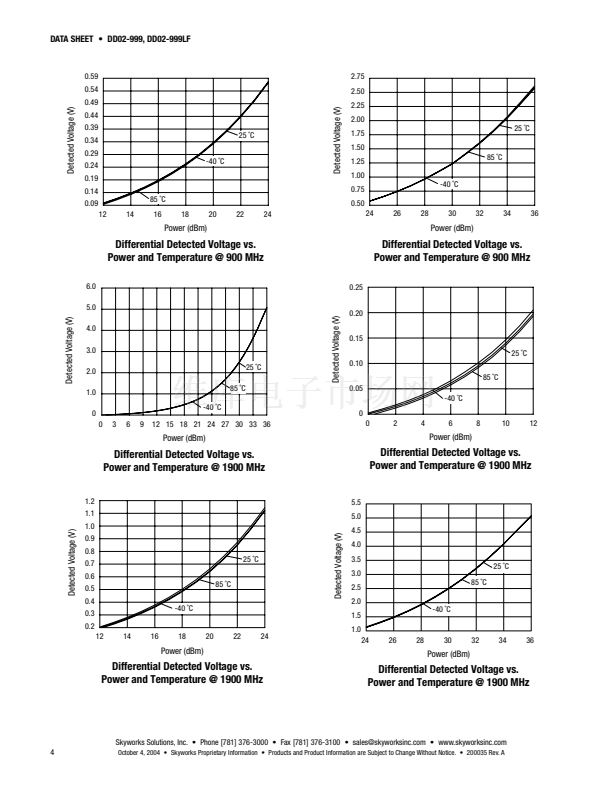

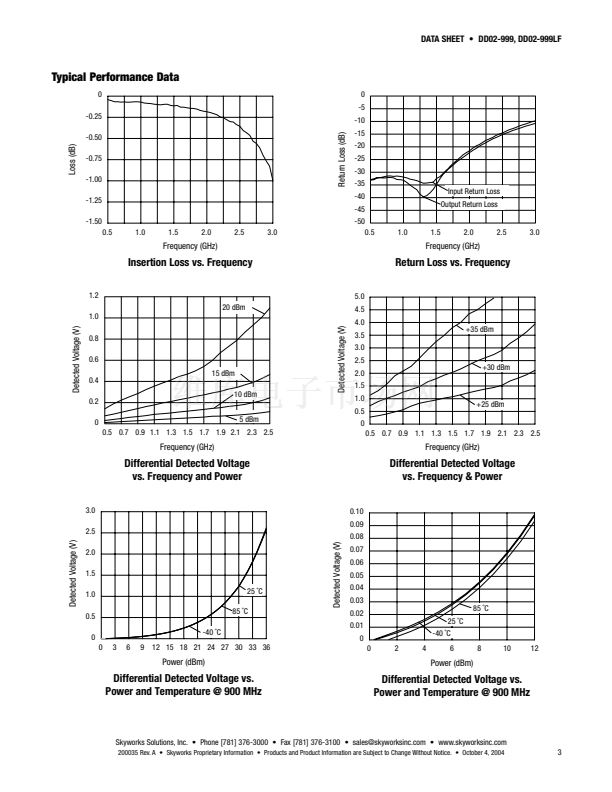

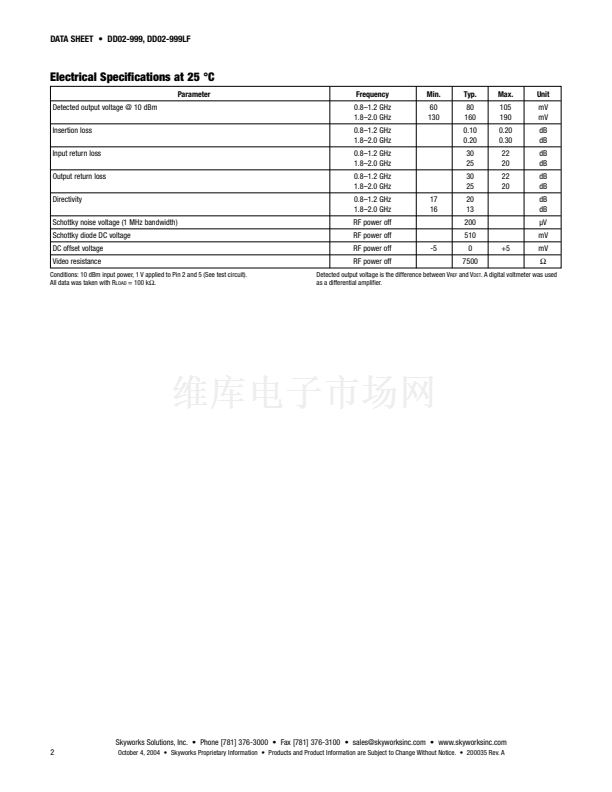

The DD02-999 is characterized from 500 MHz to 3 GHz and
generates a detected signal at 1.8 GHz of approximately 190 mV
at 10 mW input power. Each Schottky diode is forward biased to
approximately 5 碌A.

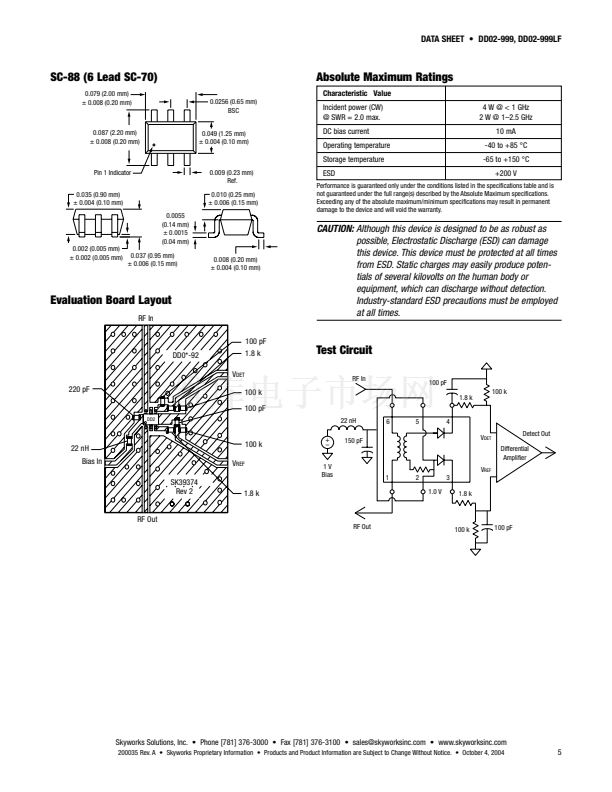

Pin Out
RF Out
DC Bias/AC GND
Temp Comp Out
RF In
DC Bias/AC GND
Detected Out
1
6
DD2
2
3
5
4
NEW
Skyworks offers lead (Pb)-free 鈥渆nvironmentally
friendly鈥?packaging that is RoHS compliant
(European Parliament for the Restriction of
Hazardous Substances).
Skyworks Solutions, Inc. 鈥?Phone [781] 376-3000 鈥?Fax [781] 376-3100 鈥?sales@skyworksinc.com 鈥?www.skyworksinc.com
200035 Rev. A 鈥?Skyworks Proprietary Information 鈥?Products and Product Information are Subject to Change Without Notice. 鈥?October 4, 2004
