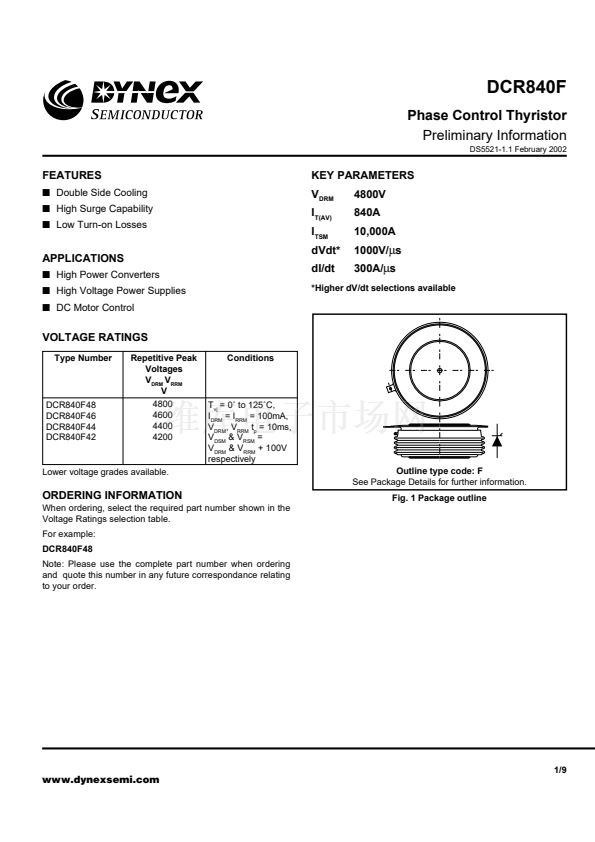

DCR840F

DCR840F

Phase Control Thyristor

Preliminary Information

DS5521-1.1 February 2002

FEATURES

s

Double Side Cooling

s

High Surge Capability

s

Low Turn-on Losses

KEY PARAMETERS

V

DRM

I

T(AV)

I

TSM

dVdt*

dI/dt

4800V

840A

10,000A

1000V/

碌

s

300A/

碌

s

APPLICATIONS

s

High Power Converters

s

High Voltage Power Supplies

s

DC Motor Control

*Higher dV/dt selections available

VOLTAGE RATINGS

Type Number

Repetitive Peak

Voltages

V

DRM

V

RRM

V

4800

4600

4400

4200

Conditions

DCR840F48

DCR840F46

DCR840F44

DCR840F42

T

vj

= 0藲 to 125藲C,

I

DRM

= I

RRM

= 100mA,

V

DRM

, V

RRM

t

p

= 10ms,

V

DSM

& V

RSM

=

V

DRM

& V

RRM

+ 100V

respectively

Outline type code: F

See Package Details for further information.

Fig. 1 Package outline

Lower voltage grades available.

ORDERING INFORMATION

When ordering, select the required part number shown in the

Voltage Ratings selection table.

For example:

DCR840F48

Note: Please use the complete part number when ordering

and quote this number in any future correspondance relating

to your order.

1/9

www.dynexsemi.com
