DCR818SG

DCR818SG

Phase Control Thyristor

Advance Information

Supersedes October 2000 version, DS4241-5.1

DS4241-6.0 July 2001

FEATURES

s

Double Side Cooling

s

High Surge Capability

KEY PARAMETERS

V

DRM

I

T(AV)

I

TSM

dVdt*

dI/dt

4800V

529A

7500A

1000V/

碌

s

150A/

碌

s

APPLICATIONS

s

High Power Drives

s

High Voltage Power Supplies

s

DC Motor Control

s

Welding

s

Battery Chargers

*Higher dV/dt selections available

VOLTAGE RATINGS

Type Number

Repetitive Peak

Voltages

V

DRM

V

RRM

V

4800

4700

4600

4500

4400

Conditions

DCR818SG48

DCR818SG47

DCR818SG46

DCR818SG45

DCR818SG44

T

vj

= 0藲 to 125藲C,

I

DRM

= I

RRM

= 75mA,

V

DRM

, V

RRM

t

p

= 10ms,

V

DSM

& V

RSM

=

V

DRM

& V

RRM

+ 100V

Respectively

Outline type code: G.

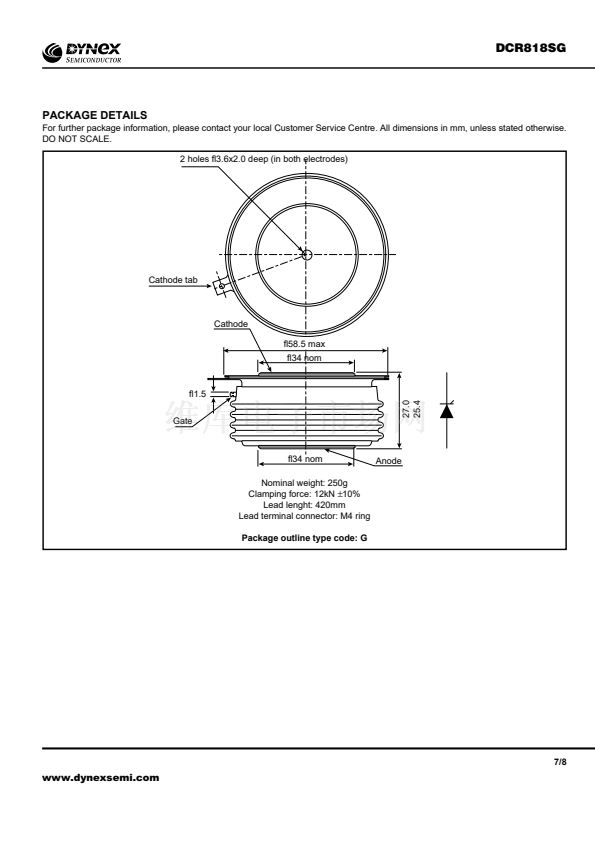

See Package Details for further information.

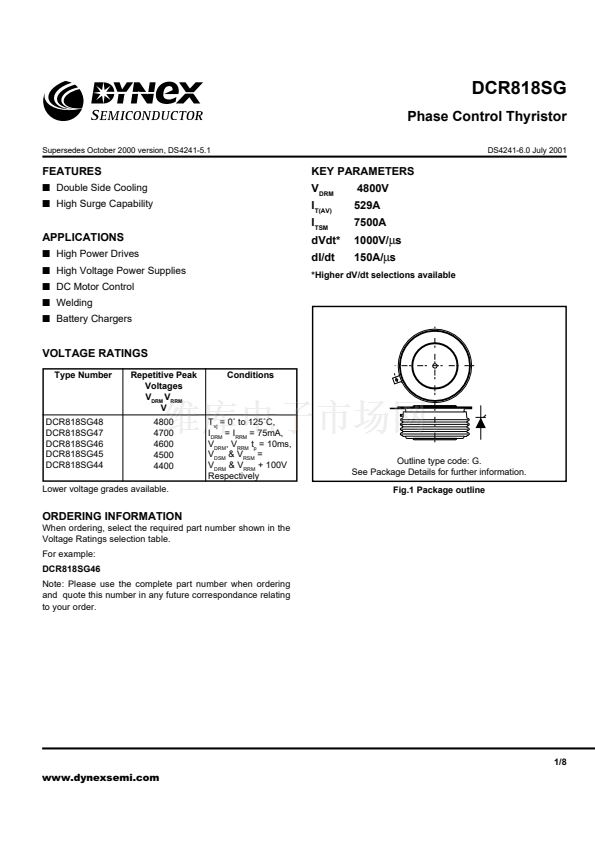

Fig.1 Package outline

Lower voltage grades available.

ORDERING INFORMATION

When ordering, select the required part number shown in the

Voltage Ratings selection table.

For example:

DCR818SG46

Note: Please use the complete part number when ordering

and quote this number in any future correspondance relating

to your order.

1/8

www.dynexsemi.com

next
