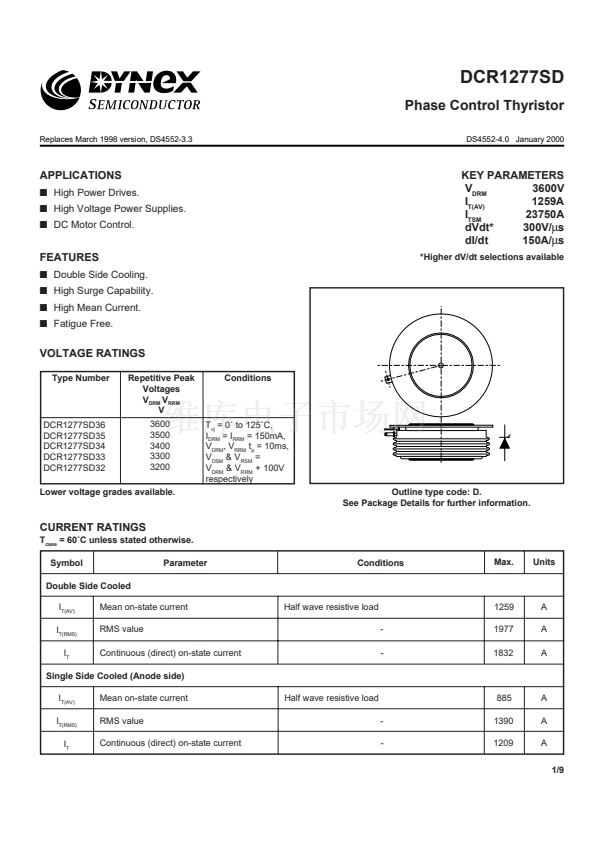

DCR1277SD

DCR1277SD

Phase Control Thyristor

Replaces March 1998 version, DS4552-3.3

DS4552-4.0 January 2000

APPLICATIONS

s

High Power Drives.

s

High Voltage Power Supplies.

s

DC Motor Control.

KEY PARAMETERS

V

DRM

3600V

I

T(AV)

1259A

I

TSM

23750A

dVdt*

300V/

碌

s

dI/dt

150A/

碌

s

*Higher dV/dt selections available

FEATURES

s

Double Side Cooling.

s

High Surge Capability.

s

High Mean Current.

s

Fatigue Free.

VOLTAGE RATINGS

Type Number

Repetitive Peak

Voltages

V

DRM

V

RRM

V

3600

3500

3400

3300

3200

Conditions

DCR1277SD36

DCR1277SD35

DCR1277SD34

DCR1277SD33

DCR1277SD32

T

vj

= 0藲 to 125藲C,

I

DRM

= I

RRM

= 150mA,

V

DRM

, V

RRM

t

p

= 10ms,

V

DSM

& V

RSM

=

V

DRM

& V

RRM

+ 100V

respectively

Outline type code: D.

See Package Details for further information.

Lower voltage grades available.

CURRENT RATINGS

T

case

= 60藲C unless stated otherwise.

Symbol

Double Side Cooled

I

T(AV)

I

T(RMS)

I

T

Mean on-state current

RMS value

Continuous (direct) on-state current

Half wave resistive load

-

-

1259

1977

1832

A

A

A

Parameter

Conditions

Max.

Units

Single Side Cooled (Anode side)

I

T(AV)

I

T(RMS)

I

T

Mean on-state current

RMS value

Continuous (direct) on-state current

Half wave resistive load

-

-

885

1390

1209

A

A

A

1/9
