DCR021205P Datasheet

  • DCR021205P

  • Miniature, 2W Isolated REGULATED DC/DC CONVERTERS

  • 173.20KB

  • 12頁

  • BB

掃碼查看芯片數據手冊

上傳產品規(guī)格書

PDF預覽

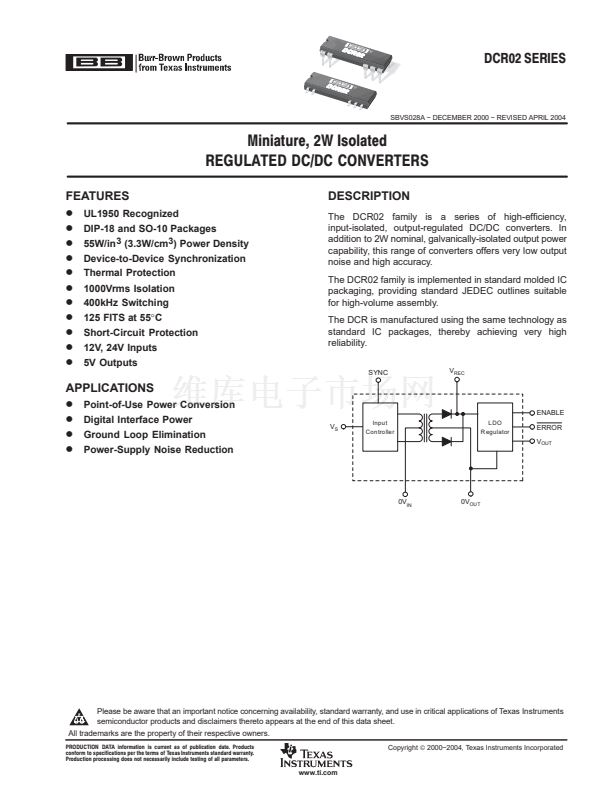

DCR02 SERIES
SBVS028A 鈭?DECEMBER 2000 鈭?REVISED APRIL 2004
Miniature, 2W Isolated
REGULATED DC/DC CONVERTERS
FEATURES
D
UL1950 Recognized
D
DIP-18 and SO-10 Packages
D
55W/in
3
(3.3W/cm
3
) Power Density
D
Device-to-Device Synchronization
D
Thermal Protection
D
1000Vrms Isolation
D
400kHz Switching
D
125 FITS at 55擄C
D
Short-Circuit Protection
D
12V, 24V Inputs
D
5V Outputs
APPLICATIONS
D
Point-of-Use Power Conversion
D
Digital Interface Power
D
Ground Loop Elimination
D
Power-Supply Noise Reduction
DESCRIPTION
The DCR02 family is a series of high-efficiency,
input-isolated, output-regulated DC/DC converters. In
addition to 2W nominal, galvanically-isolated output power
capability, this range of converters offers very low output
noise and high accuracy.
The DCR02 family is implemented in standard molded IC
packaging, providing standard JEDEC outlines suitable
for high-volume assembly.
The DCR is manufactured using the same technology as
standard IC packages, thereby achieving very high
reliability.
SYNC
V
REC
ENABLE
V
S
Input
Controller
LDO
R egulator
ERROR
V
OUT
0V
IN
0V
OUT
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments
semiconductor products and disclaimers thereto appears at the end of this data sheet.
All trademarks are the property of their respective owners.
PRODUCTION DATA information is current as of publication date. Products
conform to specifications per the terms of Texas Instruments standard warranty.
Production processing does not necessarily include testing of all parameters.
Copyright
錚?/div>
2000鈭?004, Texas Instruments Incorporated
www.ti.com
