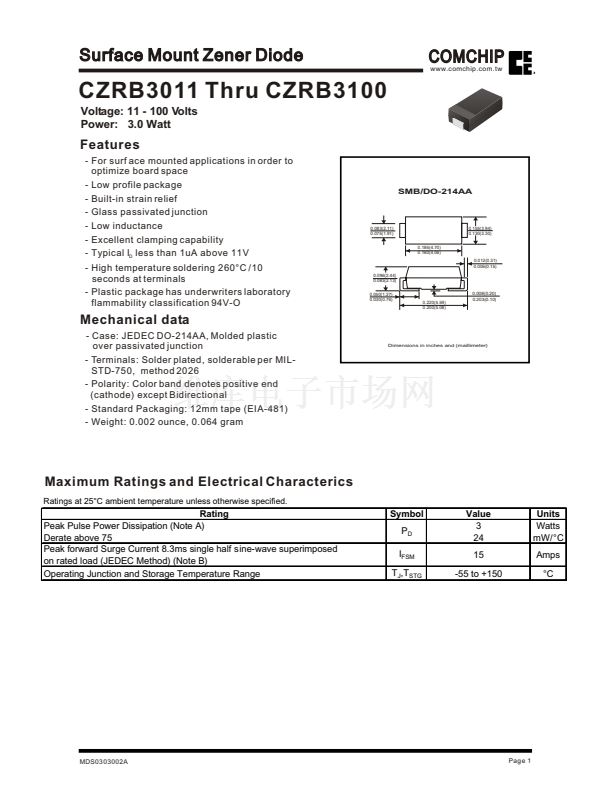

Surface Mount Zener Diode

COMCHIP

www.comchip.com.tw

CZRB3011 Thru CZRB3100

Voltage: 11 - 100 Volts

Power: 3.0 Watt

Features

- For surf ace mounted applications in order to

optimize board space

- Low profile package

- Built-in strain relief

- Glass passivated junction

- Low inductance

- Excellent clamping capability

- Typical I

D

less than 1uA above 11V

- High temperature soldering 260擄C /10

seconds at terminals

- Plastic package has underwriters laboratory

flammability classification 94V-O

SMB/DO-214AA

0.083(2.11)

0.075(1.91)

0.185(4.70)

0.160(4.06)

0.155(3.94)

0.130(3.30)

0.012(0.31)

0.006(0.15)

0.096(2.44)

0.083(2.13)

0.050(1.27)

0.030(0.76)

0.008(0.20)

0.203(0.10)

0.220(5.59)

0.200(5.08)

Mechanical data

- Case: JEDEC DO-214AA, Molded plastic

over passivated junction

- Terminals: Solder plated, solderable per MIL-

STD-750, method 2026

- Polarity: Color band denotes positive end

(cathode) except Bidirectional

- Standard Packaging: 12mm tape (EIA-481)

- Weight: 0.002 ounce, 0.064 gram

Dimensions in inches and (maillimeter)

Maximum Ratings and Electrical Characterics

Ratings at 25擄C ambient temperature unless otherwise specified.

Rating

Peak Pulse Power Dissipation (Note A)

Derate above 75

Peak forward Surge Current 8.3ms single half s ine-wave superimposed

on rated load (JEDEC Method) (Note B)

Operating Junction and Storage Temperature Range

Symbol

P

D

I

FSM

T

J

,T

STG

Value

3

24

15

-55 to +150

Units

Watts

mW/擄C

Amps

擄C

MDS0303002A

Page 1
