CYII4SC014KAA-GTC Datasheet

  • CYII4SC014KAA-GTC

  • 14Megapixel CMOS Image Sensor

  • 27頁

  • CYPRESS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

CYII4SC014KAA-GTC
CYII4SM014KAA-GEC

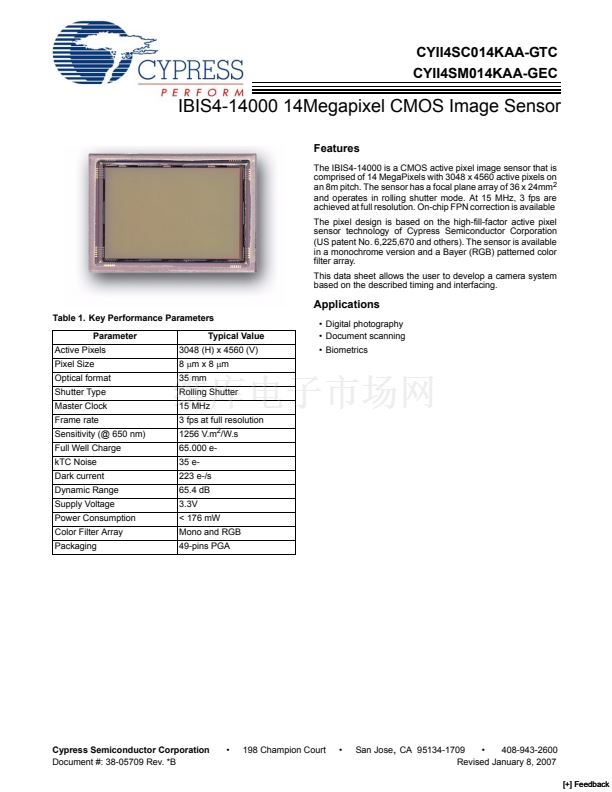

IBIS4-14000 14Megapixel CMOS Image Sensor
Features
The IBIS4-14000 is a CMOS active pixel image sensor that is
comprised of 14 MegaPixels with 3048 x 4560 active pixels on
an 8m pitch. The sensor has a focal plane array of 36 x 24mm
2
and operates in rolling shutter mode. At 15 MHz, 3 fps are
achieved at full resolution. On-chip FPN correction is available
The pixel design is based on the high-fill-factor active pixel
sensor technology of Cypress Semiconductor Corporation
(US patent No. 6,225,670 and others). The sensor is available
in a monochrome version and a Bayer (RGB) patterned color
filter array.
This data sheet allows the user to develop a camera system
based on the described timing and interfacing.
Applications
Table 1. Key Performance Parameters
Parameter
Active Pixels
Pixel Size
Optical format
Shutter Type
Master Clock
Frame rate
Sensitivity (@ 650 nm)
Full Well Charge
kTC Noise
Dark current
Dynamic Range
Supply Voltage
Power Consumption
Color Filter Array
Packaging
Typical Value
3048 (H) x 4560 (V)
8
碌m
x 8
碌m
35 mm
Rolling Shutter
15 MHz
3 fps at full resolution
1256 V.m
2
/W.s
65.000 e-
35 e-
223 e-/s
65.4 dB
3.3V
< 176 mW
Mono and RGB
49-pins PGA
鈥?Digital photography
鈥?Document scanning
鈥?Biometrics
Cypress Semiconductor Corporation
Document #: 38-05709 Rev. *B
鈥?/div>
198 Champion Court
鈥?/div>
San Jose
,
CA 95134-1709
鈥?/div>
408-943-2600
Revised January 8, 2007
[+] Feedback

CYII4SC014KAA-GTC 產品屬性

  • 1

  • 傳感器，轉換器

  • 圖像，相機

  • -

  • 8µm x 8µm

  • 3048H x 4560V

  • 3

  • 3.3V

  • CMOS 成像

  • 49-PGA

  • 49-PGA

  • 托盤

  • *

  • IBIS4-14000-CIBIS4-14000-C-ND
