chronous peripheral circuitry and a 2-bit counter for internal
burst operation. All synchronous inputs are gated by registers
controlled by a positive-edge-triggered Clock Input (CLK). The
synchronous inputs include all addresses, all data inputs, ad-
dress-pipelining Chip Enable (CE), Burst Control Inputs
(ADSC, ADSP, and ADV), Write Enables (BWa, BWb, BWc,
BWd, and BWE), and Global Write (GW).
Asynchronous inputs include the output enable (OE) and burst
mode control (MODE). The data outputs (Q), enabled by OE,
are also asynchronous.
Addresses and chip enables are registered with either Ad-
dress Status Processor (ADSP) or Address Status Controller
(ADSC) input pins. Subsequent burst addresses can be inter-
nally generated as controlled by the Burst Advance pin (ADV).
Address, data inputs, and write controls are registered on-chip
to initiate self-timed Write cycle. Write cycles can be one to
four bytes wide as controlled by the write control inputs. Indi-
vidual byte write allows individual byte to be written. BWa con-
trols DQ1鈥揇Q8 and DP1. BWb controls DQ9鈥揇Q16 and DP2.
BWc controls DQ17鈥揇Q24and DP3. BWd controls
DQ25鈥揇Q32 and DP4. BWa, BWb BWc, and BWd can be
active only with BWE being LOW. GW being LOW causes all
bytes to be written. WRITE pass-through capability allows writ-
ten data available at the output for the next ReaD cycle. This
device also incorporates pipelined enable circuit for easy
depth expansion without penalizing system performance.
All inputs and outputs of the CY7C1381CV25 and the
CY7C1383CV25 are JEDEC standard JESD8-5 compatible.

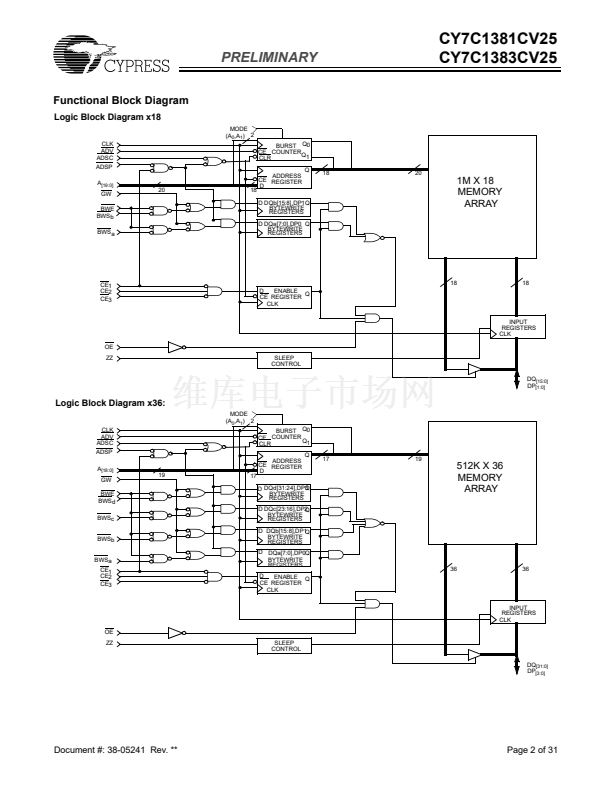

Functional Description
The Cypress Synchronous Burst SRAM family employs
high-speed, low power CMOS designs using advanced single
layer polysilicon, three-layer metal technology. Each memory
cell consists of six transistors.
The CY7C1381CV25 and CY7C1383CV25 SRAMs integrate
524,288x36 and 1,048,576x18SRAM cells with advanced syn-
Selection Guide
133 MHz
Maximum Access Time
Maximum Operating Current
Maximum CMOS Standby Current
6.5
210
70
117 MHz
7.5
190
70
100 MHz
8.5
175
70
Unit
ns
mA
mA
