CXP81120 Datasheet

  • CXP81120

  • CMOS 8-bit Single Chip Microcomputer

  • 460.86KB

  • 27頁

  • SONY   SONY

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

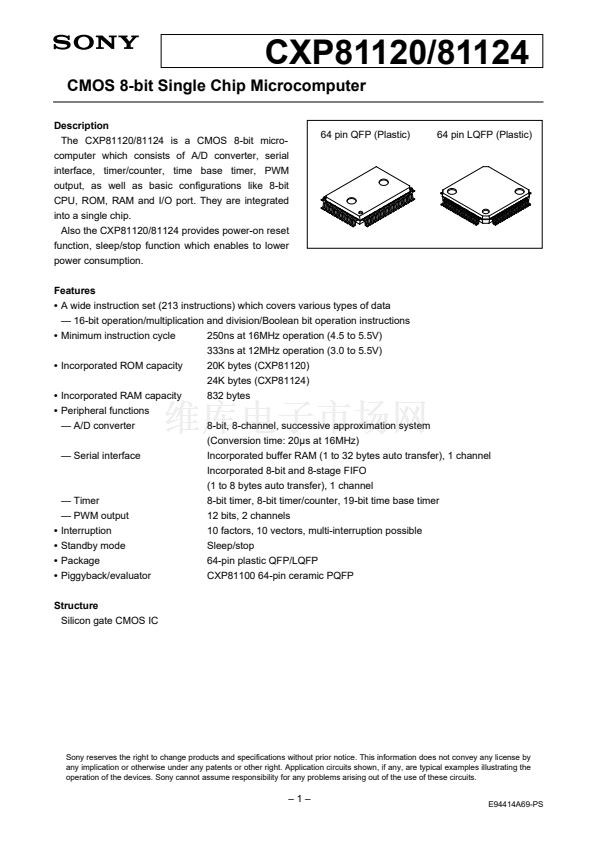

CXP81120/81124
CMOS 8-bit Single Chip Microcomputer
Description
The CXP81120/81124 is a CMOS 8-bit micro-
computer which consists of A/D converter, serial
interface, timer/counter, time base timer, PWM
output, as well as basic configurations like 8-bit
CPU, ROM, RAM and I/O port. They are integrated
into a single chip.
Also the CXP81120/81124 provides power-on reset
function, sleep/stop function which enables to lower
power consumption.
Features
鈥?/div>
A wide instruction set (213 instructions) which covers various types of data
鈥?16-bit operation/multiplication and division/Boolean bit operation instructions
鈥?/div>
Minimum instruction cycle
250ns at 16MHz operation (4.5 to 5.5V)
鈥?/div>
Incorporated ROM capacity
鈥?/div>
Incorporated RAM capacity
鈥?/div>
Peripheral functions
鈥?A/D converter
鈥?Serial interface
333ns at 12MHz operation (3.0 to 5.5V)
20K bytes (CXP81120)
24K bytes (CXP81124)
832 bytes
8-bit, 8-channel, successive approximation system
(Conversion time: 20碌s at 16MHz)
Incorporated buffer RAM (1 to 32 bytes auto transfer), 1 channel
Incorporated 8-bit and 8-stage FIFO
(1 to 8 bytes auto transfer), 1 channel
8-bit timer, 8-bit timer/counter, 19-bit time base timer
12 bits, 2 channels
10 factors, 10 vectors, multi-interruption possible
Sleep/stop

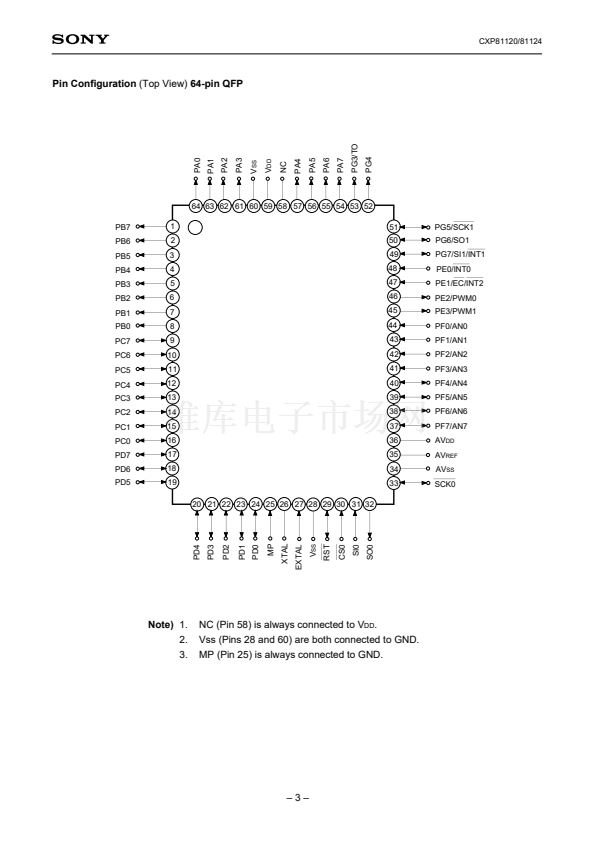

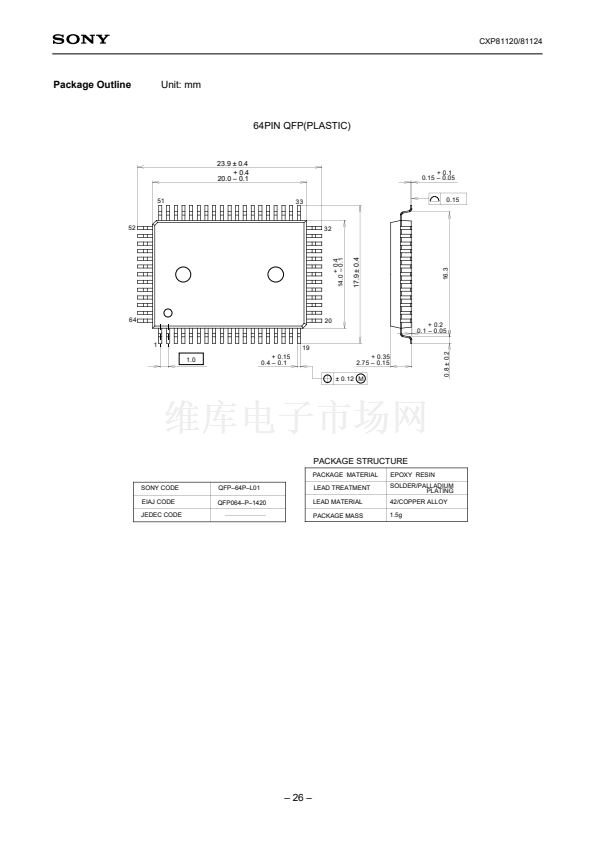

64-pin plastic QFP/LQFP
CXP81100 64-pin ceramic PQFP
64 pin QFP (Plastic)
64 pin LQFP (Plastic)
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?Timer
鈥?PWM output
Interruption
Standby mode
Package
Piggyback/evaluator
Structure
Silicon gate CMOS IC
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
鈥?鈥?/div>
E94414A69-PS
