CXP750064/750072/750080
CMOS 8-bit Single Chip Microcomputer
Description
The CXP750064/750072/750080 are the CMOS 8-bit
single chip microcomputer integrating on a single chip
an A/D converter, serial interface, timer/counter, time-
base timer, on-screen display function, I
2
C bus interface,
PWM output, remote control reception circuit, HSYNC
counter, watchdog timer, 32kHz timer/counter besides
the basic configurations of 8-bit CPU, ROM, RAM, I/O
ports.
The CXP750064/750072/750080 also provide a sleep
function that enables to lower the power consumption.

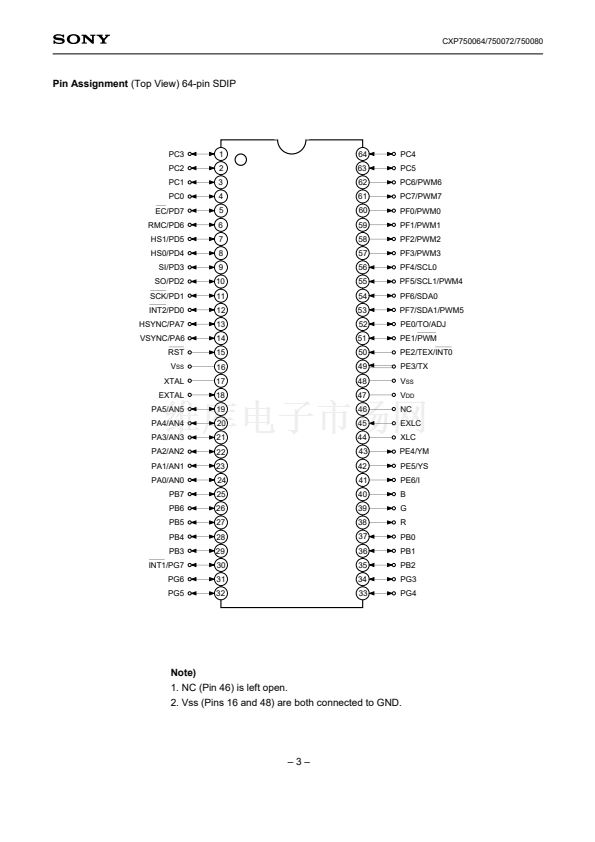

64 pin SDIP (Plastic)
64 pin QFP (Plastic)
Features
鈥?/div>
A wide instruction set (213 instructions) which covers
Structure
various types of data
Silicon gate CMOS IC
鈥?16-bit operation/multiplication and division/
Boolean bit operation instructions
鈥?/div>
Minimum instruction cycle
167ns at 24MHz operation
122碌s at 32kHz operation
鈥?/div>
Incorporated ROM 64K bytes (CXP750064)
72K bytes (CXP750072)
80K bytes (CXP750080)
鈥?/div>
Incorporated RAM 1984 bytes
(Excludes VRAM for on-screen display)
鈥?/div>
Peripheral functions
鈥?A/D converter
8-bit 6-channel successive approximation method
(Conversion time of 3.25碌s at 16MHz)
鈥?Serial interface
8-bit clock sync type, 1 channel
鈥?Timer
8-bit timer
8-bit timer/counter
19-bit time-base timer
32 kHz timer/counter
鈥?On-screen display (OSD) function
24
脳
32 dots, 512 character types,
15 character colors, 2 lines
脳
32 characters,
frame background 8 colors/ half blanking,
background on full screen 15 colors/ half blanking
edging/ shadowing/ rounding for every line,
background with shadow for every character, double scanning,
sprite OSD,
24
脳
32 dots, 1 screen, 8 colors for every dot
2
C bus interface
鈥揑
鈥?PWM output
8 bits, 8 channels
14 bits, 1 channel
鈥?Remote control reception circuit
8-bit pulse measurement counter, 6-stage FIFO
鈥?HSYNC counter
2 channels
鈥?Watchdog timer
鈥?/div>
Interruption
13 factors, 13 vectors, multi-interruption possible
鈥?/div>
Standby mode
Sleep
鈥?/div>
Package
64-pin plastic SDIP/QFP
鈥?/div>
Piggyback/evaluator
CXP750000 64-pin ceramic PQFP/PSDIP (Supports custom font)
Perchase of Sony's I
2
C components conveys a licence under the Philips I
2
C Patent Rights to use these components
in an I
2
C system, provided that the system conforms to the I
2
C Standard Specifications as defined by Philips.
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
鈥?鈥?/div>
E02939-PS
