CXP5076/5078
CMOS 4-bit Single Chip Microcomputer
Description
CXP5076/5078 is a CMOS 4-bit microcomputer
which consists of 4-bit CPU, ROM, RAM, I/O port,
8-bit timer, 8-bit timer/counter, 18-bit time base
timer, 8-bit serial I/O, vector interruption, power on
reset function, liquid crystal displayer (LCD)
controller/driver, D/A conversion 14-bit PWM output
port, a remote control reception circuit with noise
eliminating circuit, 3-bit A/D converters, a 32kHz
timer/event counter and a power supply voltage
detection reset function. They are integrated into a
single chip with the standby function, etc. which are
to be operated at a low power consumption.
Features
鈥?/div>
Instruction cycle
80 pin QFP (Plastic)
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
1.9碌s/4.19MHz
122 碌s/32kHz
(Possible to select with the program)
ROM capacity
8192
脳
8 bits (CXP5078)
6144
脳
8 bits (CXP5076)
RAM capacity
448
脳
4 bits (Including stack, display area)
43 general purpose I/O ports
8 high current output ports
LCD controller/driver (Possible to direct drive)
鈥?Possible to select with the program the segment output of 16 to 32
鈥?Possible to select with the program the duty of static, 1/2, 1/3 and 1/4
鈥?Possible to select with the program the bias of 1/2, 1/3
14-bit PWM output for D/A conversion
Remote control reception circuit
3-bit A/D converter (8 channels per circuit)
32kHz timer/event counter
Power supply voltage detection reset function
Low voltage operation (2.5V) ..... when operating in 122碌s/32kHz
Rich wake-up function
8-bit/4-bit variable serial I/O
Arithmetic and logical operations possible between the entire ROM area, I/O area and the accumulator by
means of the memory mapped I/O
8-bit timer, 8-bit timer/event counter and 18-bit time base timer, independently controlled
2 kinds of power down modes of sleep and stop
Power on reset circuit (mask option)
Provided with 80 pin plastic QFP
Provided with 80 pin piggyback QFP (CXP5070)

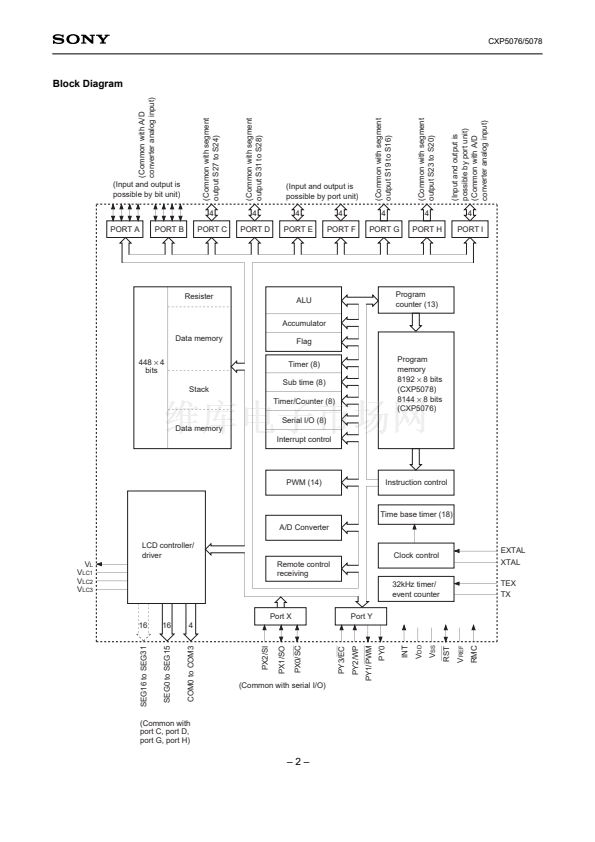

Structure
Silicon gate CMOS IC
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
鈥?鈥?/div>
E88037A78-PS
