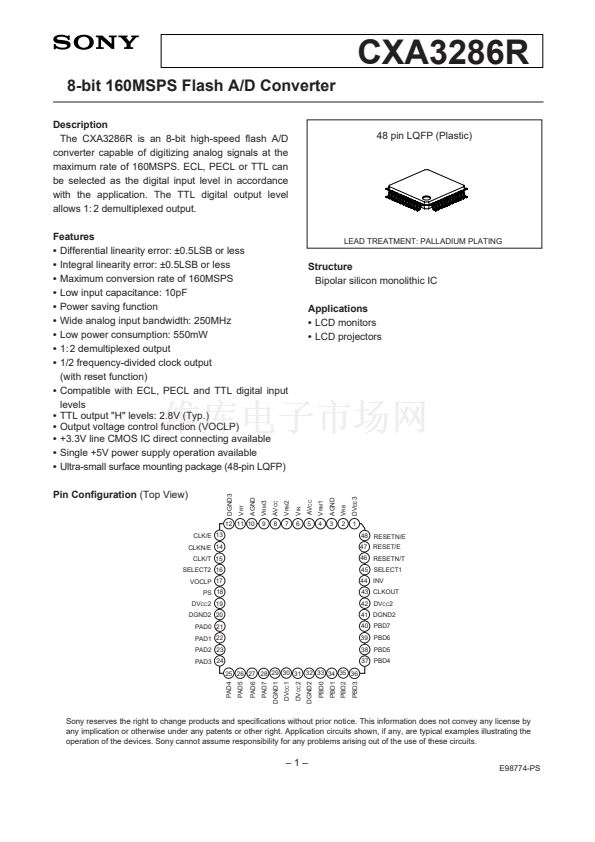

CXA3286R
8-bit 160MSPS Flash A/D Converter
Description
The CXA3286R is an 8-bit high-speed flash A/D
converter capable of digitizing analog signals at the
maximum rate of 160MSPS. ECL, PECL or TTL can
be selected as the digital input level in accordance
with the application. The TTL digital output level
allows 1: 2 demultiplexed output.
Features
鈥?/div>
Differential linearity error: 鹵0.5LSB or less
鈥?/div>
Integral linearity error: 鹵0.5LSB or less
鈥?/div>
Maximum conversion rate of 160MSPS
鈥?/div>
Low input capacitance: 10pF
鈥?/div>
Power saving function
鈥?/div>
Wide analog input bandwidth: 250MHz
鈥?/div>
Low power consumption: 550mW
鈥?/div>
1: 2 demultiplexed output
鈥?/div>
1/2 frequency-divided clock output
(with reset function)
鈥?/div>
Compatible with ECL, PECL and TTL digital input
levels
鈥?/div>
TTL output "H" levels: 2.8V (Typ.)
鈥?/div>
Output voltage control function (VOCLP)
鈥?/div>
+3.3V line CMOS IC direct connecting available
鈥?/div>
Single +5V power supply operation available
鈥?/div>
Ultra-small surface mounting package (48-pin LQFP)
DGND3

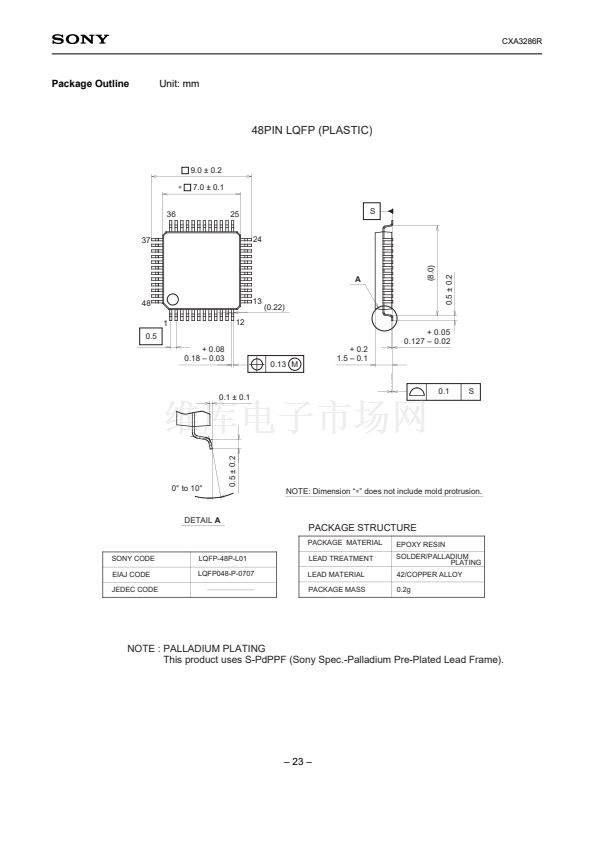

48 pin LQFP (Plastic)
LEAD TREATMENT: PALLADIUM PLATING
Structure
Bipolar silicon monolithic IC
Applications
鈥?/div>
LCD monitors
鈥?/div>
LCD projectors
V
RM
3
AV
CC
12 11 10
CLK/E 13
CLKN/E 14
CLK/T 15
SELECT2 16
VOCLP 17
PS 18
DV
CC
2 19
DGND2 20
PAD0 21
PAD1 22
PAD2 23
PAD3 24
9
8
7
6
5
V
RB
2
4
3
DV
EE
3
1
48 RESETN/E
47 RESET/E
46 RESETN/T
45 SELECT1
44 INV
43 CLKOUT
42 DV
CC
2
41 DGND2
40 PBD7
39 PBD6
38 PBD5
37 PBD4
AGND
25 26 27 28 29 30 31 32 33 34 35 36
DGND2
DGND1
PBD1
AGND
Pin Configuration
(Top View)
AV
CC
V
RM
2
V
RT
V
RM
1
V
IN
PAD7
PAD5
DV
CC
1
PBD0
PAD4
PAD6
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
鈥?鈥?/div>
DV
CC
2
PBD2
PBD3
E98774-PS
