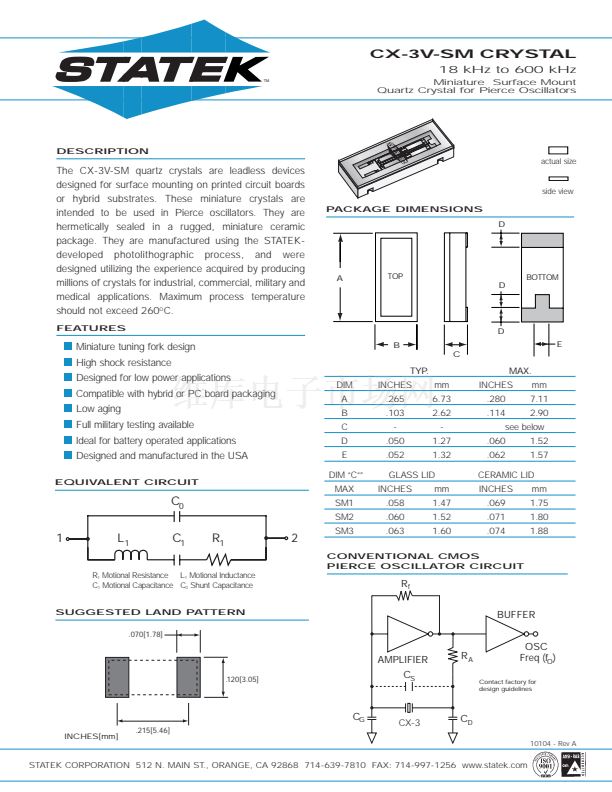

CX-3V-SM CRYSTAL
18 kHz to 600 kHz
TM
Miniature Surface Mount
Quartz Crystal for Pierce Oscillators
DESCRIPTION
actual size
The CX-3V-SM quartz crystals are leadless devices
designed for surface mounting on printed circuit boards
or hybrid substrates. These miniature crystals are
intended to be used in Pierce oscillators. They are
hermetically sealed in a rugged, miniature ceramic
package. They are manufactured using the STATEK-
developed photolithographic process, and were
designed utilizing the experience acquired by producing
millions of crystals for industrial, commercial, military and
medical applications. Maximum process temperature
should not exceed 260
O
C.
FEATURES
side view
PACKAGE DIMENSIONS
D
A
TOP
D
BOTTOM
D
B
C
E
Miniature tuning fork design
High shock resistance
Designed for low power applications
Compatible with hybrid or PC board packaging
Low aging
Full military testing available
Ideal for battery operated applications
Designed and manufactured in the USA
EQUIVALENT CIRCUIT
TYP.
DIM
A
B
C
D
E
DIM 鈥淐鈥溾€?/div>
MAX
SM1
SM2
SM3
INCHES
.265
.103
-
.050
.052
mm
6.73
2.62
-
1.27
1.32
.280
.114
.060
.062
MAX.
INCHES
mm
7.11
2.90
1.52
1.57
see below
GLASS LID
INCHES
.058
.060
.063
mm
1.47
1.52
1.60
CERAMIC LID
INCHES
.069
.071
.074
mm
1.75
1.80
1.88
C
0
1
L
1
C
1
R
1
2
CONVENTIONAL CMOS
PIERCE OSCILLATOR CIRCUIT
R
1
Motional Resistance L
1
Motional Inductance
C
1
Motional Capacitance C
0
Shunt Capacitance
SUGGESTED LAND PATTERN
.070[1.78]
R
f
BUFFER
OSC
Freq (f
O
)
Contact factory for
design guidelines
.120[3.05]
AMPLIFIER
C
S
R
A
C
G
INCHES[mm]
.215[5.46]
CX-1
CX-3
C
D
10104 - Rev A
STATEK CORPORATION 512 N. MAIN ST., ORANGE, CA 92868 714-639-7810 FAX: 714-997-1256 www.statek.com
