CAT24C23VP2IT3 Datasheet

  • CAT24C23VP2IT3

  • 32-Kb I2C CMOS Serial EEPROM

  • 18頁

  • CATALYST

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

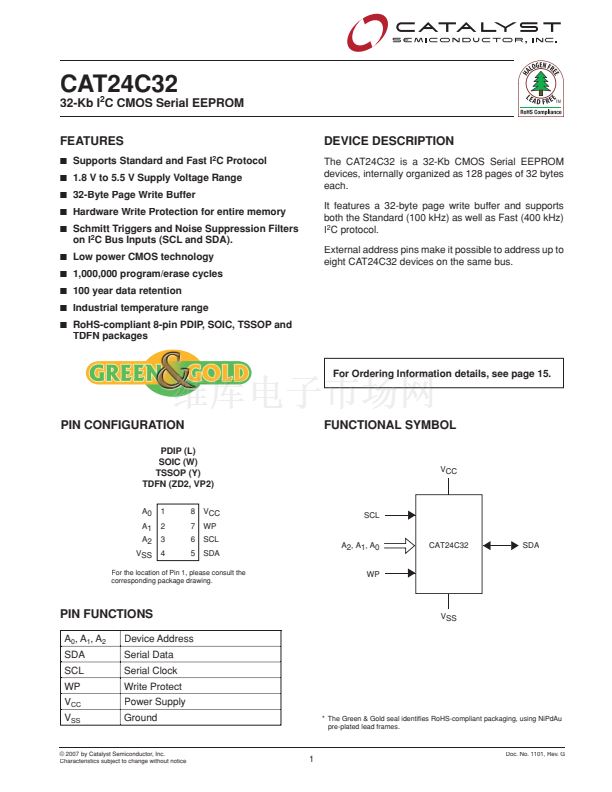

CAT24C32
FEATURES
32-Kb I
2
C CMOS Serial EEPROM
DEVICE DESCRIPTION
The CAT24C32 is a 32-Kb CMOS Serial EEPROM
devices, internally organized as 128 pages of 32 bytes
each.
It features a 32-byte page write buffer and supports
both the Standard (100 kHz) as well as Fast (400 kHz)
I
2
C protocol.
External address pins make it possible to address up to
eight CAT24C32 devices on the same bus.
鈻?/div>
Supports Standard and Fast I
2
C Protocol
鈻?/div>
1.8 V to 5.5 V Supply Voltage Range
鈻?/div>
32-Byte Page Write Buffer
鈻?/div>
Hardware Write Protection for entire memory
鈻?/div>
Schmitt Triggers and Noise Suppression Filters
on I
2
C Bus Inputs (SCL and SDA).
鈻?/div>
Low power CMOS technology
鈻?/div>
1,000,000 program/erase cycles
鈻?/div>
100 year data retention
鈻?/div>
Industrial temperature range
鈻?/div>
RoHS-compliant 8-pin PDIP, SOIC, TSSOP and
TDFN packages
For Ordering Information details, see page 15.
PIN CONFIGURATION
PDIP (L)
SOIC (W)
TSSOP (Y)

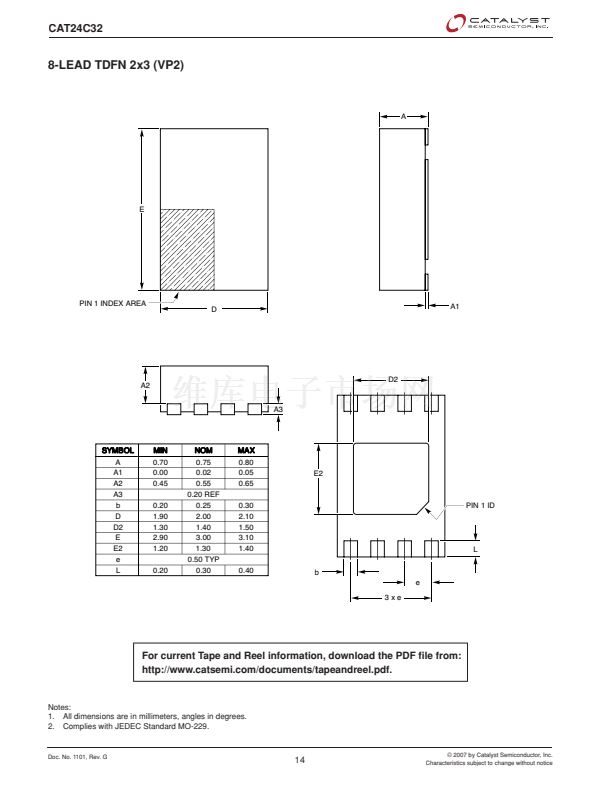

TDFN (ZD2, VP2)
A0
A1
A2
VSS
1
2
3
4
8
7
6
5
VCC
WP
SCL
SDA
FUNCTIONAL SYMBOL
VCC
SCL
A2, A1, A0
WP
CAT24C32
SDA
For the location of Pin 1, please consult the
corresponding package drawing.

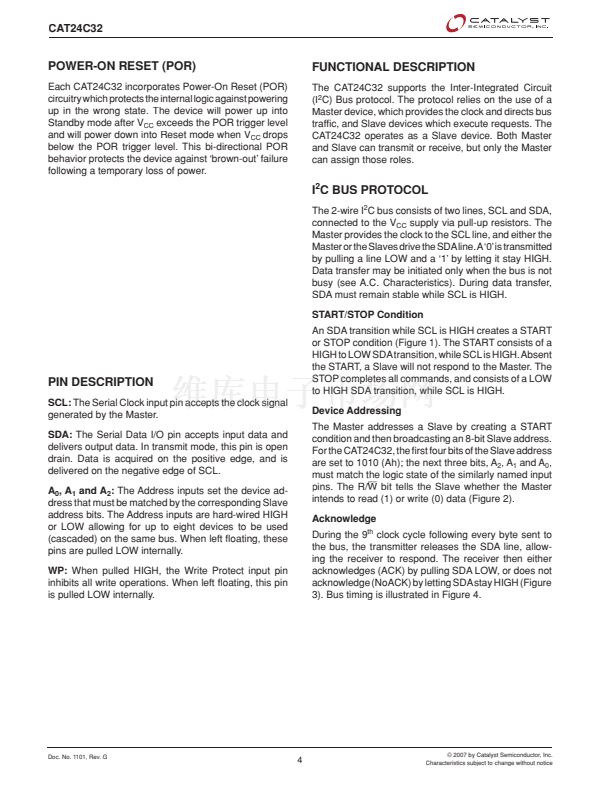

PIN FUNCTIONS
A
0
, A
1
, A
2
SDA
SCL
WP
V
CC
V
SS
Device Address
Serial Data
Serial Clock
Write Protect
Power Supply
Ground
VSS
* The Green & Gold seal identi鏗乪s RoHS-compliant packaging, using NiPdAu
pre-plated lead frames.
漏 2007 by Catalyst Semiconductor, Inc.
Characteristics subject to change without notice
1
Doc. No. 1101, Rev. G
