CA3102M Datasheet

  • CA3102M

  • Dual High Frequency Differential Amplifier For Low Power App...

  • 11頁

  • INTERSIL   INTERSIL

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

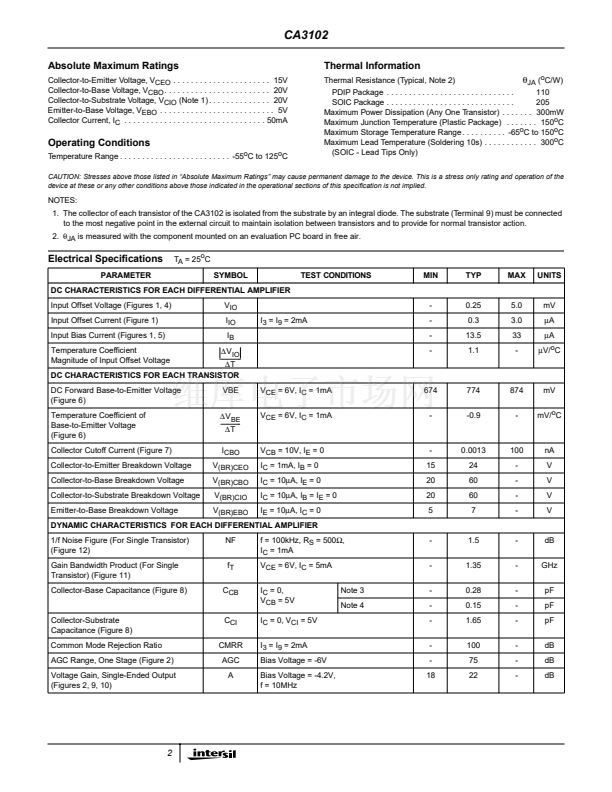

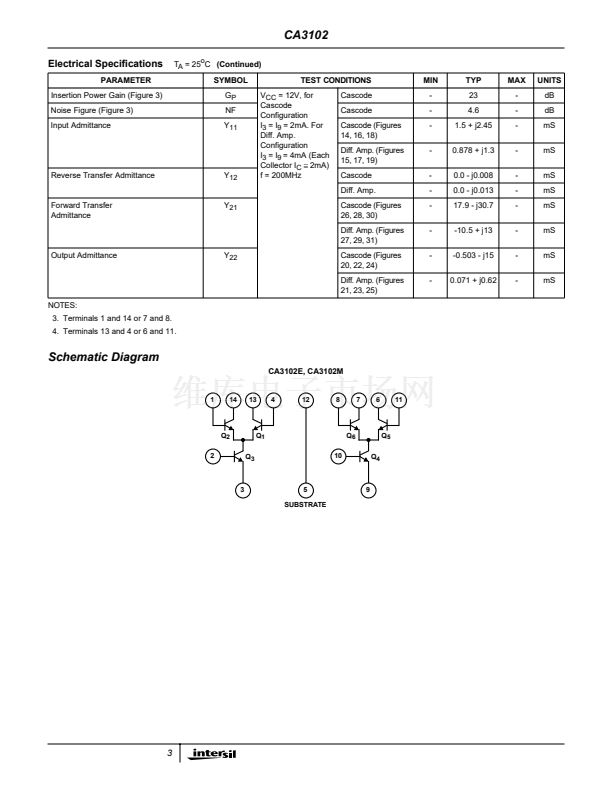

CA3102
Data Sheet
November 1999
File Number
611.6
Dual High Frequency Differential Ampli鏗乪r
For Low Power Applications Up to
500MHz
The CA3102 consists of two independent differential
ampli鏗乪rs with associated constant current transistors on a
common monolithic substrate. The six transistors which
comprise the ampli鏗乪rs are general purpose devices which
exhibit low 1/f noise and a value of f
T
in excess of 1GHz.
These features make the CA3102 useful from DC to
500MHz. Bias and load resistors have been omitted to
provide maximum application 鏗俥xibility.
The monolithic construction of the CA3102 provides close
electrical and thermal matching of the ampli鏗乪rs. This
feature makes this device particularly useful in dual channel
applications where matched performance of the two
channels is required.
The CA3102 has a separate substrate connection for greater
design 鏗俥xibility.
Features
鈥?Power Gain 23dB (Typ). . . . . . . . . . . . . . . . . . . . . 200MHz
鈥?Noise Figure 4.6dB (Typ) . . . . . . . . . . . . . . . . . . . 200MHz
鈥?Two Differential Ampli鏗乪rs on a Common Substrate
鈥?Independently Accessible Inputs and Outputs
鈥?Full Military Temperature Range . . . . . . . -55
o
C to 125
o
C
Applications
鈥?VHF Ampli鏗乪rs
鈥?VHF Mixers
鈥?Multifunction Combinations - RF/Mixer/Oscillator;
Converter/IF
鈥?IF Ampli鏗乪rs (Differential and/or Cascode)
鈥?Product Detectors
鈥?Doubly Balanced Modulators and Demodulators
鈥?Balanced Quadrature Detectors
Ordering Information
PART NUMBER
(BRAND)
CA3102E
CA3102M
(3102)
TEMP.
RANGE (
o
C)
-55 to 125
-55 to 125
PACKAGE
14 Ld PDIP
14 Ld SOIC
PKG.
NO.
E14.3
M14.15
鈥?Cascade Limiters
鈥?Synchronous Detectors
鈥?Balanced Mixers
鈥?Synthesizers
鈥?Balanced (Push-Pull) Cascode Ampli鏗乪rs
鈥?Sense Ampli鏗乪rs
Pinout
CA3102
(PDIP, SOIC)
TOP VIEW
1
2
3
4
SUBSTRATE 5
6
7
14
13
12 SUBSTRATE
11
10
9
8
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 407-727-9207
|
Copyright
漏
Intersil Corporation 1999

CA3102M 產品屬性

  • 50

  • 集成電路 (IC)

  • Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps

  • -

  • 差分

  • 2

  • -

  • -

  • 1.35GHz

  • -

  • 13.5µA

  • 250µV

  • -

  • -

  • -

  • -55°C ~ 125°C

  • 表面貼裝

  • 14-SOIC（0.154"，3.90mm 寬）

  • 14-SOIC

  • 管件
