C8051T604-GM Datasheet

  • C8051T604-GM

  • Mixed Signal OTP EPROM MCU Family

  • 1652.07KB

  • 168頁

  • SILABS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

C8051T600/1/2/3/4/5
Mixed Signal OTP EPROM MCU Family
Analog Peripherals
-

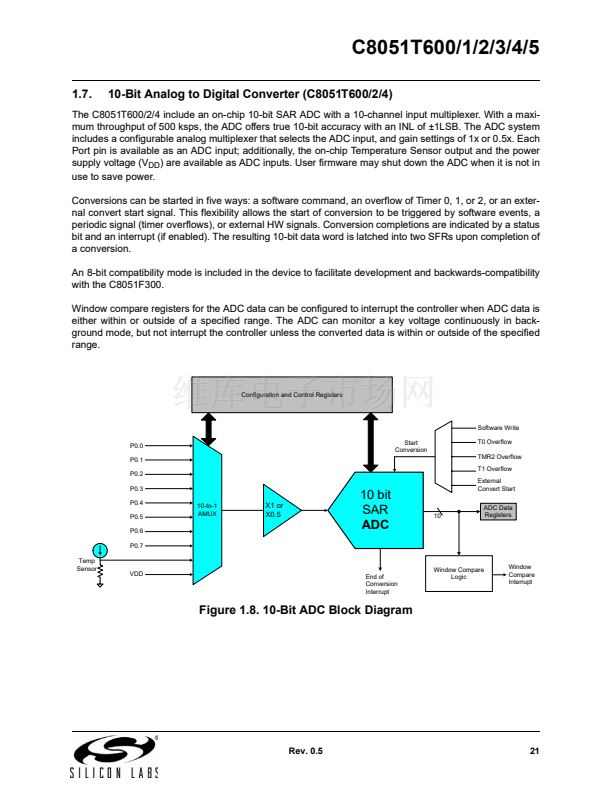

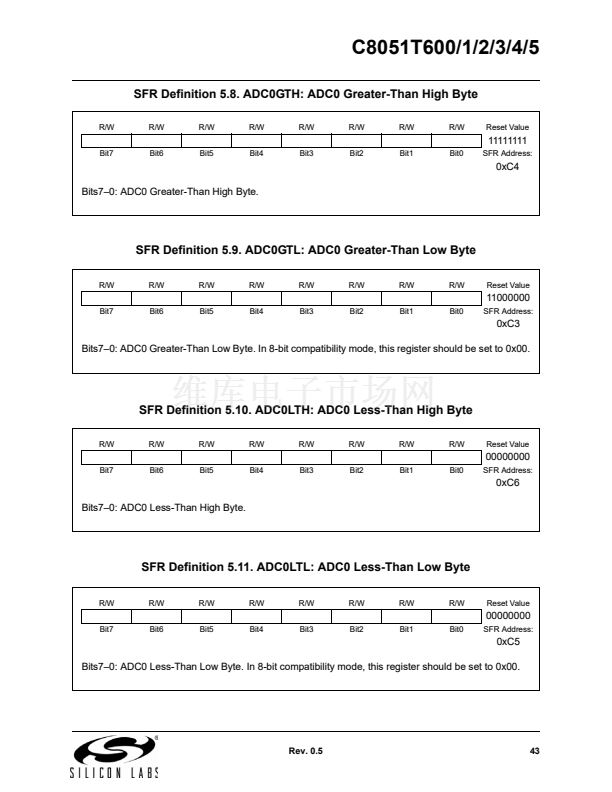

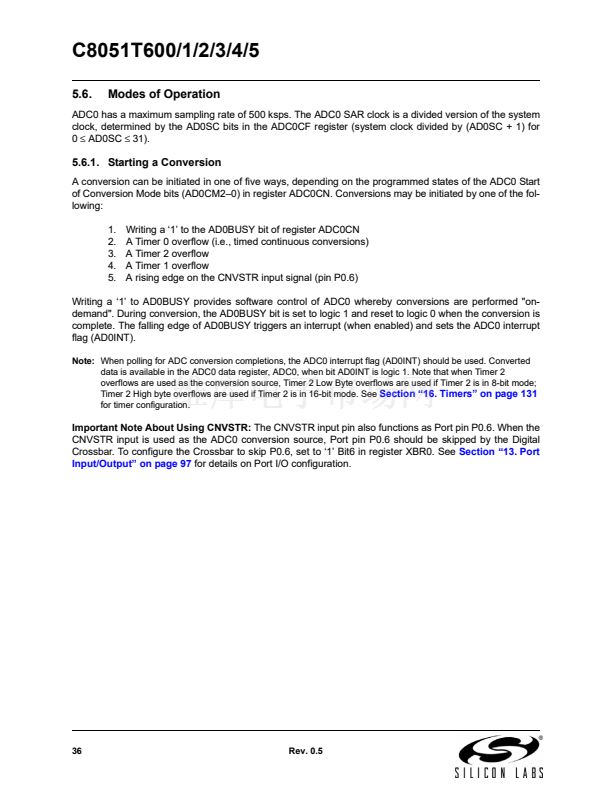

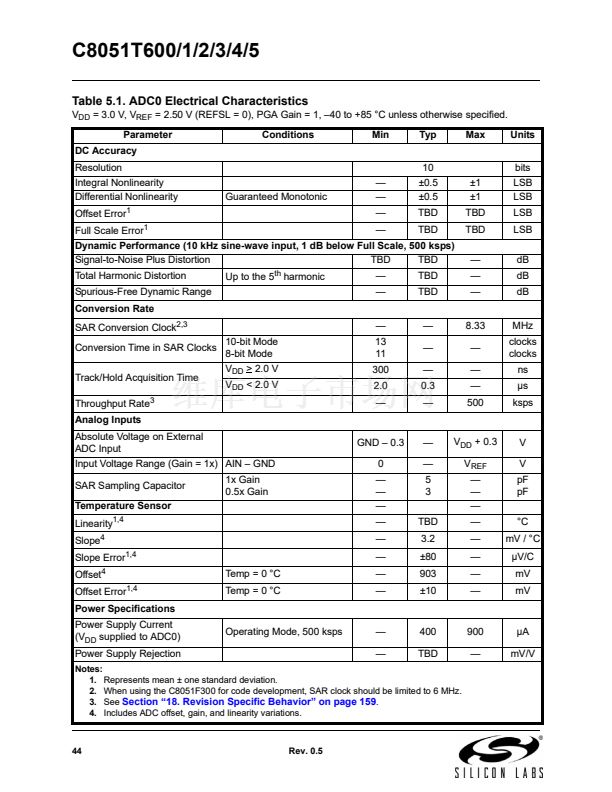

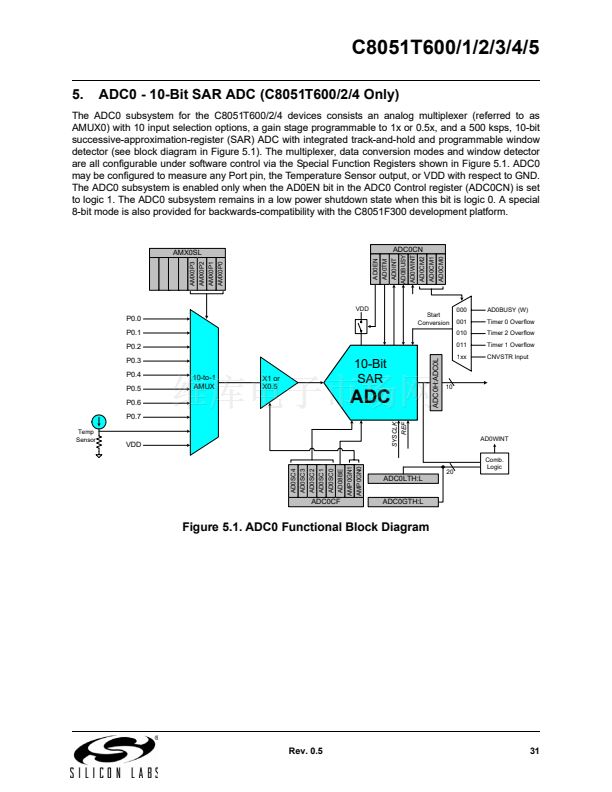

10-Bit Analog to Digital Converter
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>

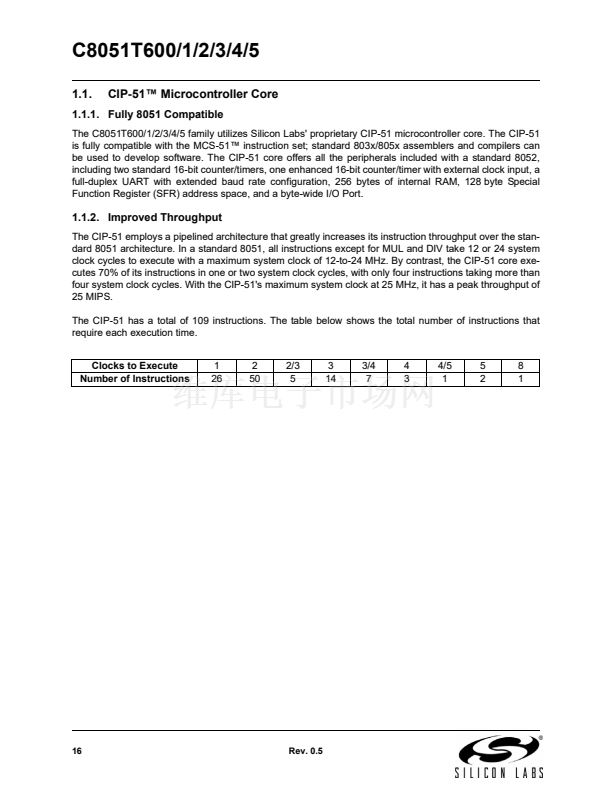

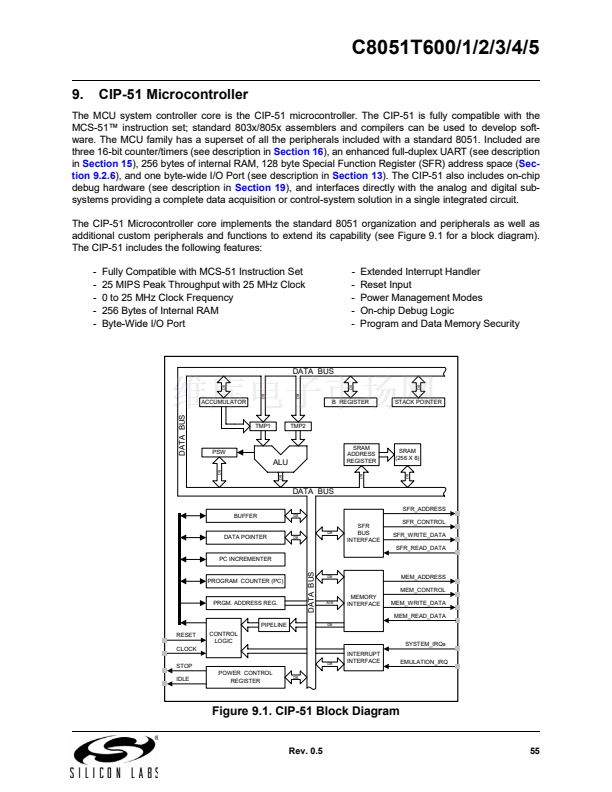

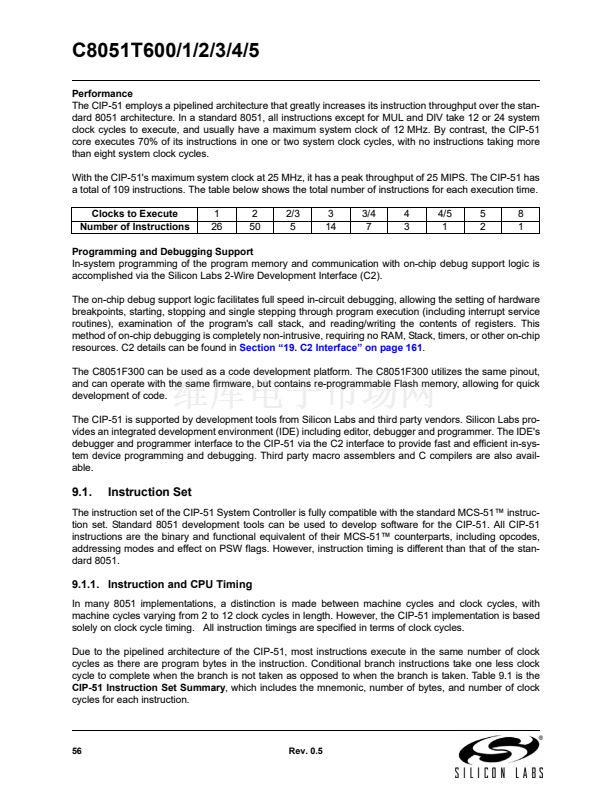

High Speed 8051 碌C Core
-
Pipe-lined instruction architecture; executes 70% of
-
-
Digital Peripherals
-

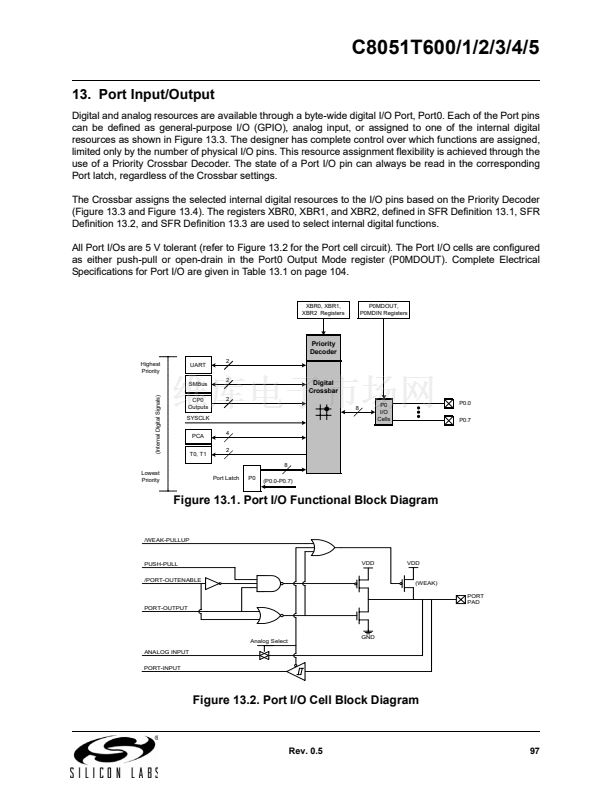

8 port I/O; All 5 V tolerant with high sink current
-

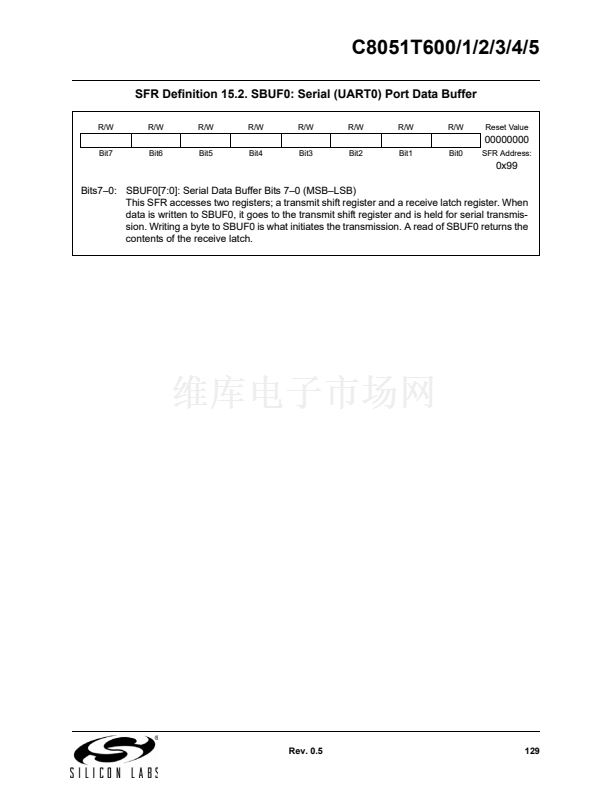

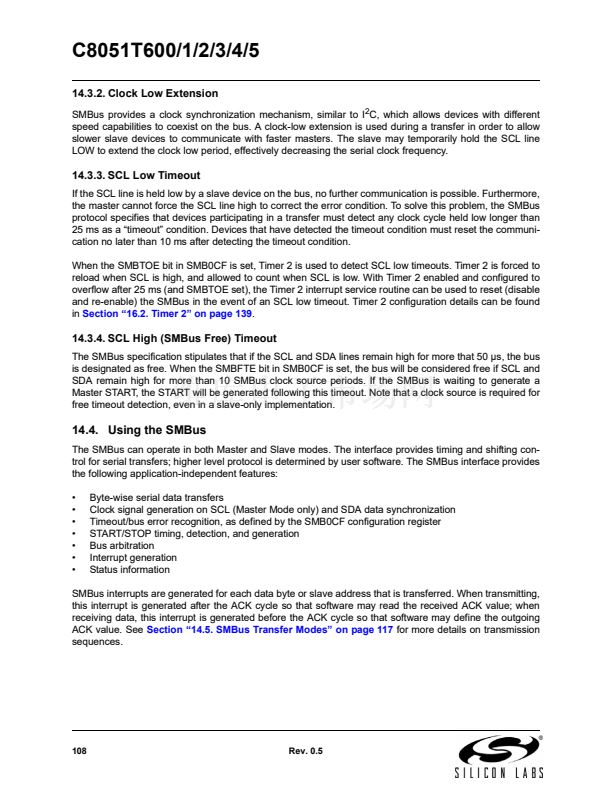

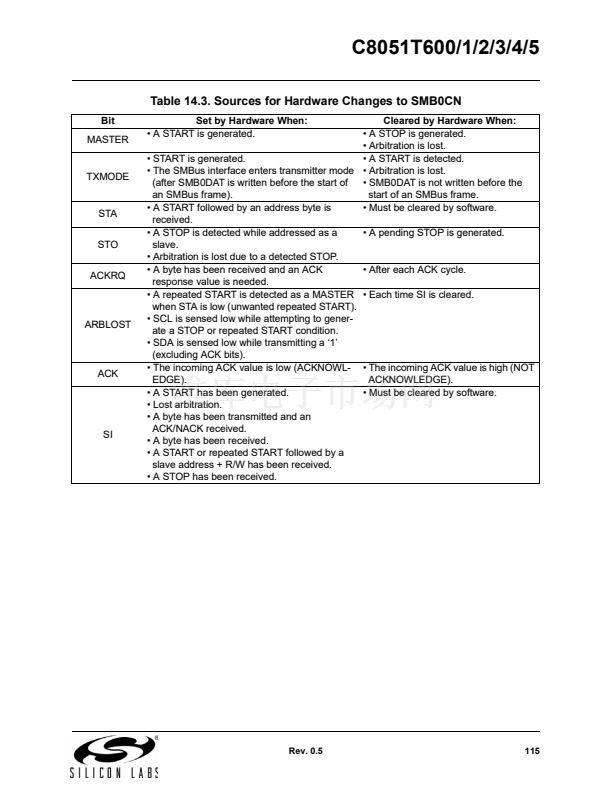

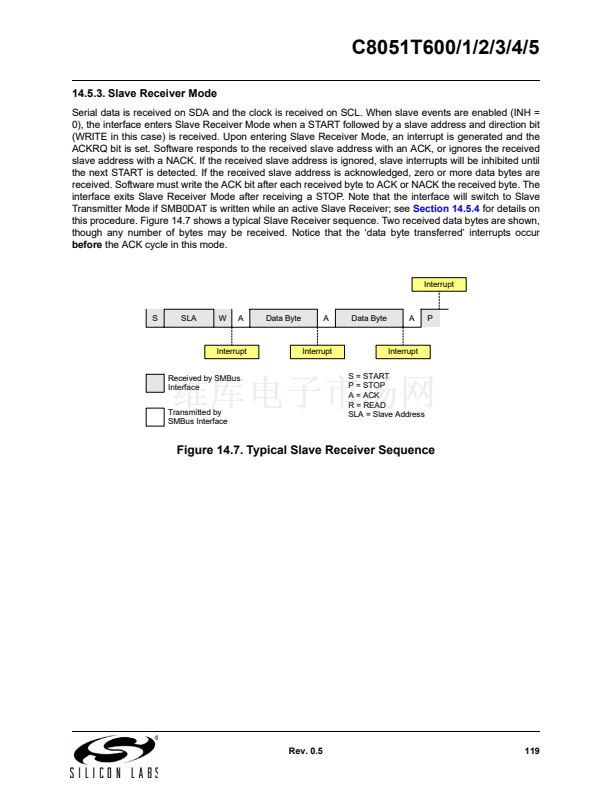

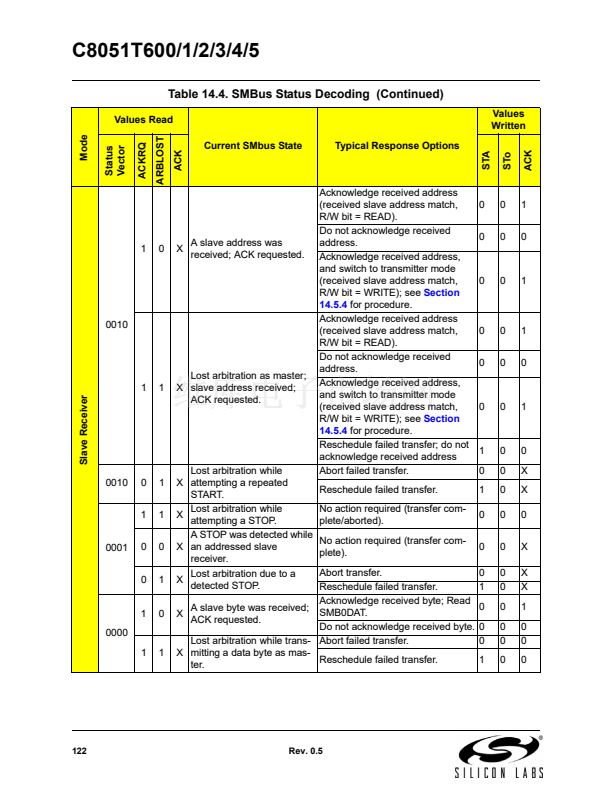

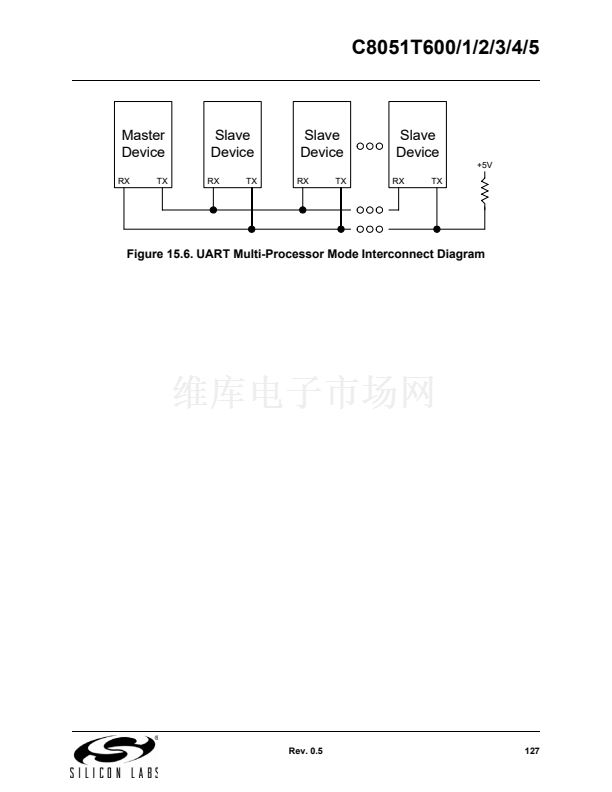

Hardware enhanced UART and SMBus鈩?serial
-
-
ports

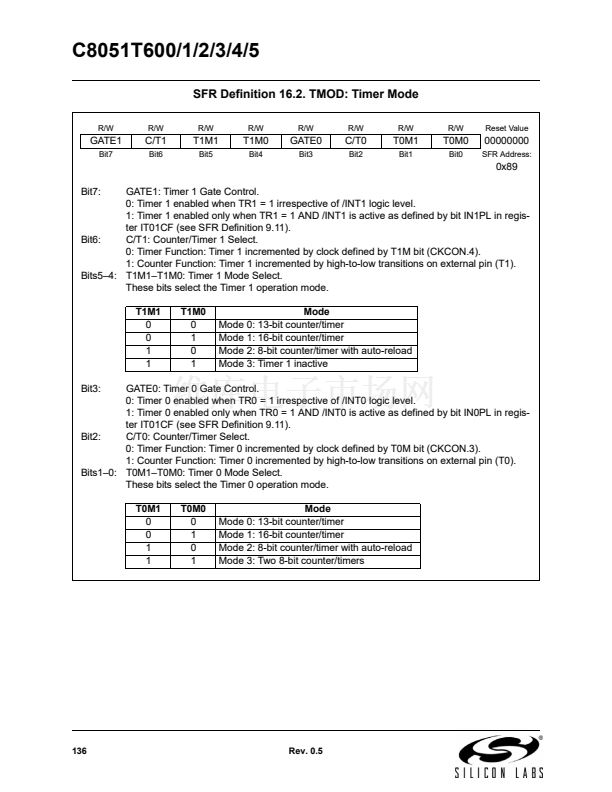

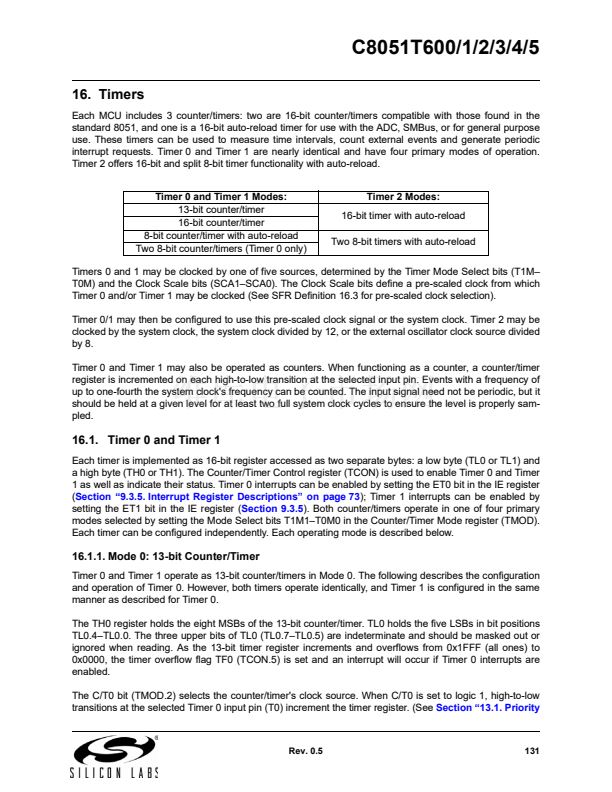

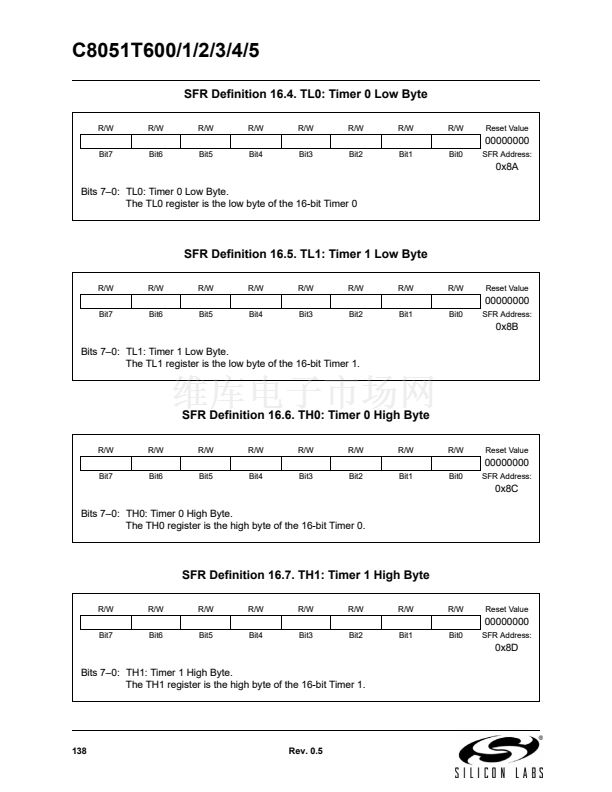

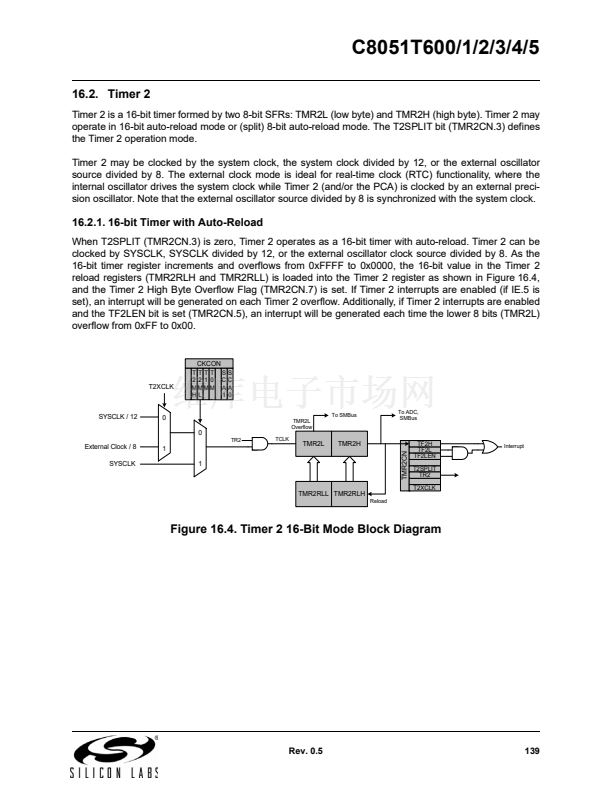

Three general purpose 16-bit counter/timers

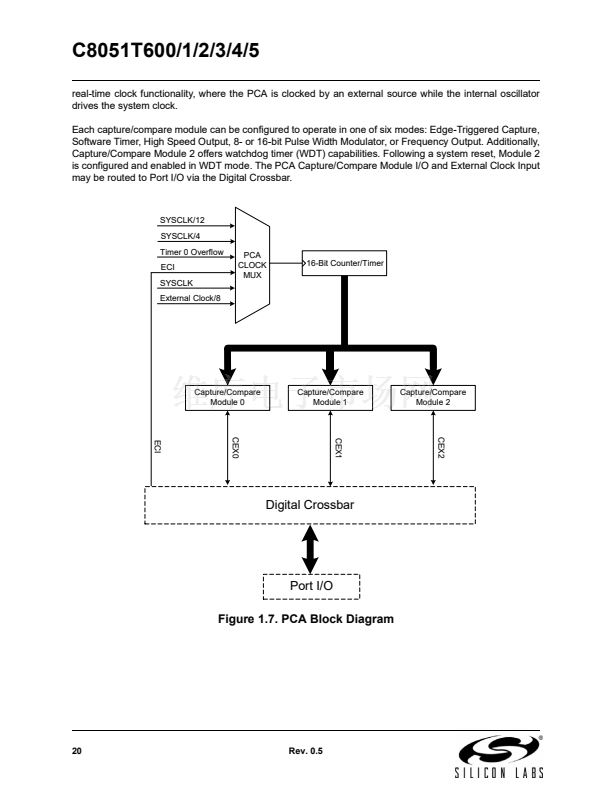

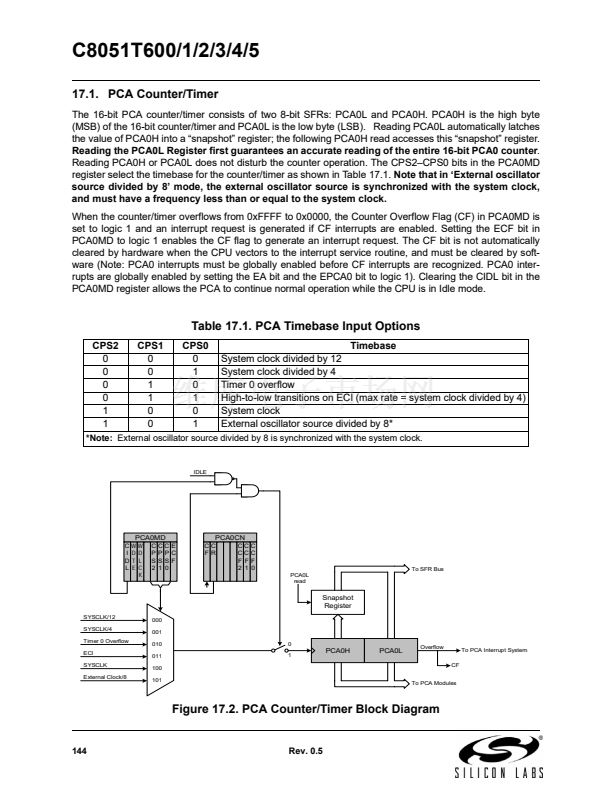

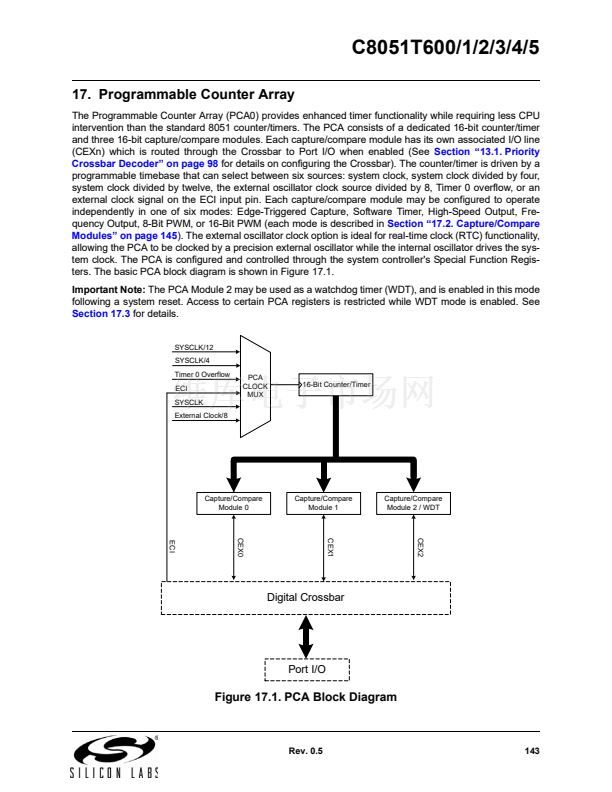

16-Bit programmable counter array (PCA) with three
capture/compare modules
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Up to 500 ksps

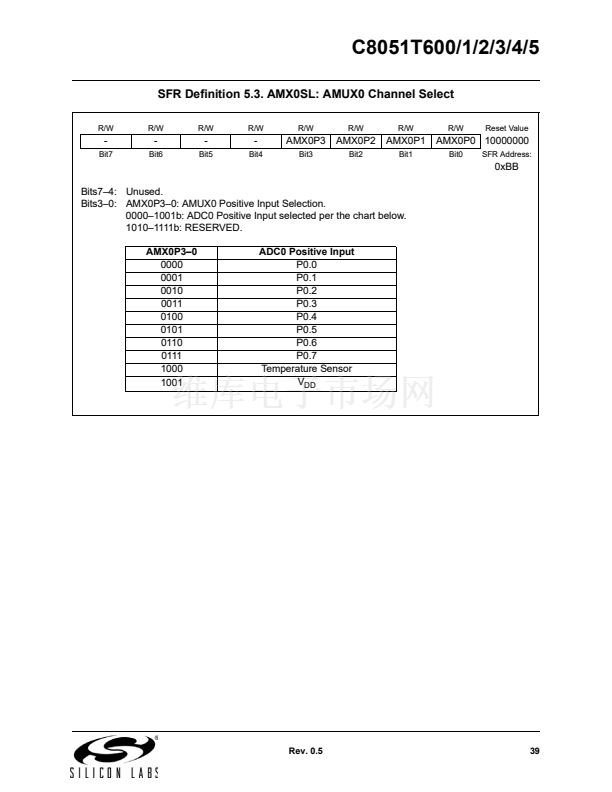

Up to 8 external inputs
V
REF
from external pin, V
DD
, or internal regulator

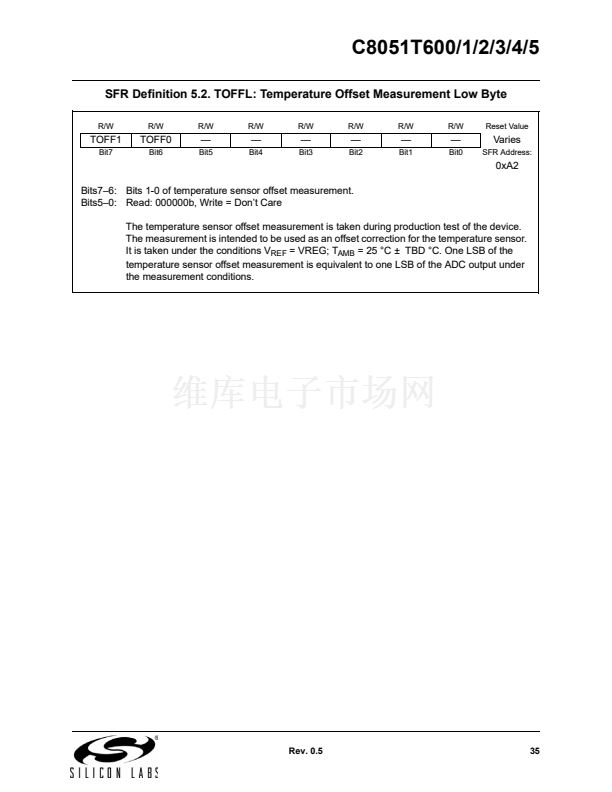

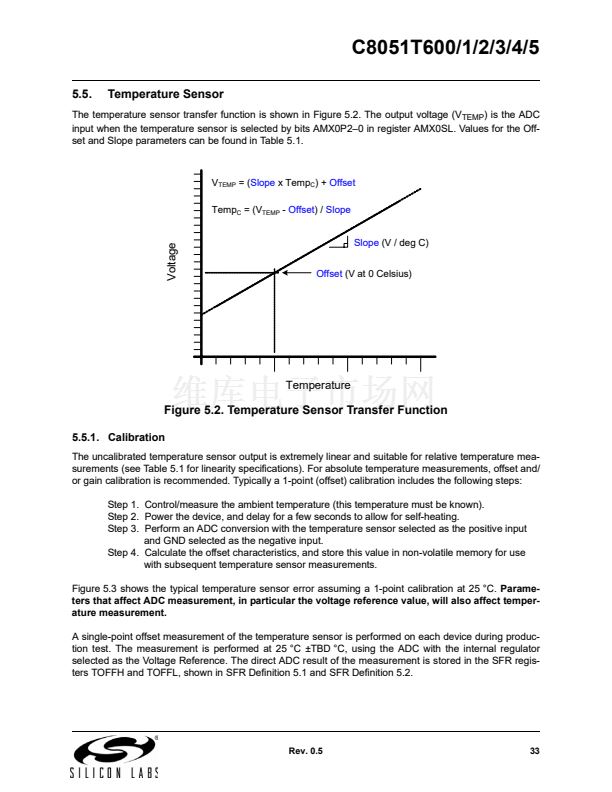

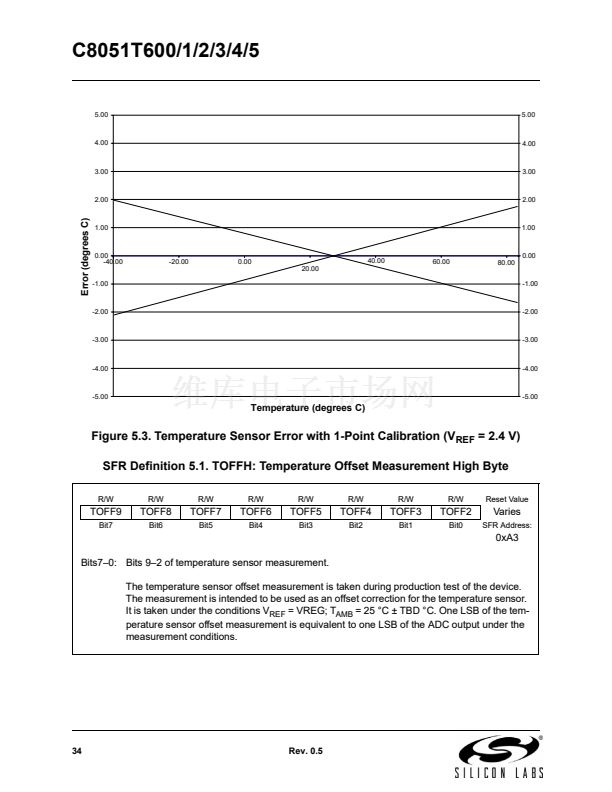

Built-in temperature sensor
External conversion start input option

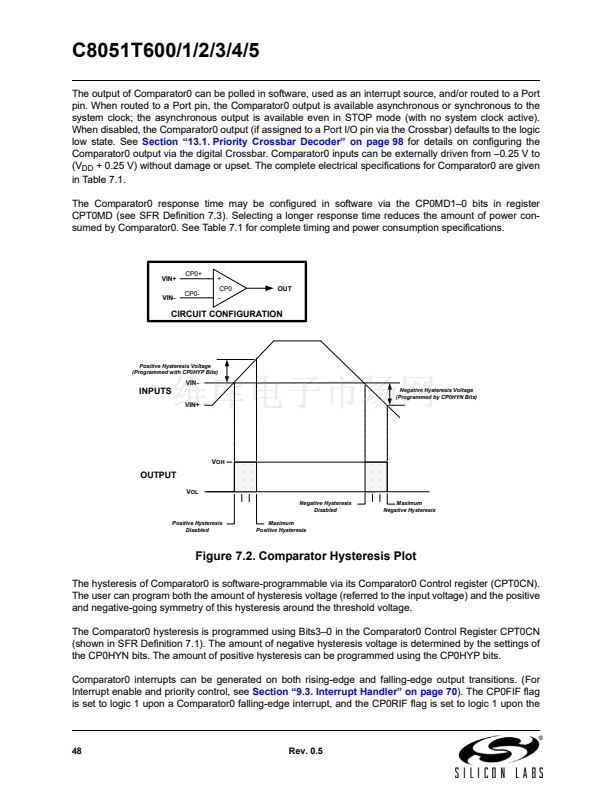

Programmable hysteresis and response time
Configurable as interrupt or reset source
Low current (< 0.5 碌A)
instructions in 1 or 2 system clocks
25 MIPS peak throughput with 25 MHz clock

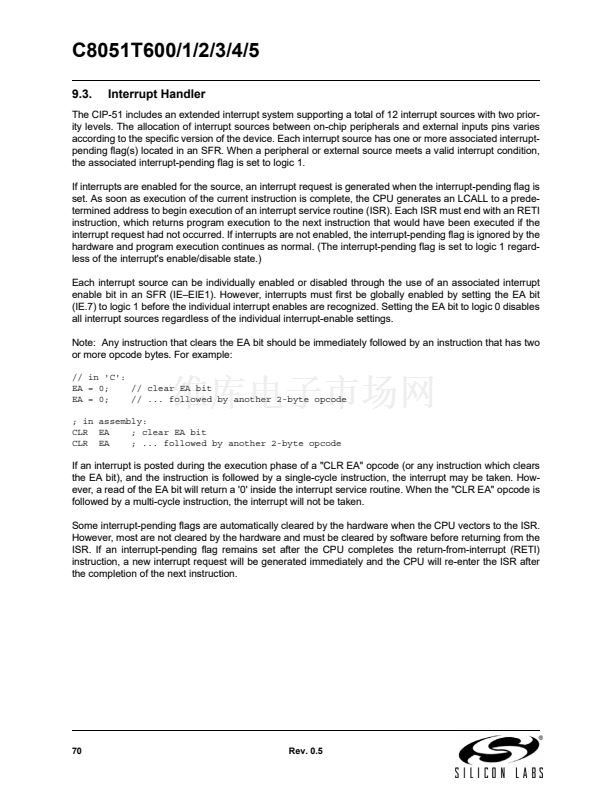

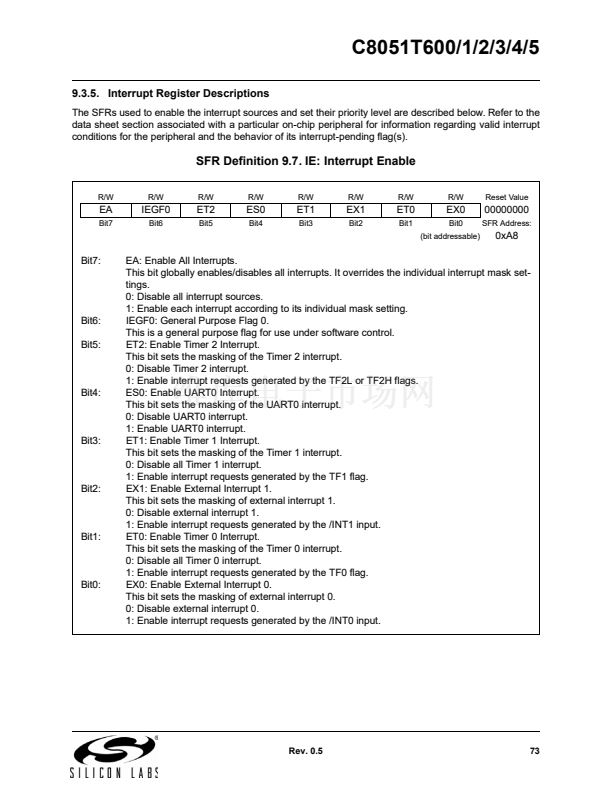

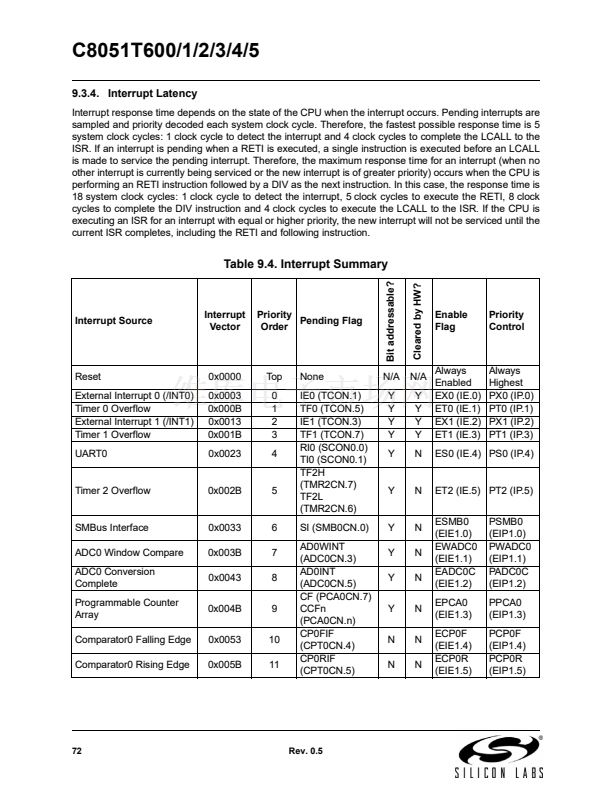

Expanded interrupt handler
-

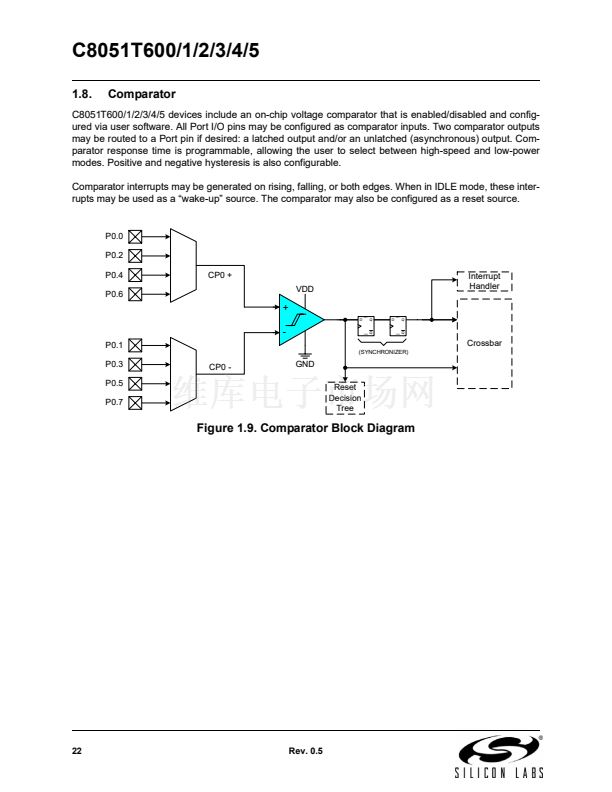

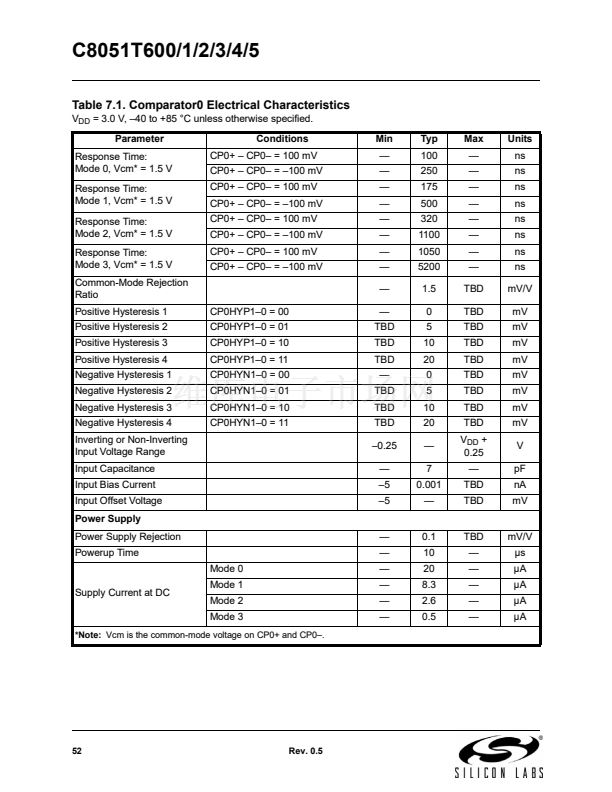

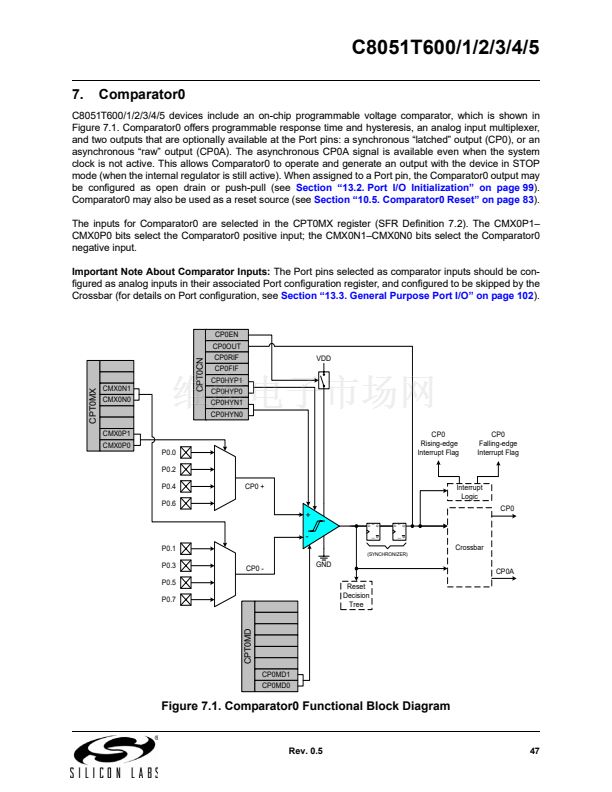

Comparator
鈥?/div>
鈥?/div>
鈥?/div>

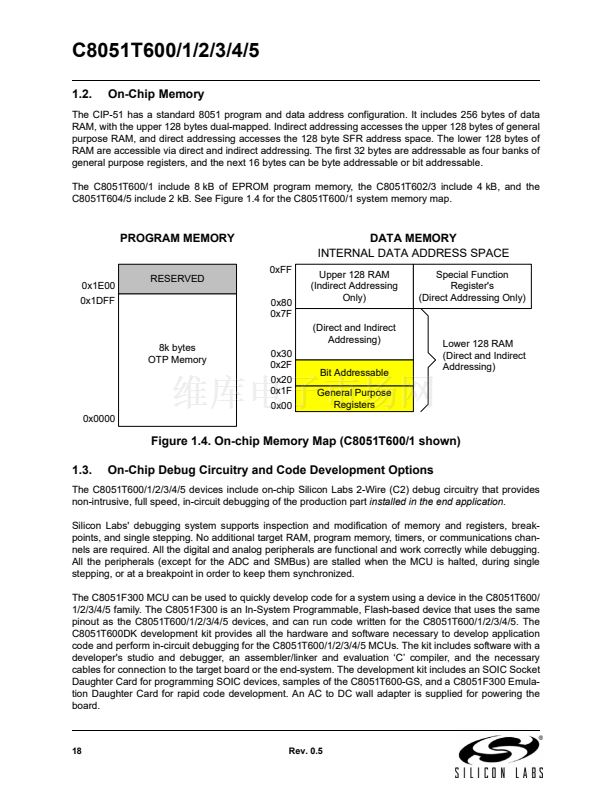

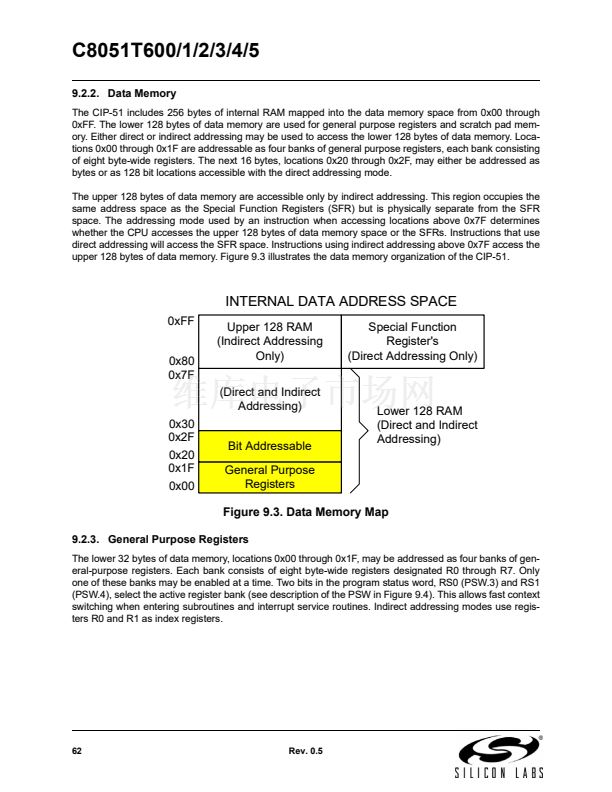

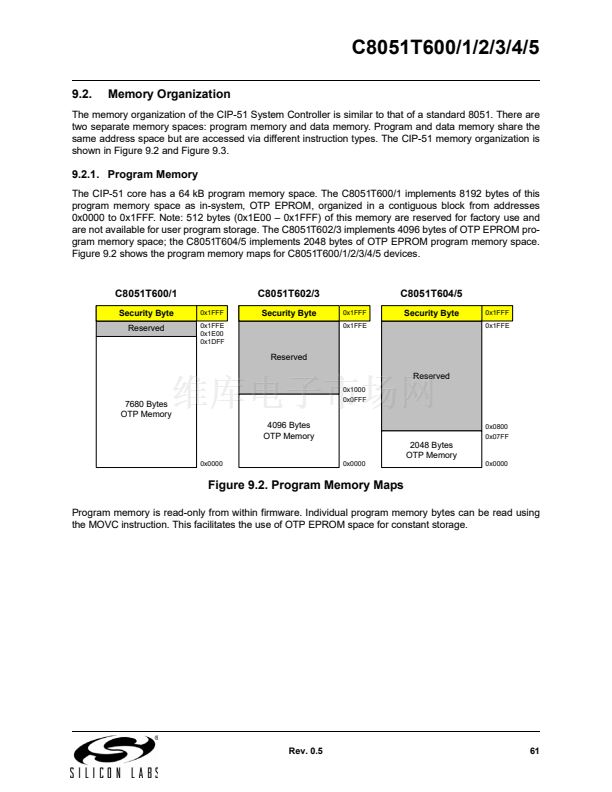

Memory
-
256 bytes internal data RAM
-

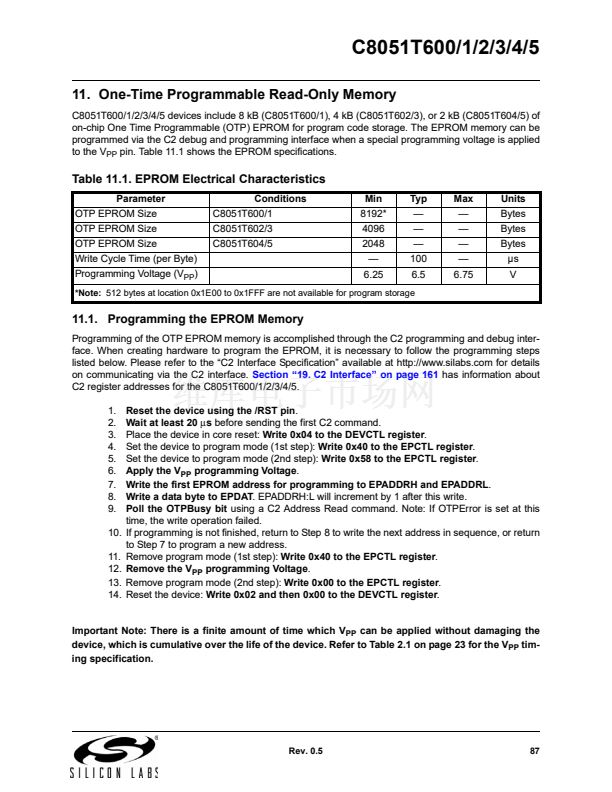

8, 4 or 2 kB one time programmable code memory

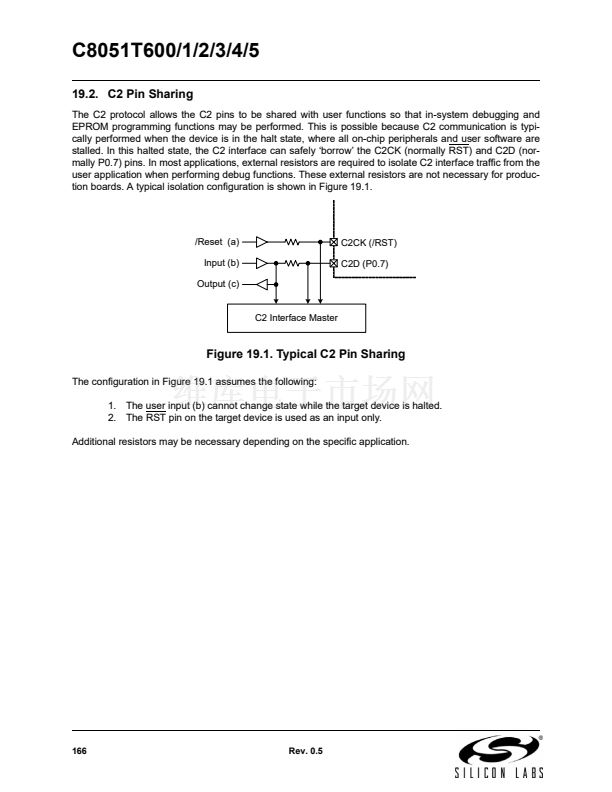

On-Chip Debug
-
C8051F300 can be used as in-system code devel-
-
opment platform; complete development kit avail-
able
On-chip debug circuitry facilitates full speed,
non-intrusive in-system debug

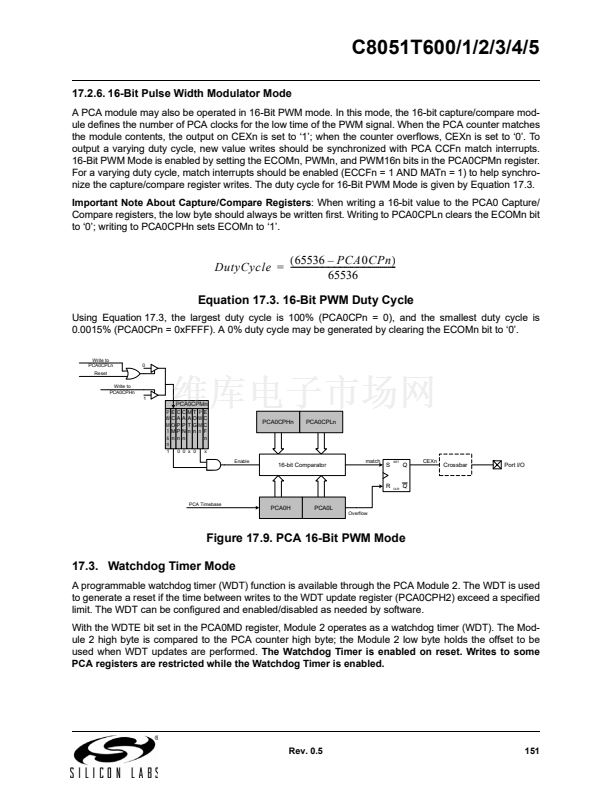

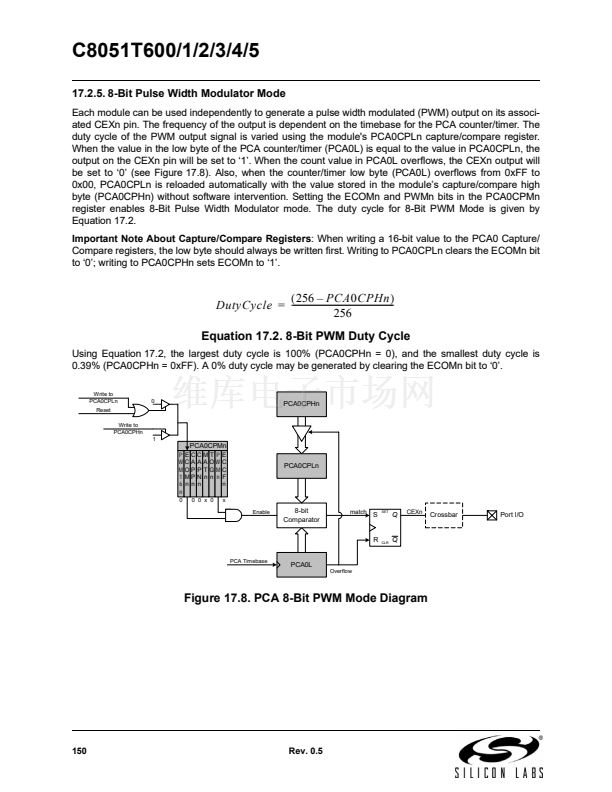

8 or 16-bit PWM

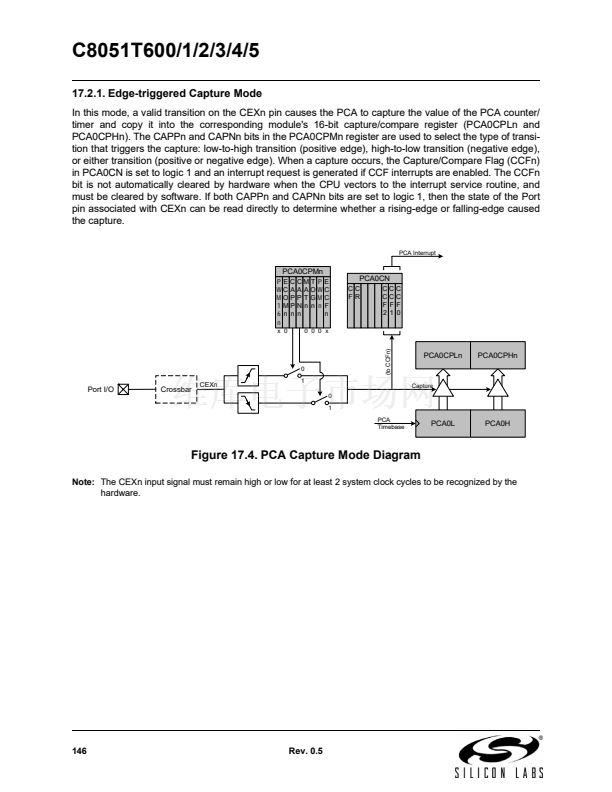

Rising / falling edge capture

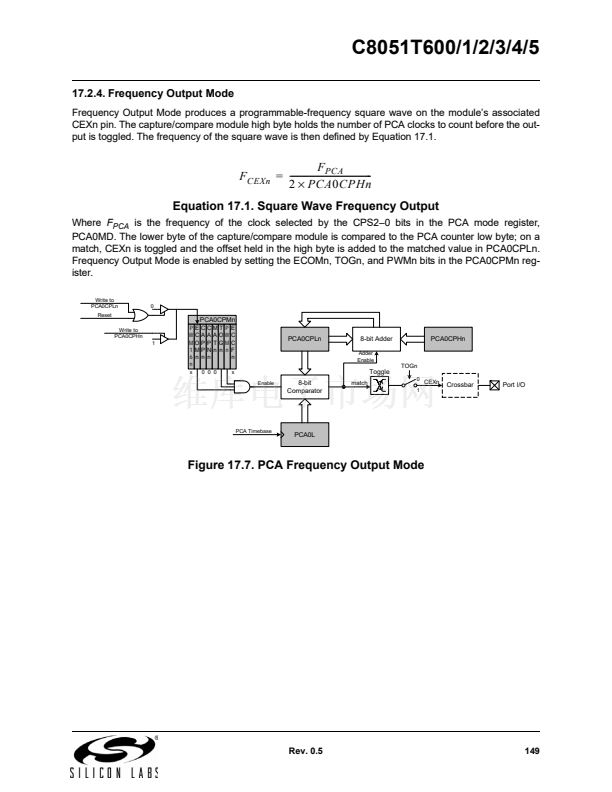

Frequency output

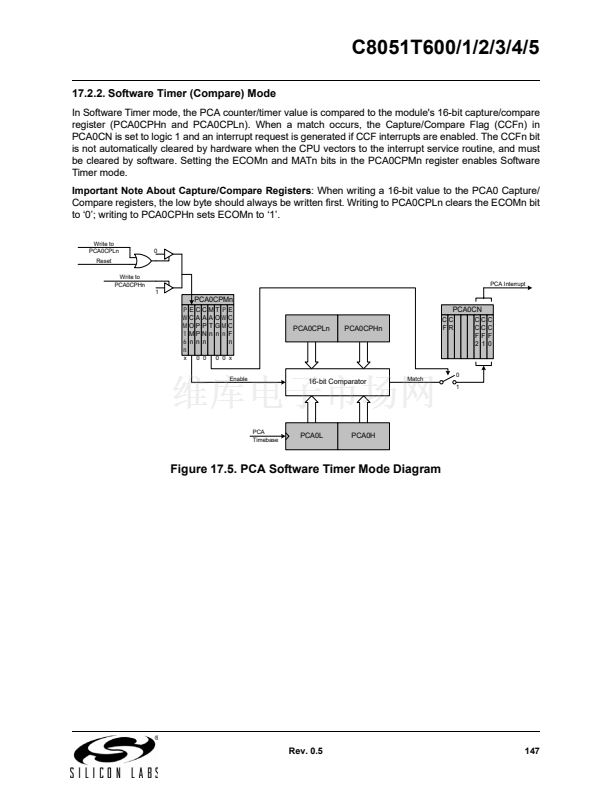

Software timer

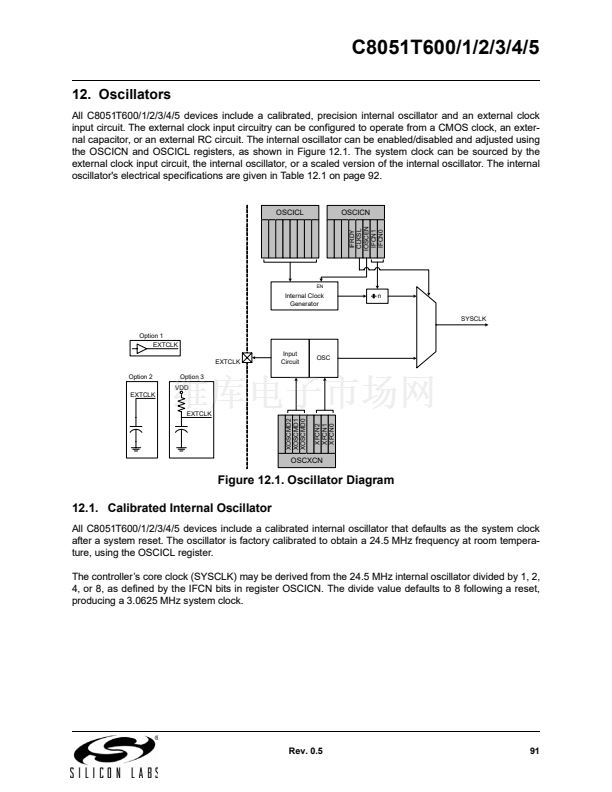

Clock Sources
-
Internal oscillator: 24.5 MHz with 鹵2% accuracy
-
-
supports UART operation

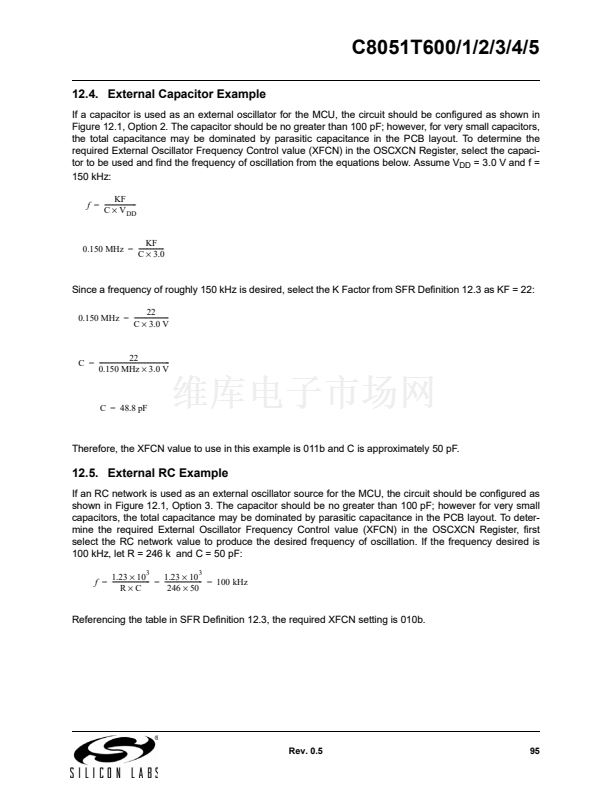

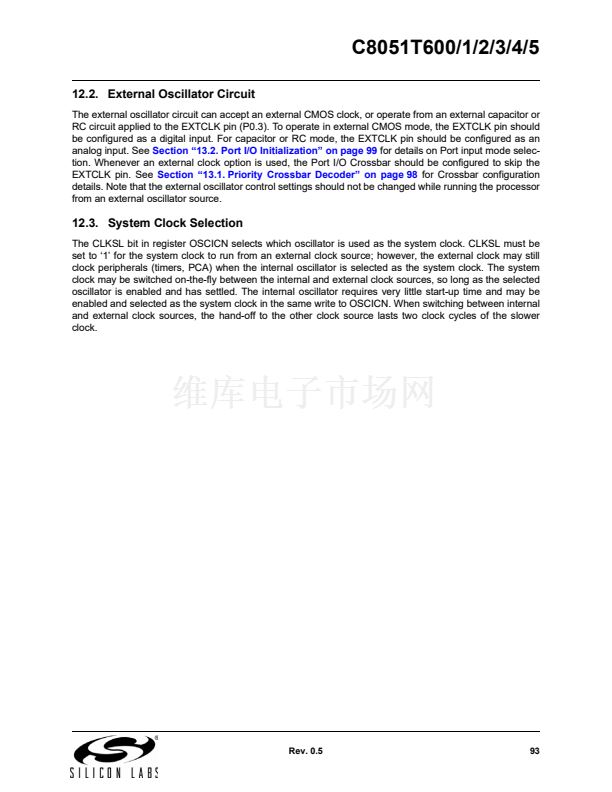

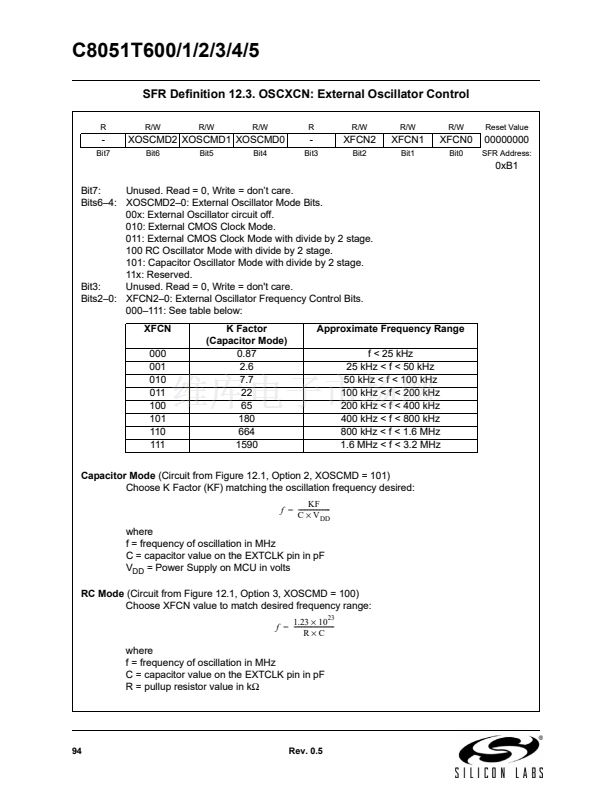

External oscillator: RC, Single Capacitor, or CMOS
Clock Modes
Can switch between clock sources on-the-fly; useful

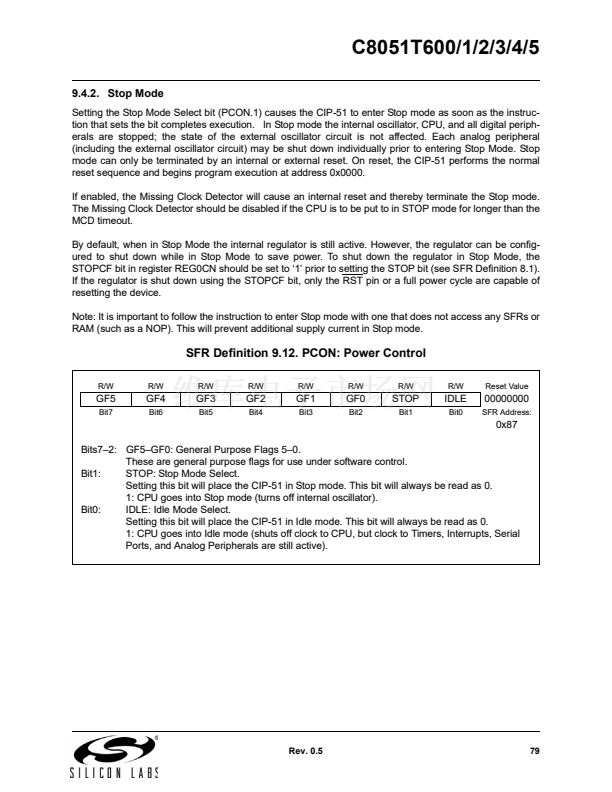

in power saving modes
Supply Voltage 1.8 to 3.6 V
-
On-chip LDO regulator for core supply
-
Typical operating current: 5.0 mA @ 25 MHz
-
Typical stop mode current (regulator off): <0.1 碌A
-
Built-in brown-out detector
Temperature Range: 鈥?0 to +85 擄C

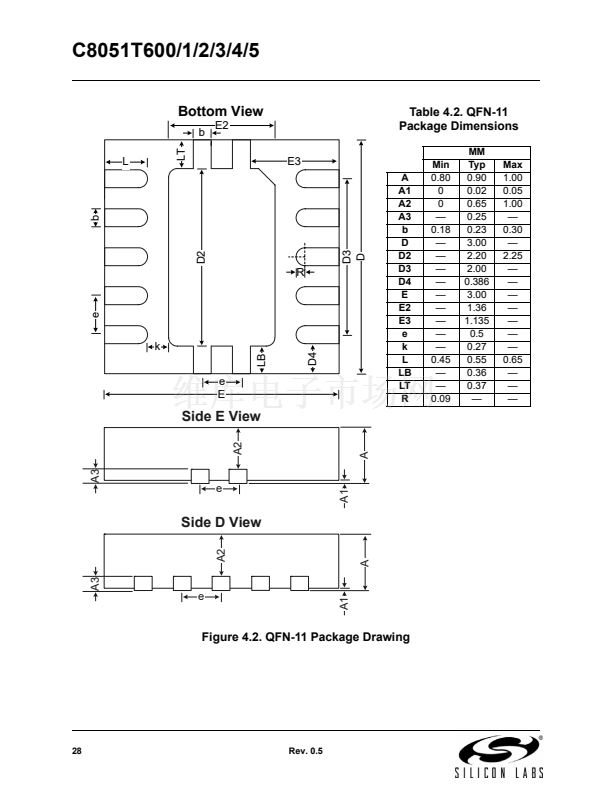

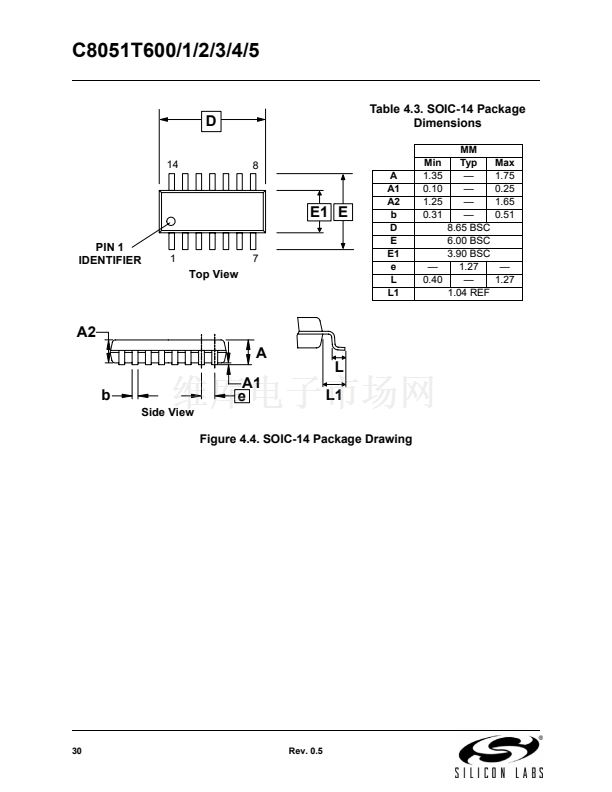

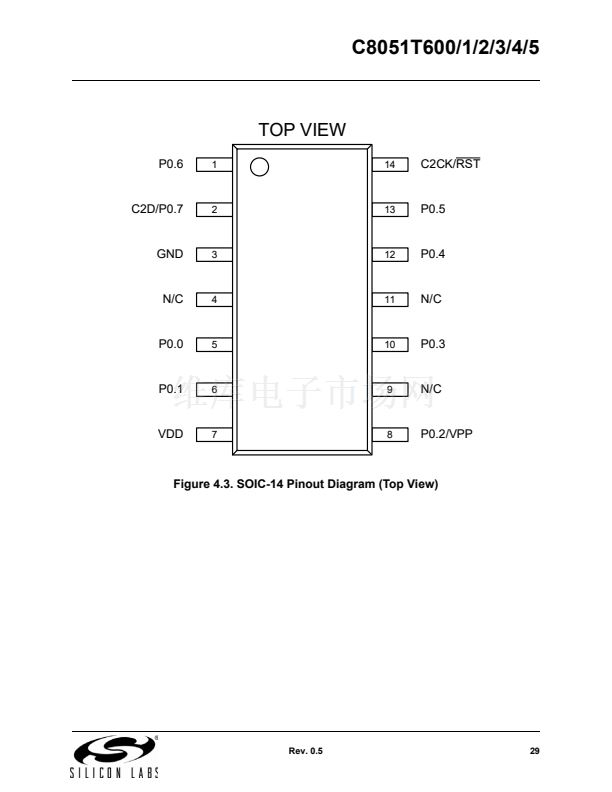

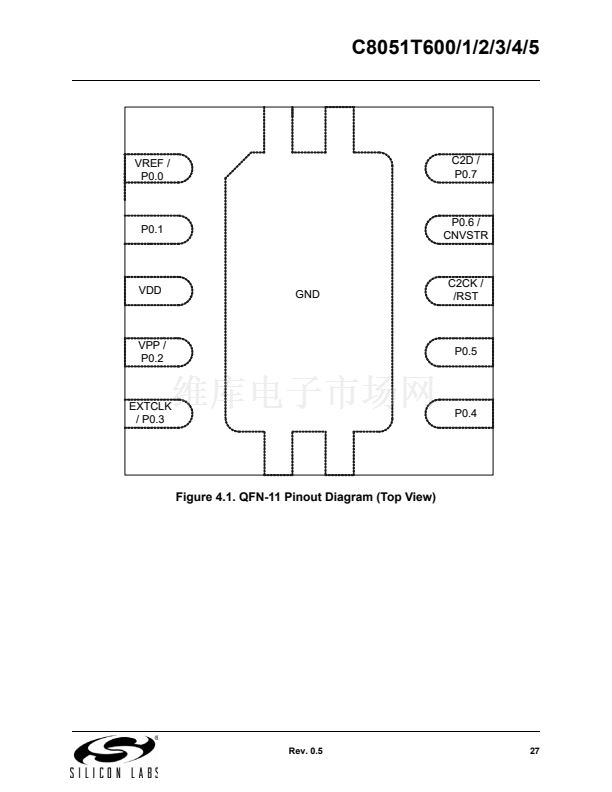

11-Pin QFN or 14-Pin SOIC Package
-
QFN Size = 3 x 3 mm

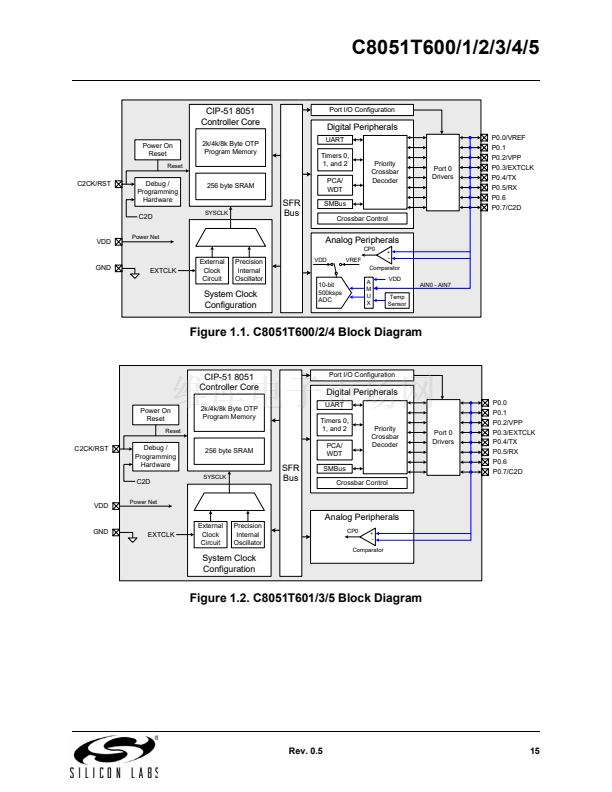

ANALOG
PERIPHERALS
A
M
U
X

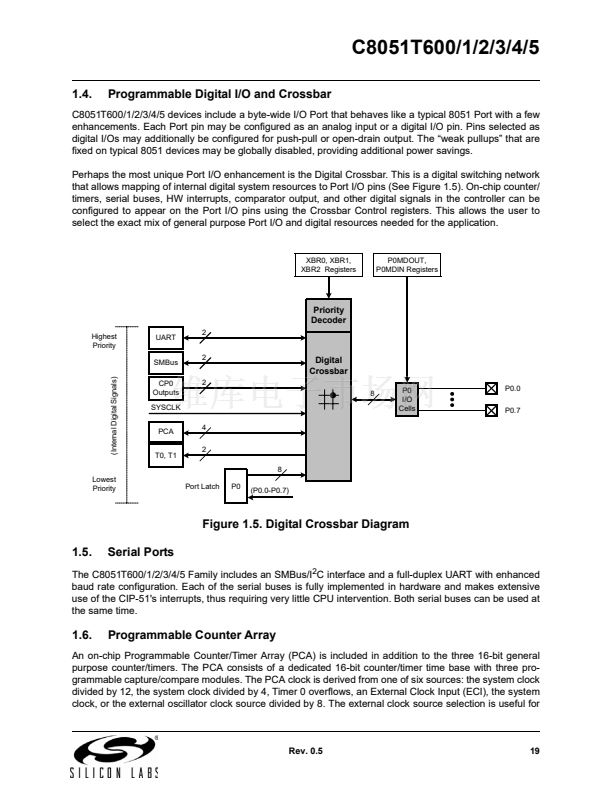

DIGITAL I/O

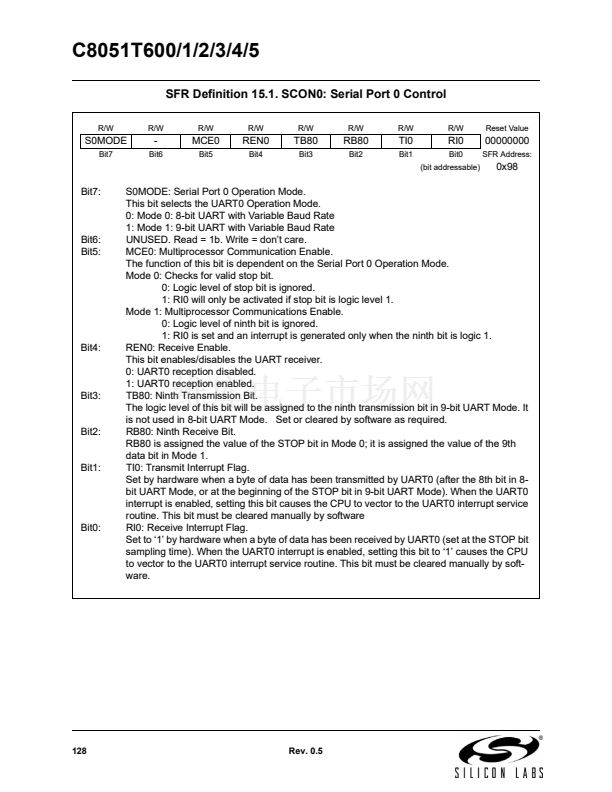

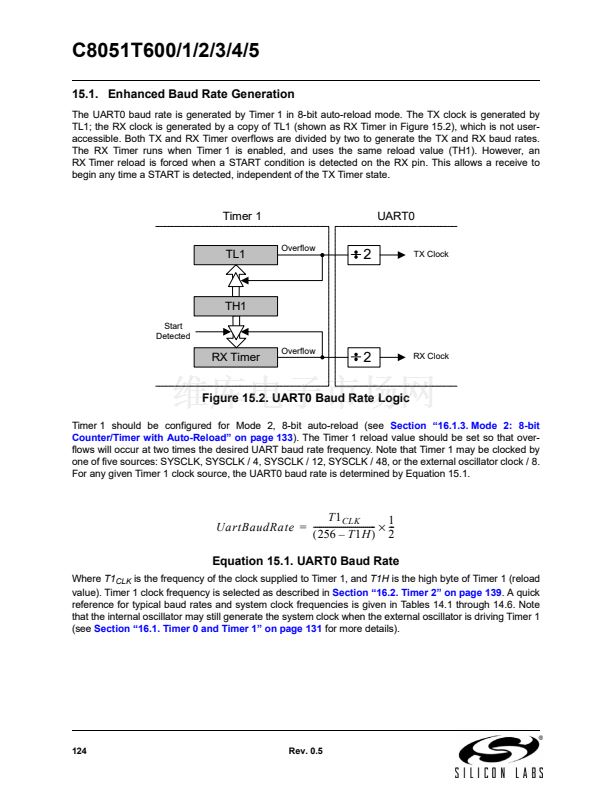

UART
CROSSBAR
SMBus
PCA
Timer 0
Timer 1
Timer 2
+
-
C8051T600/2/4
VOLTAGE
COMPARATOR
CALIBRATED PRECISION INTERNAL
OSCILLATOR
HIGH-SPEED CONTROLLER CORE
2/4/8 kB
OTP EPROM
12
INTERRUPTS
8051 CPU
(25 MIPS)
DEBUG
CIRCUITRY
256 B SRAM
POR WDT
Rev. 0.5 2/07
Copyright 漏 2007 by Silicon Laboratories
I/O Port
10-bit
500 ksps
ADC
TEMP
SENSOR
C8051T60x
This information applies to a product under development. Its characteristics and specifications are subject to change without notice.

C8051T604-GM 產品屬性

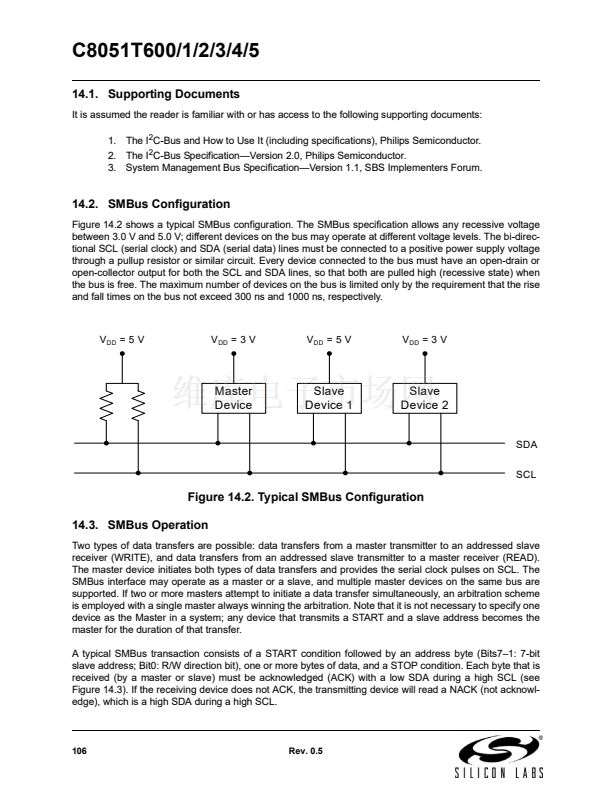

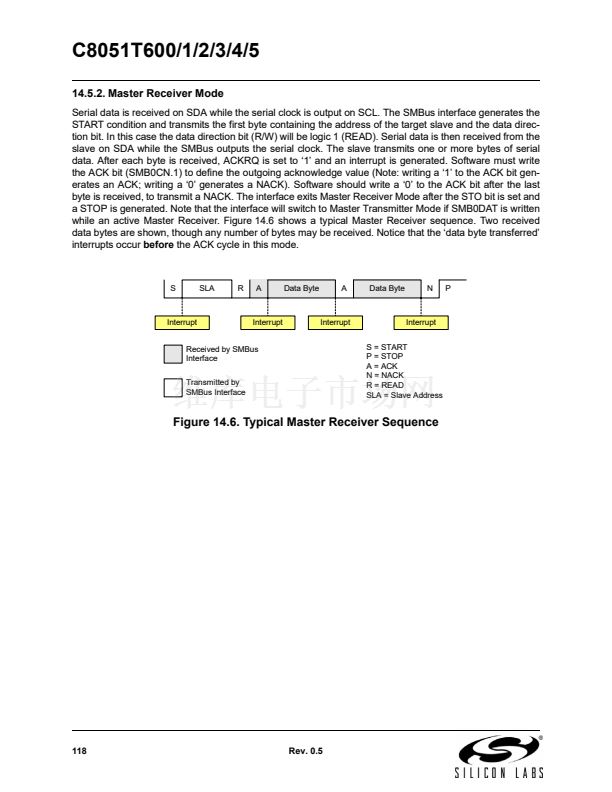

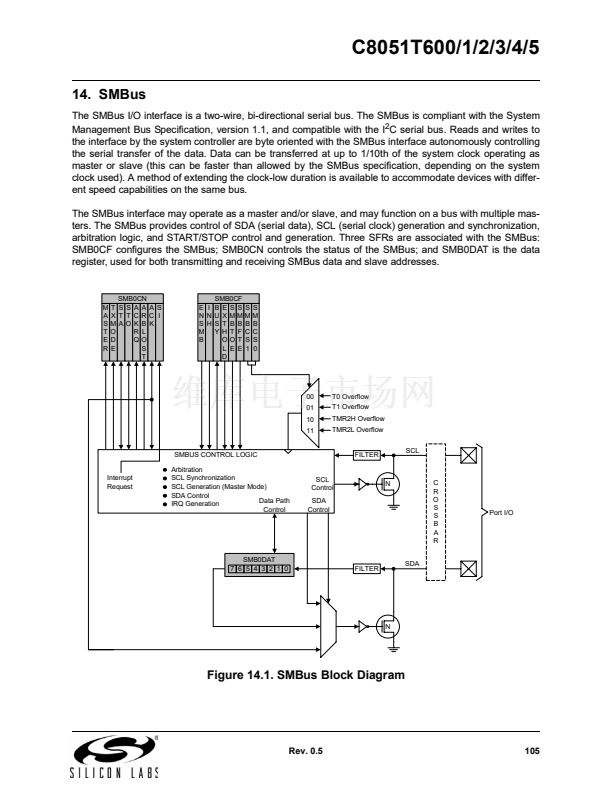

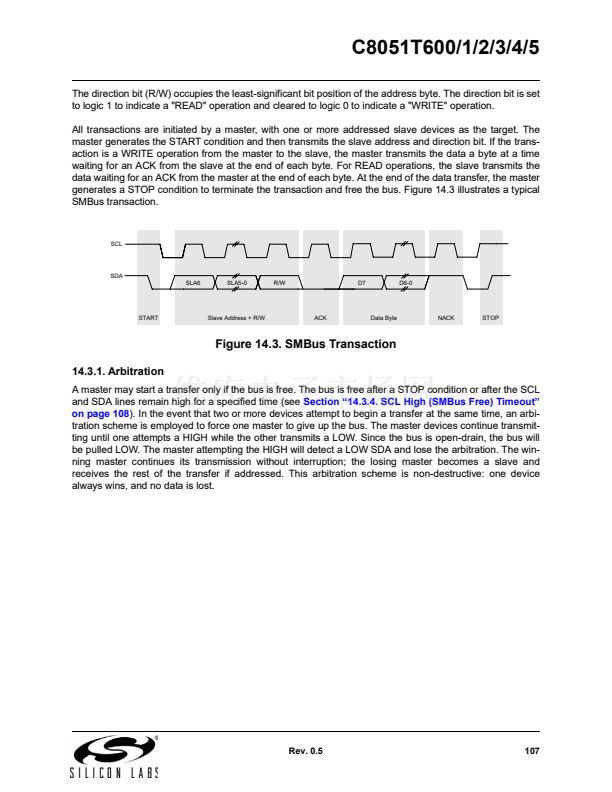

  • Serial Communication Overview

  • 122

  • 集成電路 (IC)

  • 嵌入式 - 微控制器，

  • C8051T60x

  • 8051

  • 8-位

  • 25MHz

  • SMBus（2 線/I²C），UART/USART

  • POR，PWM，溫度傳感器，WDT

  • 8

  • 2KB（2K x 8）

  • OTP

  • -

  • 256 x 8

  • 1.8 V ~ 3.6 V

  • A/D 8x10b

  • 內部

  • -40°C ~ 85°C

  • 10-VFDFN 裸露焊盤

  • 管件

  • 336-1404-ND - KIT DEV FOR C8051T60X MCU'S

  • 336-1658-5
