BZV58C22 Datasheet

  • BZV58C22

  • Zener Diodes

  • 3頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

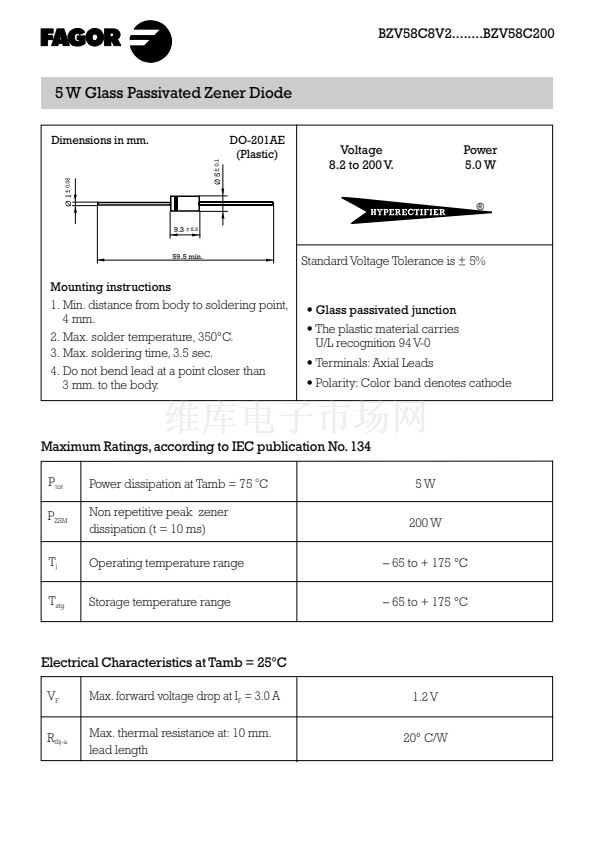

BZV58C8V2........BZV58C200
5 W Glass Passivated Zener Diode
Dimensions in mm.
DO-201AE
(Plastic)
Voltage
8.2 to 200 V.
Power
5.0 W
廬
9.3
鹵 0.3
59.5 min.
Standard Voltage Tolerance is 鹵 5%
Mounting instructions
1. Min. distance from body to soldering point,
4 mm.
2. Max. solder temperature, 350擄C.
3. Max. soldering time, 3.5 sec.
4. Do not bend lead at a point closer than
3 mm. to the body.
鈥?/div>
Glass passivated junction
鈥?/div>
The plastic material carries
U/L recognition 94 V-0
鈥?/div>
Terminals: Axial Leads
鈥?/div>
Polarity: Color band denotes cathode
Maximum Ratings, according to IEC publication No. 134
P
tot
P
ZSM
Power dissipation at Tamb = 75
o
C
Non repetitive peak zener
dissipation (t = 10 ms)
Operating temperature range
Storage temperature range
5W
200 W
鈥?65 to + 175 擄C
鈥?65 to + 175 擄C
T
j
T
stg
Electrical Characteristics at Tamb = 25擄C
V
F
R
thj-a
Max. forward voltage drop at I
F
= 3.0 A
Max. thermal resistance at: 10 mm.
lead length
1.2 V
20擄 C/W
